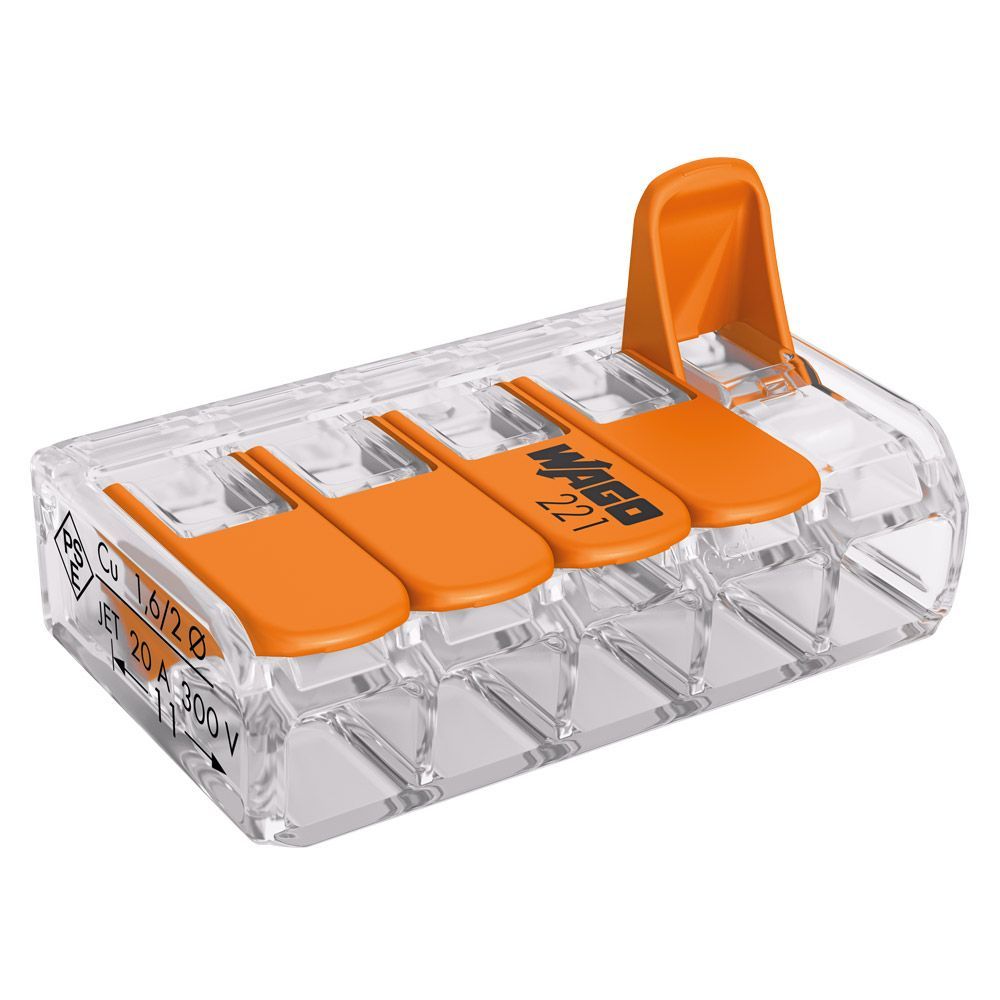

WAGO 221 electrical connectors
WAGO 221 electrical connectors
Pick up available, usually ready for collection in 2 to 3 days
Couldn't load pickup availability
Offers fast, reliable, and tool-free wire connections for solid, stranded, and fine-stranded conductors up to 4 mm²
WAGO's 221 Series Splicing Connectors for all types of conductors set new standards. This new series is 40% smaller and even more user-friendly than its successful predecessor, the 222 Series.
Allows solid, stranded and fine-stranded conductors to be connected faster and more reliably, while conserving precious junction box space. This is made possible not only by their compact design, but also by their transparent housing, easier handling and two test ports.
Available in 2, 3 and 5 wire versions.
The Wago 221 is used to join circuits.
Suitable for 12V and mains 230V projects.
The 2-, 3- and 5-wire connectors accommodate fine-stranded conductors from 0.14 to 4 mm², as well as solid and stranded conductors from 0.2 to 4 mm² (24–12 AWG). They are therefore ideal for connecting different conductor sizes and types to each other. Tinned current bars ensure a permanent, gas-tight and secure wire connection.
Ratings up to 32 A/450 V and 105°C maximum continuous operating temperature allow the 221 Series Splicing Connectors to be used at ambient temperatures up to 85°C (T85), making them ideal for small and large loads. Furthermore, approvals like ENEC or UL make the 221 Series ideally suited for use in worldwide applications.
