VW Transporter T5 & T6 LWB 3.6mm plywood lining kit Barndoor version (collection only)

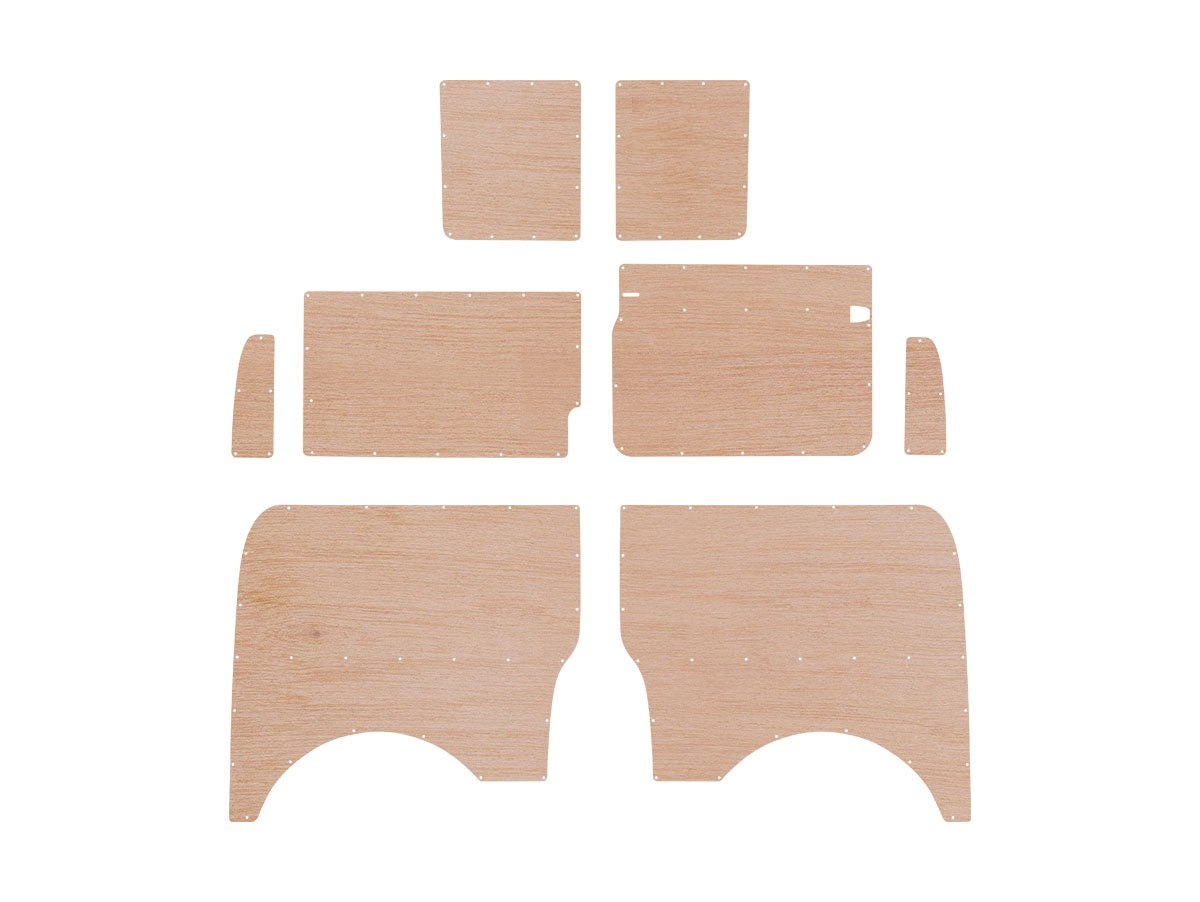

VW Transporter LWB plywood lining kit. CNC cut 3.6mm

Collection is available 3-5 days after the order is placed, we will notify you by email when your order is ready to be collected.

Only fits the Barndoor version of the VW Transporter T5, T5.1, T6 & T6.1 Transporter T5, T5.1, T6 & T6.1 vans (2003 to present day)

These are the same high quality panels we use in our own conversions, the fit is perfect.

Barn doors panels do not have the handle cut out as we do not tend to use the internal handle in our conversions. A cutting template can be provided for cutting the electronic release internal handle found on the T6 & T6.1

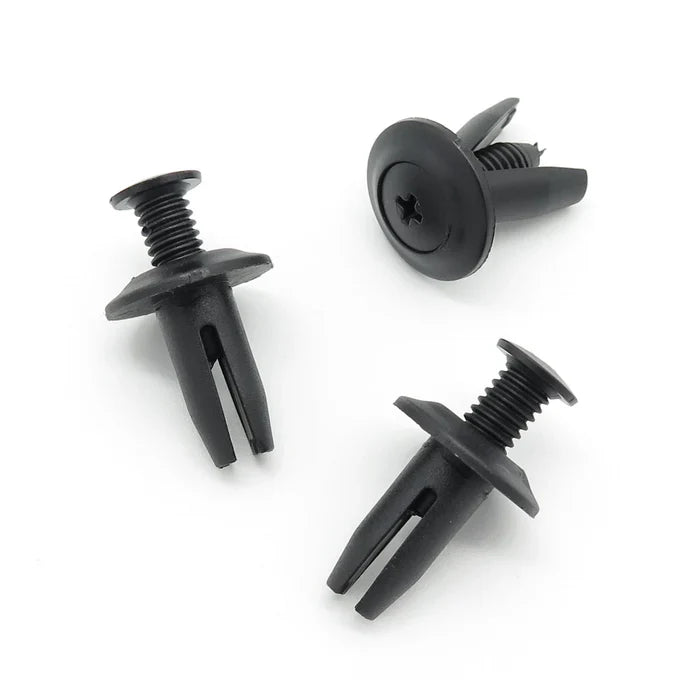

The panels are 3.6mm thick and come pre drilled ready to be attached using suitable panel clips, we recommend using hidden clips, we can also supply light grey, dark grey or black push clips, these are a longer version of the OEM panel clips to compensate for the additional thickness of any carpet lining.

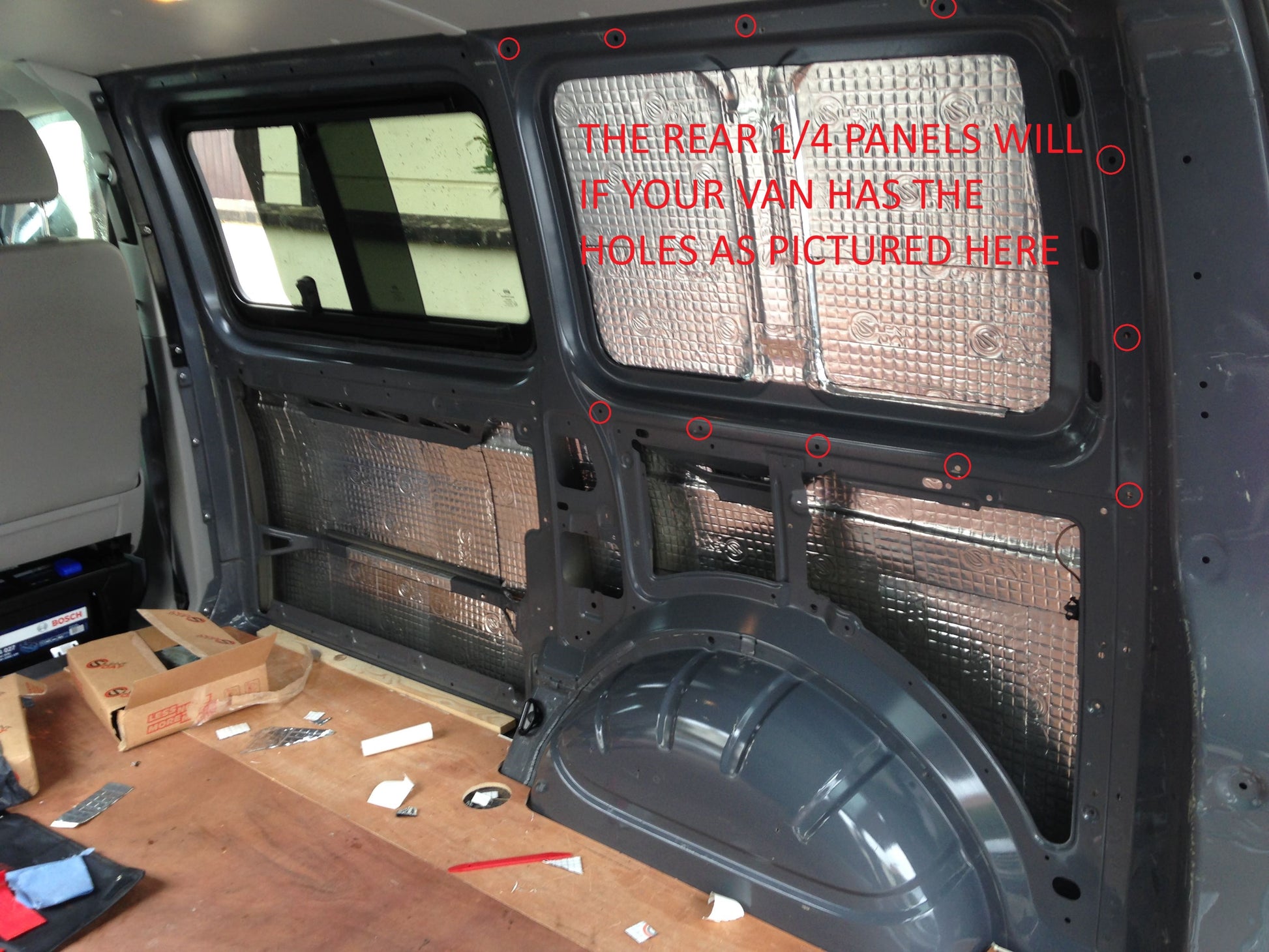

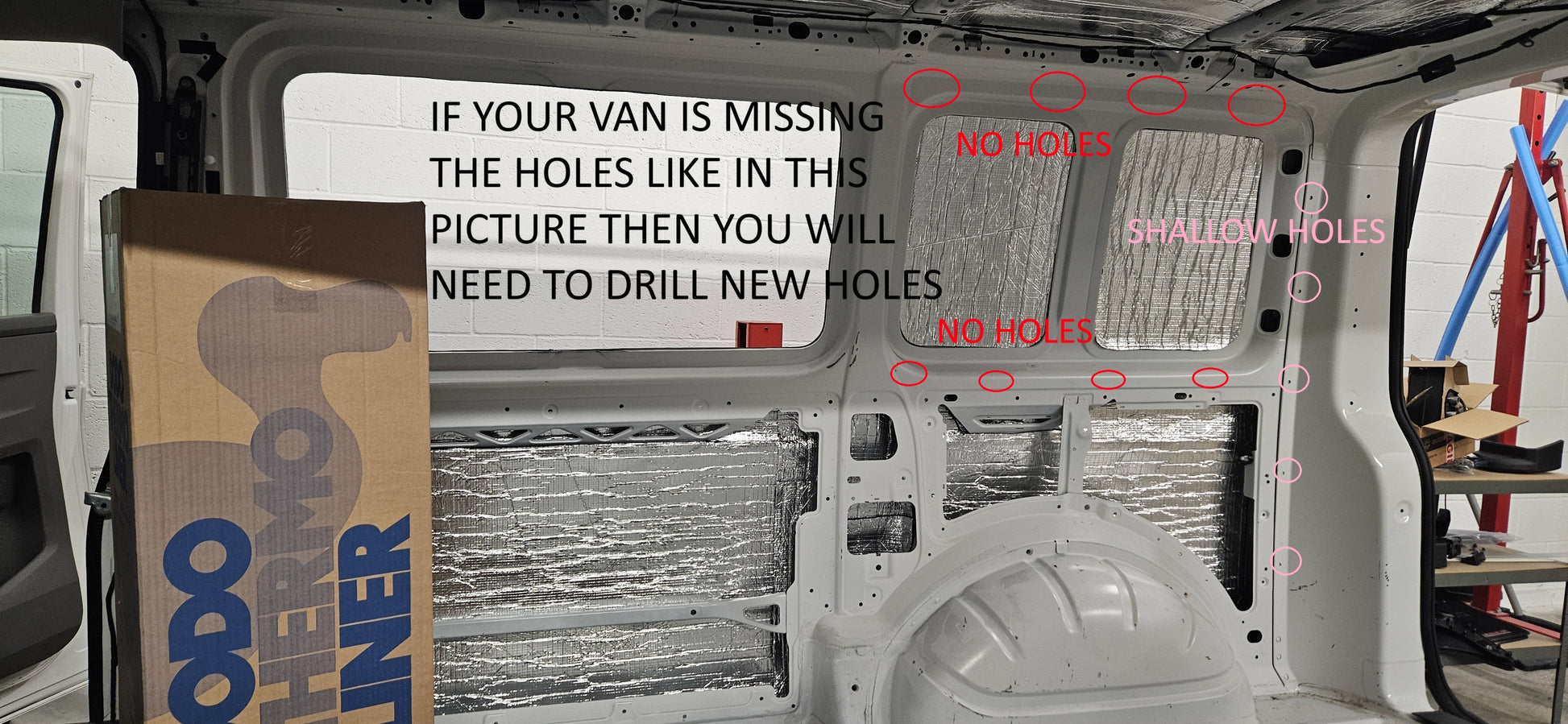

Please note: Some Transporter T6.1 vans come from the factory missing the holes for full height rear quarter panels. In this case the only option is to use your new ply panel as a template and carefully create 8 (per side) holes using a short 8mm drill bit. The new holes are circled in RED on the picture.

The 5 holes (per side) marked in PINK are shallow holes through the upper skin only, they will require drilling through the second skin as they are not deep enough to accept a clip.

Take great care when drilling the holes as there are wiring looms behind the skin!
