Truma Combi D4E Combination Heater with I-net X Control Panel (Diesel, Electrical, Hot Water)
Truma Combi D4E Combination Heater with I-net X Control Panel (Diesel, Electrical, Hot Water)
Pick up available, usually ready for collection in 2 to 3 days
Couldn't load pickup availability
The Combi D 4 E is structurally identical to the Combi D 4, the only difference being the integrated electric heating elements. The diesel version is equipped with a high-quality burner and therefore reliably heats the vehicle while driving.
At the camp site, simply switch over to electrical mode and run the heater with 230 V, with no need for the vehicle battery. Depending on the required output, choose between diesel, electric or mixed mode: in milder weather, set the appliance to electrical mode, on colder days to diesel mode and in extremely cold weather use mixed mode – diesel and electrical mode. Through four air outlets, the warm air flows into the vehicle where it is distributed optimally.
The powerful Combi D 4 E heats small and medium-sized vehicles within a short time. The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required. This means that you do not need an additional water heater, which saves space and weight. The Combi heater is also very compact and offers many different installation options.
The Combi D 4 E is controlled and monitored I-Net X System.
Truma iNet control panel
The Combi D4E complete kit from Truma includes the innovative I-Net digital control panel.

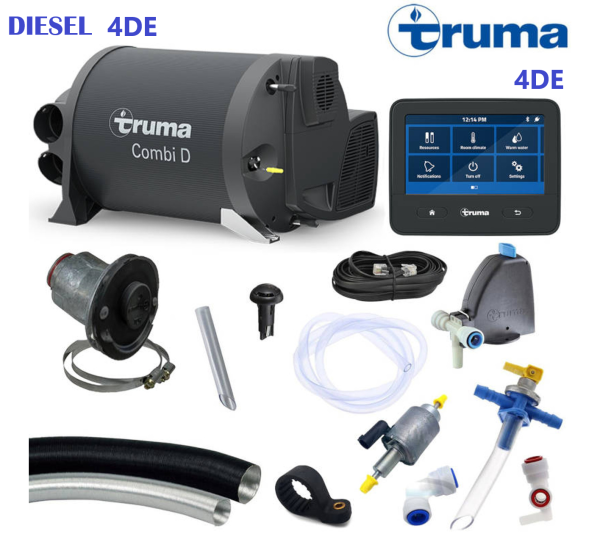

Product contents:
- Truma Combi D4E diesel and electric heater unit
- Truma I-net digital control panel
- John Guest water kit
- 6 metres control panel cable
- Truma Combi diesel exhaust/flue and air inlet kit
- Japan Solderless Terminal electrical ends
- Truma installation and operation instructions
*New installations will require warm air distribution ducting
| Combi D4E | |
| Dimensions (L x W x H) | 525 x 450 x 300 mm |
| Installation dimensions (L x W x H) | 540 x 500 x 350mm* |
| Unit Weight (without water) | 16.8kg |
| Heating time (from 15°C to 60°C) (Water only) | Approx. 20min. |
| Heating time (from 15°C to 60°C) (Heater + Water) | Approx. 80min. |
| Rated thermal output in Watts (Diesel) | Upto 4000 |
| Rated thermal output in Watts (Electric) | 900 |
| Rated thermal output in Watts (Diesel & Electric Comb.) | 3800 |
| Fuel consumption | 100 – 400ml/h |
| Water capacity | 10 litres |
| Air flow rate | 287 m3/h |
| Power consumption (at 230V) | 3.9A / 7.8A |
| Power consumption (at 12V) | Heating up boiler 1.8A up to temp max. of 4.0A |
| Water pressure | Max. 2.8 Bar |
**Please note in addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.
- Please note for warranty and safety issues all appliances must be installed by a qualified engineer. In the event of a warranty claim Truma may insist on proof of installation by a qualified engineer, failure may result in warranty claims being rejected.
