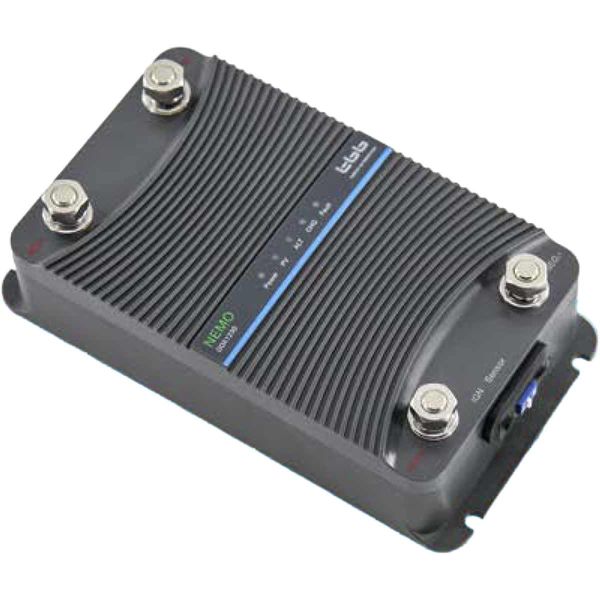

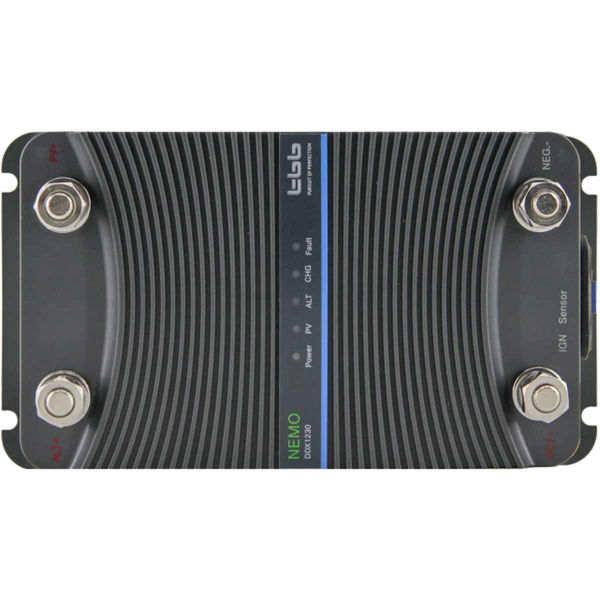

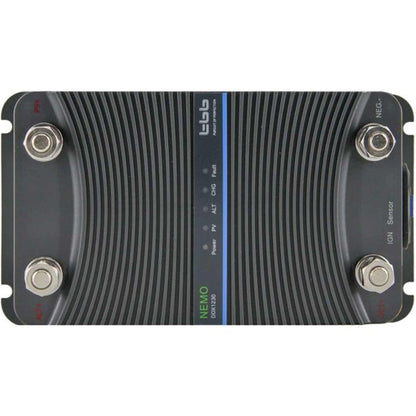

TBB Power Nemo DC-DC charger 30A

TBB Power Nemo DC-DC charger 30A

TBB Power Nemo battery to battery charger DX1230 is a simple but perfect in vehicle charging solution. It draws power from alternator to perform quick and reliable charging of auxiliary batteries while you are driving.

Compatible with Euro6 vehicles, Nemo maintains charge with a stable output even with variable voltage "smart alternators", to ensure your battery receives a full charge in the shortest time without concerns about overcharging or undercharging which can reduce life cycle of your batteries.

Lithium battery compatible - The Nemo battery to battery charger is suitable for use with lithium batteries that require a different charging profile to lead acid.

Built in temperature compensated charging ensures lithium batteries are charged with an optimum charging algorithm which is important when for lithium batteries in a cold environment.

Input nominal voltage: 12V DC

Alternator input voltage range (smart type): 12V ALT: 12-16V DC (low voltage protection at 11.6V)

Alternator input voltage range (conventional type): 12V ALT: 13.2-16V DC (low voltage protection at 12.8V)

Automatic activation -D+: Yes

Output nominal voltage: 12V DC

Charge current: 12V AUX battery: 30A

Efficiency: Max 97%

Standby current: ≤ 5mA

Battery type: AGM GEL LFP WET

Temperature compensation: Yes

Voltage compensation: Yes

Charge algorithm: TBB premium II multi stages

Protection: Charger over temperature, Battery over temperature, Overload, Short circuit, Battery low voltage (below 2V)

Operating temperature: -20°C to +60°C

Enclosure Material: Aluminum with anodised, flame proof plastic

Battery connection: M8

Protection Rating: IP63

Weight: 0.9kg

Dimensions: 186.3mm x 102.3mm x 60mm

Standards: Automotive E4-10R
