TBB Power 105Ah lithium battery (heated)

TBB Power 105Ah lithium battery (heated)

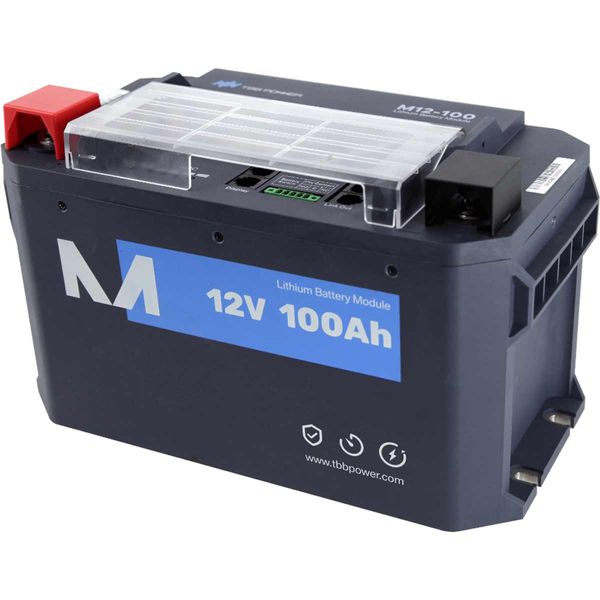

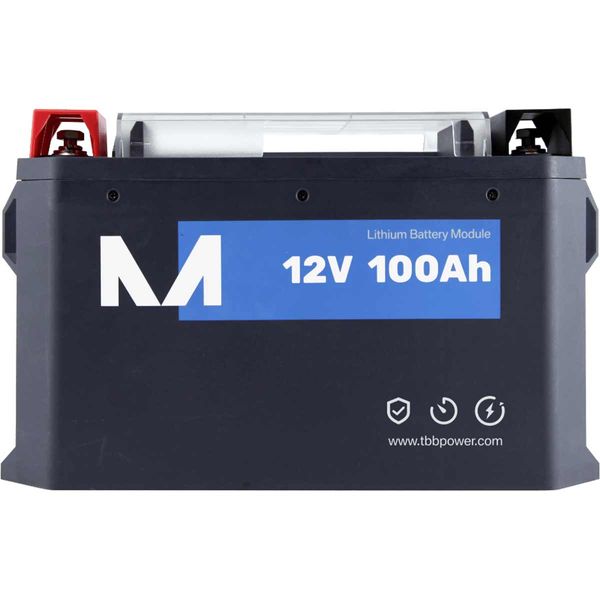

TBB Power 12V 100Ah lithium module is designed for in vehicle applications.

The M12 series is a lithium iron phosphate battery with high continuous discharge current and one of the most feature rich lithium modules available on the market.

Weighs just under 12kg which makes them far lighter than a conventional AGM battery bank.

CAN connection between each lithium module ensures safe, efficient and intelligent monitoring so maximising charge rates and life cycle – this allows 100% depth of discharge (DOD) without compromising battery and system life.

Nominal Voltage: 12V DC

Nominal capacity: 100AH

Energy: 1.28KWh

Charging voltage @ 25°C: 14.2V

Max. Charging current @ 25°C: 100A per module (50A Recommended)

Discharge cut off voltage @ 25°C: 11.2V

Max. discharge current @ 25°C: 100A Continuous (150A for 30 Minutes)

Continuous discharge current @ 25°C: 100A

Operating temperature: Charging and discharging: 0°C to +55°C

Cycle Life: > 3000 at 100% DOD @ 25°C

Parallel capability: 8pcs (Call for advice on application >4)

Weight: 11.5kg

Comms: CAN and RS485

Certification: CE & UN38.3

Dimensions: 310mm x 165mm x 187mm
