Photonic Universe 200Ah lithium leisure battery

Photonic Universe 200Ah lithium leisure battery

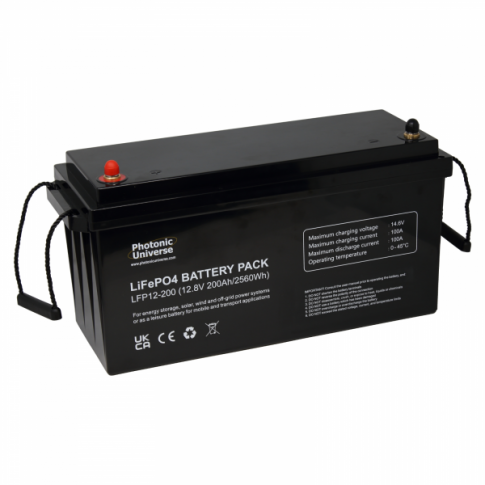

The LFP12-200 is a high-performance 200Ah 12V Lithium Iron Phosphate (LiFePO4) battery, offering exceptional reliability, safety, and long service life.

Featuring a built-in Battery Management System (BMS) that actively monitors and protects the battery for safe and efficient operation.

Additionally, the LFP12-200 includes Bluetooth connectivity via the XiaoXiangElectric app (available on IOS and Android), allowing users to monitor and manage battery performance in real time.

Key Features

Long Cycle Life – Up to 6,000 cycles at 80% depth of discharge, significantly outlasting lead-acid alternatives.

Enhanced Safety – The BMS protects against:

Overcharging

Over-discharging

Over-current

Over-temperature

Fast Charging & Discharging – High efficiency reduces downtime.

Lightweight Design – Much lighter than lead-acid batteries, making it easier to install and handle.

Environmentally Friendly – Non-toxic, with a lower environmental impact.

Bluetooth Monitoring – Connects via the XiaoXiangElectric app, offering:

Real-time battery data: Remaining capacity, charge/discharge status, voltage, current, temperature, and individual cell voltage.

Historical dynamic graphs: Track battery performance trends over time.

Charge & discharge switch control: Manage charging and discharging remotely.

Automatic equalization: Ensures balanced cell performance.

Clear warnings & capacity reset: Helps maintain battery health.

Customisable settings: Rename the Bluetooth device and switch monitoring between multiple batteries.

Deep Cycle Applications

The LFP12-200 is designed for deep cycle use, making it ideal for:

Leisure Batteries – Caravans, motorhomes, campervans, and boats.

Renewable Energy Systems – Solar and wind energy storage.

Off-Grid Power – Lighting, telecommunications, networking equipment.

Emergency Power – UPS systems and backup energy storage.

Comes securely packaged with bolts, washers, and a user manual for easy installation.

Battery specifications:

• Nominal voltage: 12.8V
• Nominal capacity: 200Ah
• Nominal energy: 2560Wh
• Life cycle: 6000 cycles @80% DoD, at 25°C
• Recommended charge voltage: 14.6V
• Maximum charge current: 100A
• Recommended charge current: 20A
• Maximum discharge current: 100A
• Operating charge temperature: from 0°C to +45°C
• Operating discharge temperature: from -20°C to +55°C
• Humidity: 5-95% (RH)
• Altitude: <4000m
• Size: 502 x 186 x 243 mm
• Weight: 23kg

This product is covered by a 5 year warranty
