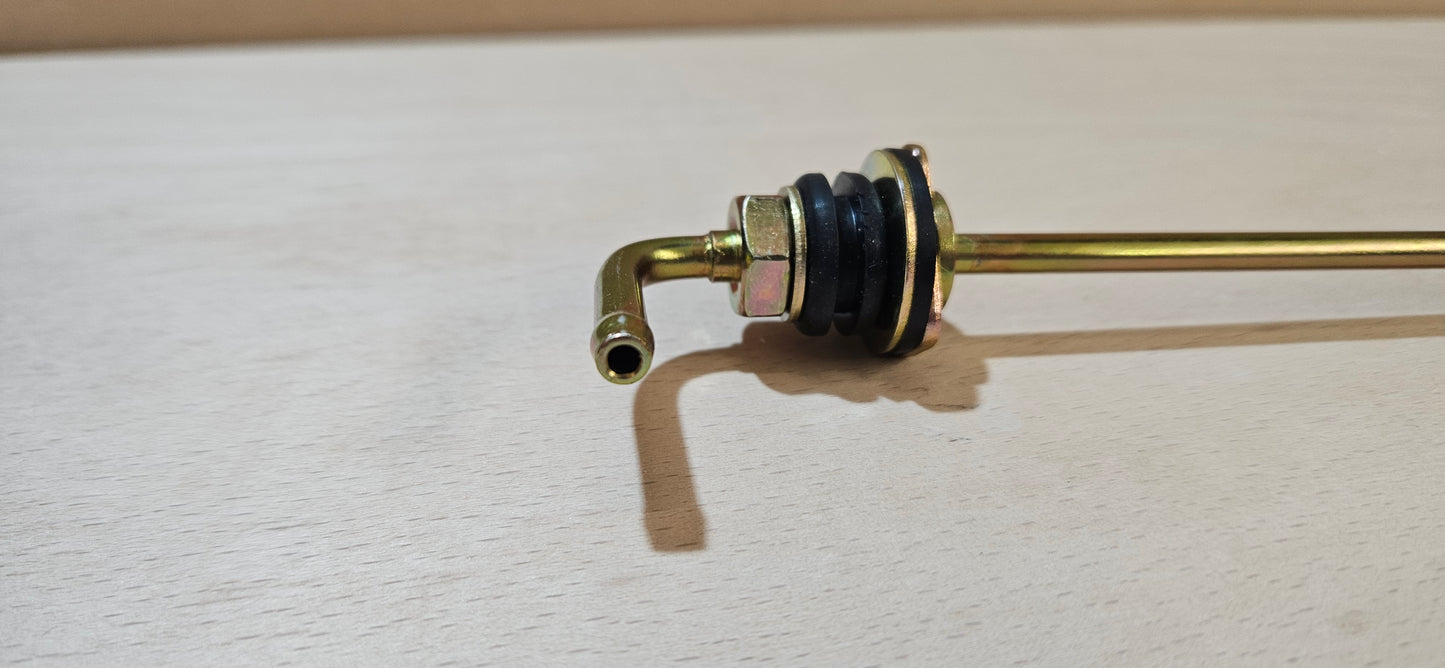

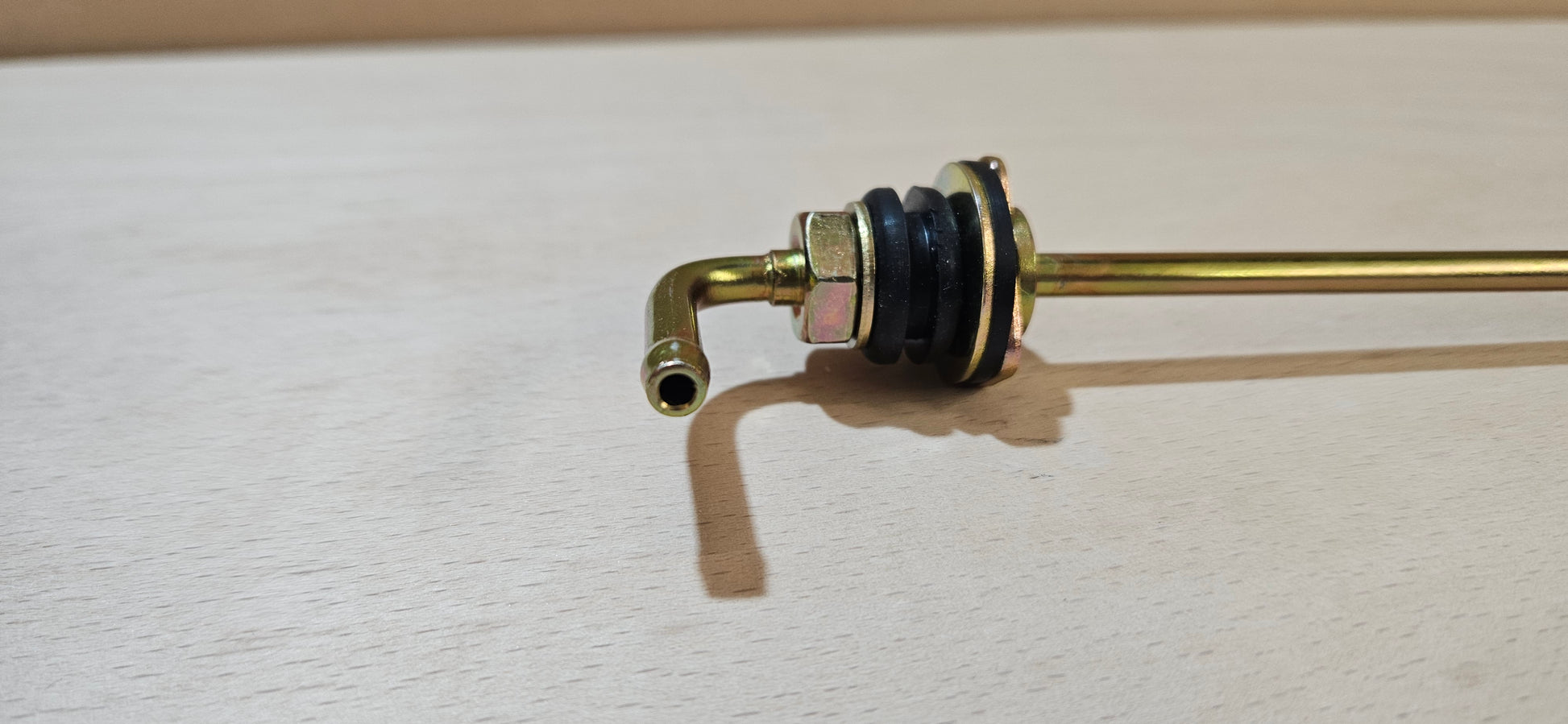

Fuel tank pickup pipe for diesel heater

Fuel tank pickup pipe for diesel heater

For use when fitting a diesel heater feed to the vehicles fuel tank.

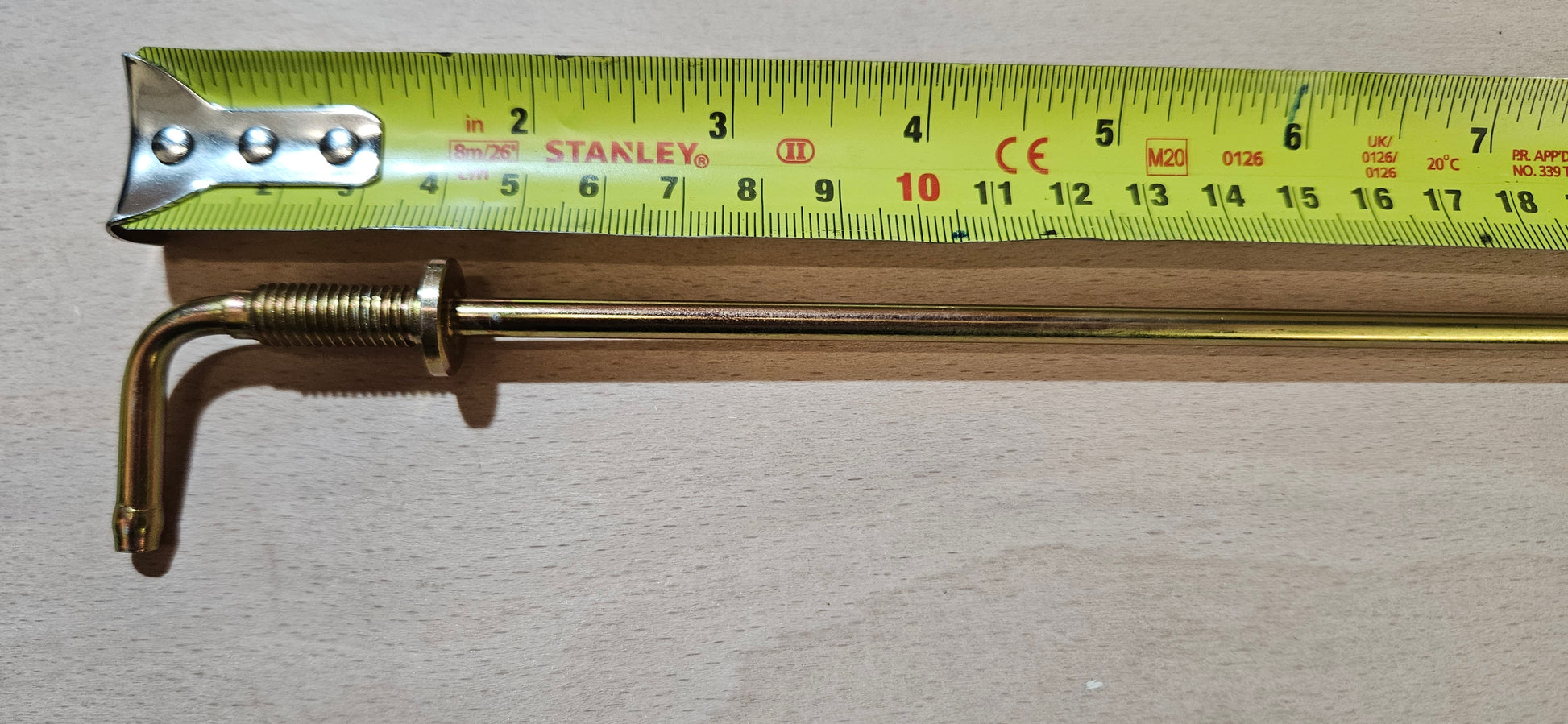

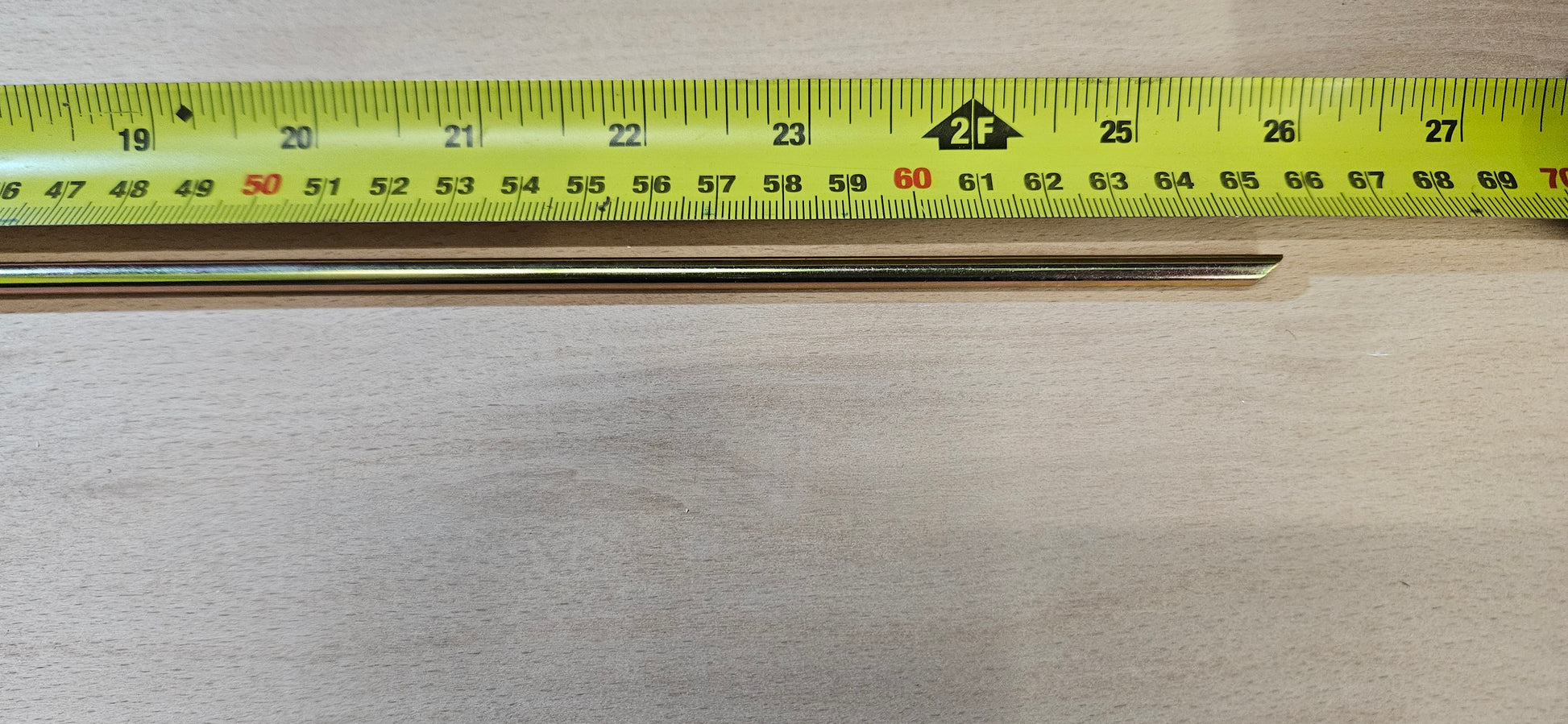

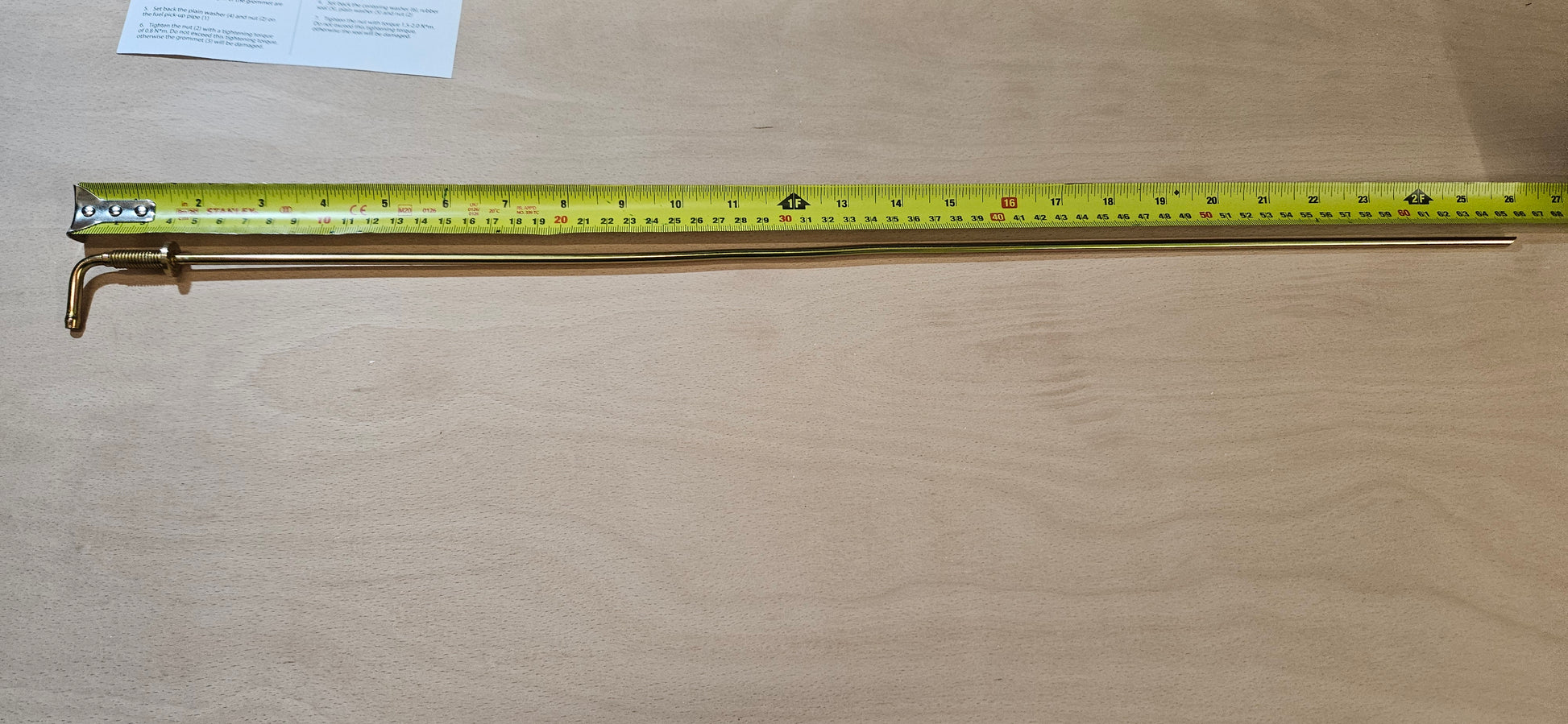

The pipe is 650mm long and can be cut down to the required length with a slitting disc (remember to cut the pipe at a 45 degree angle to assist with flow)

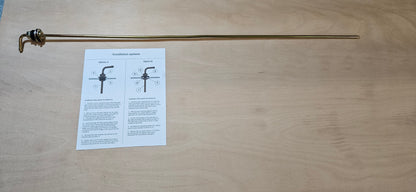

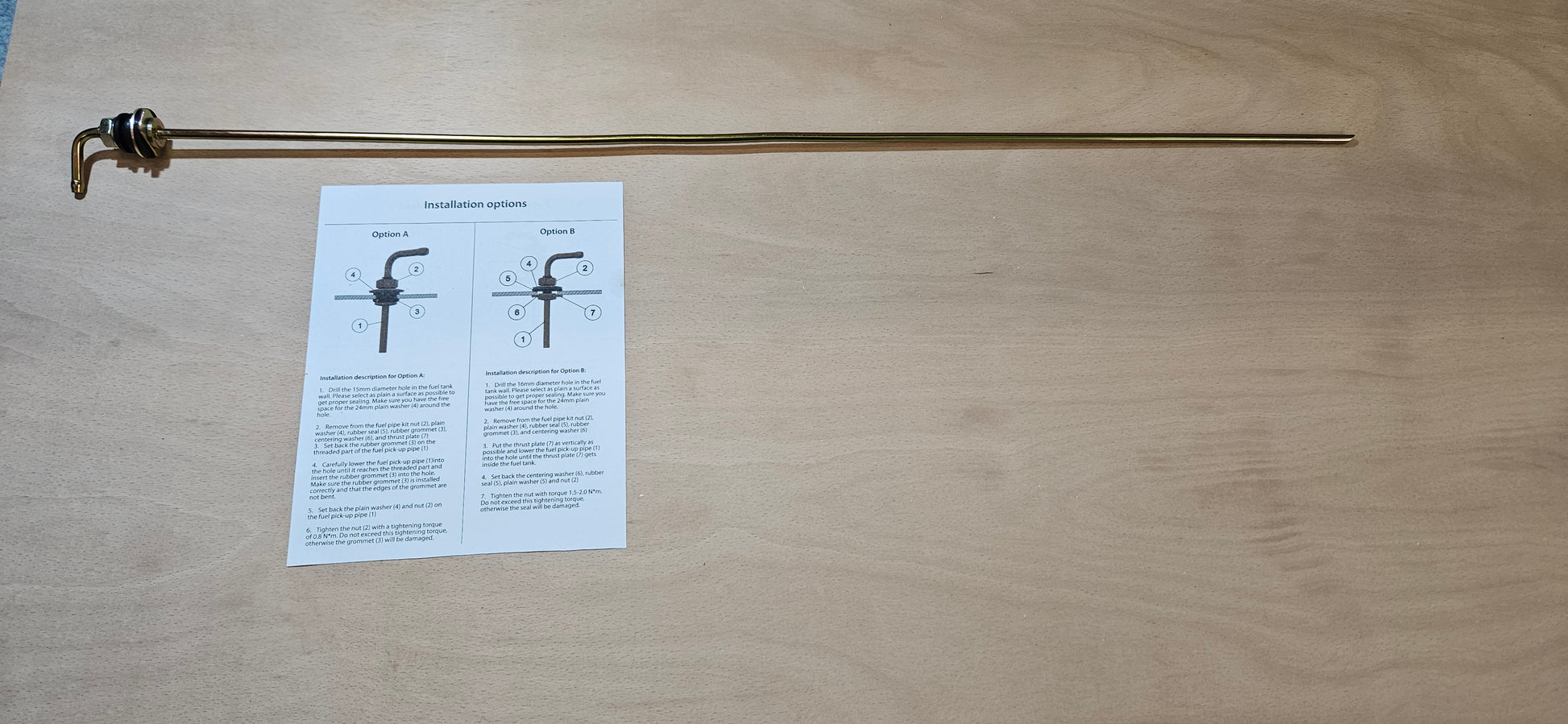

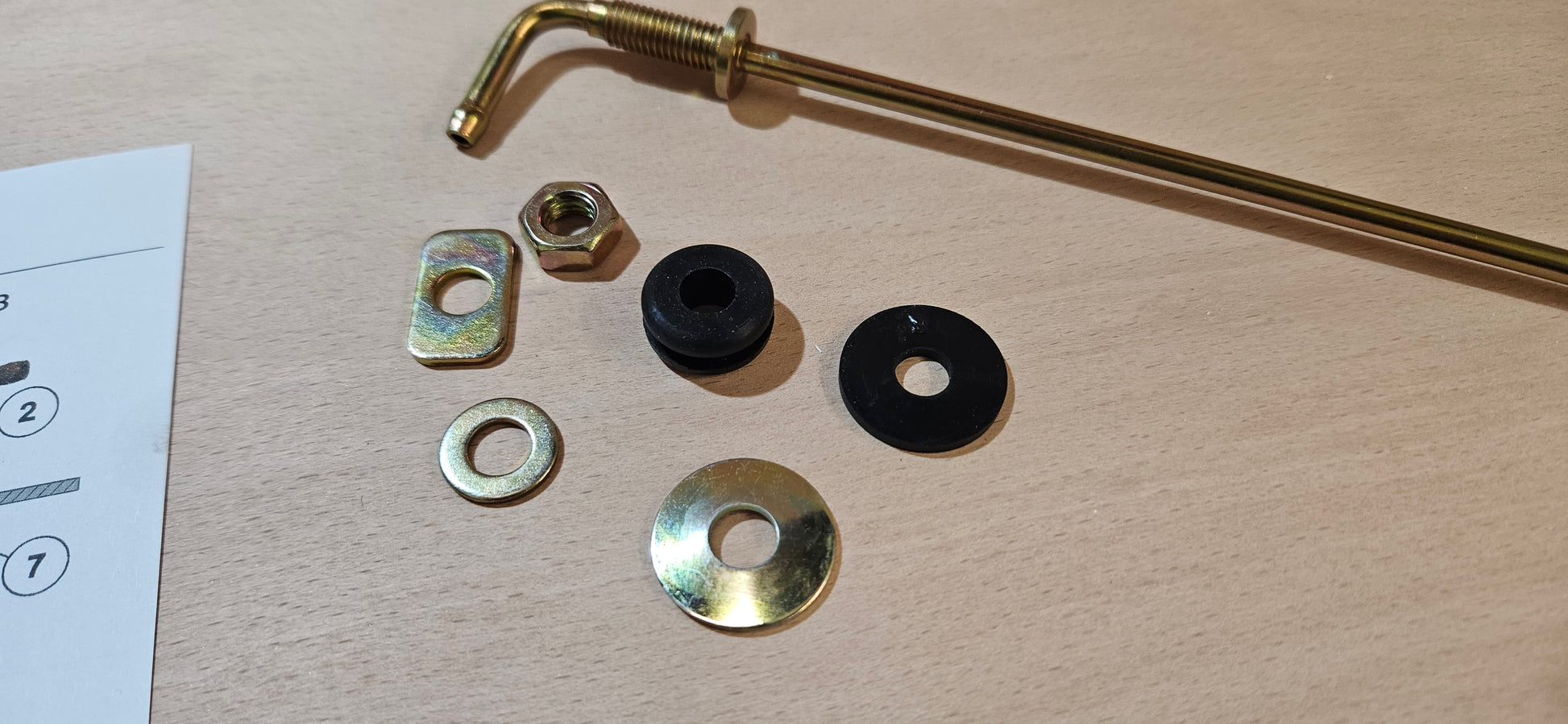

All parts pictured are included but may not be needed depending on your setup.

Tip: Cut the pipe short by 60mm or more to prevent your diesel heater using all of the vans fuel!

This setup works well on the T5 Transporters. For the T5 Transporter, cut the pipe (45 degree) to 190mm length measured from under the shoulder. Drill an 8mm hole in the top of the fuel sender well away from the other pipes and wires.
