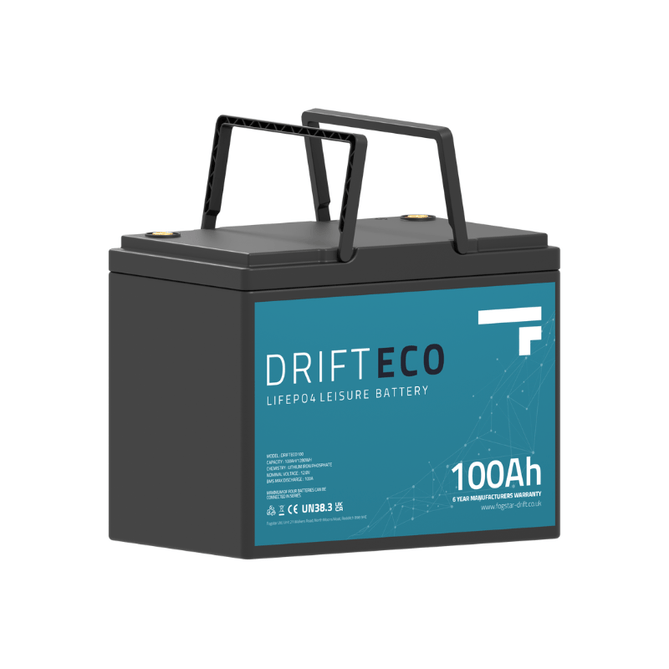

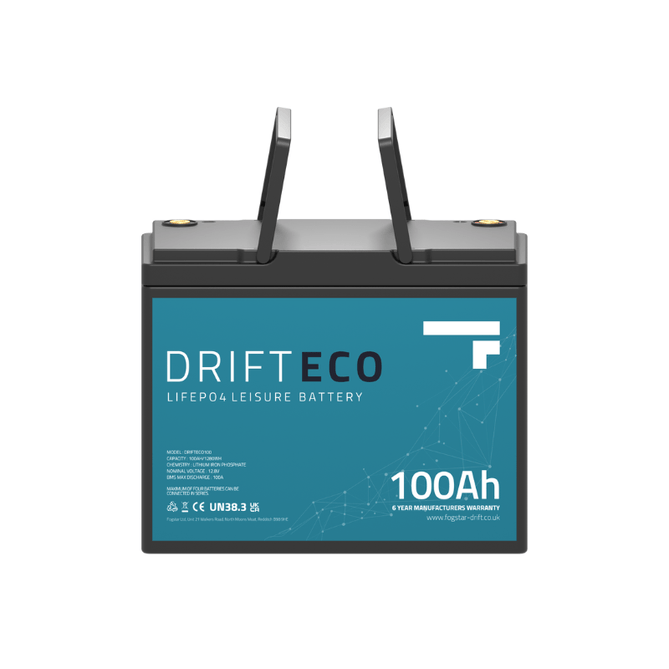

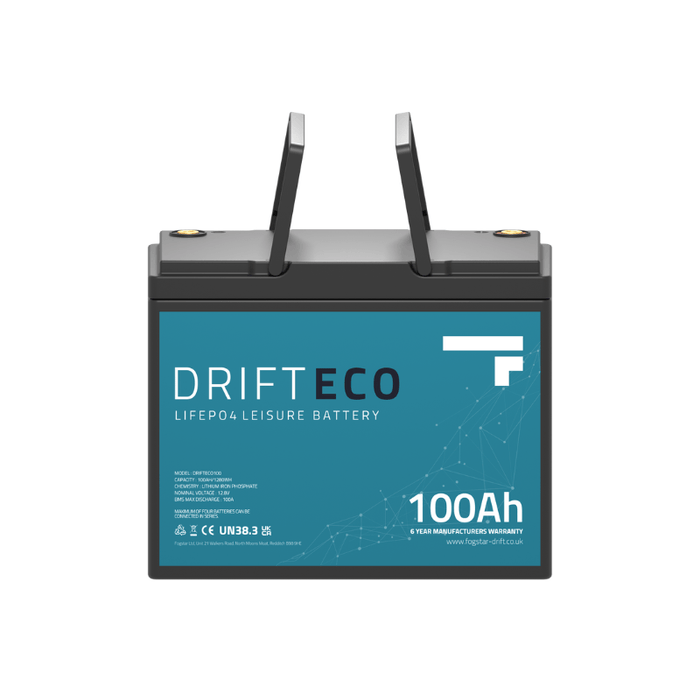

Fogstar Drift Eco 100Ah LiFePO4 lithium leisure battery (fits under T5/T6 driver seat)

Fogstar Drift Eco 100Ah LiFePO4 lithium leisure battery (fits under T5/T6 driver seat)

The Fogstar Drift ECO is your gateway to reliable, budget-friendly off-grid power.

With a superb 100Ah capacity and 1250Wh of usable energy, the Drift ECO is perfect for powering everything from leisure applications like camping and caravanning to professional use cases like solar energy storage.

Built to Last, Backed by Warranty:

• Industry-Leading 6-Year Warranty: Enjoy peace of mind with our outstanding Fogstar Warranty.
• Contains 12V 100A REPT Cells: Precisely matched and balanced Lithium Iron Phosphate (LiFePO4) cells.
• 3000 Cycles at 80% Depth of Discharge (DoD): Experience great longevity with up to 3000 cycles, translating to a 10-year lifespan at typical usage patterns.
• Advanced 100A JBD BMS: The integrated Battery Management System (BMS) protects against overvoltage, under voltage, short circuit, and temperature extremes for ultimate safety and performance.

Unmatched Versatility and Powerful Output:

• Scalable Power: Connect up to 4 batteries in series or a massive 16 in parallel for expanded capacity and voltage options.
• 100A Continuous Discharge: Power demanding appliances and electronics with ease.
• 1250Wh Usable Capacity: Store and deliver ample energy for extended off-grid use.

Designed for Demanding Environments:

• UK-Based Customer Support: Get expert assistance and support whenever you need it.
• Rugged IP67-Rated Housing: Built to withstand dust and water splashes for worry-free operation.
• Compact and Lightweight Design: Easily integrates into your setup at only 10kg.

Ideal Applications:

• Leisure: Power campers, caravans, boats, and more.
• Solar Energy Storage: Store and utilize solar energy for self-sufficient living.
• Off-Grid Power: Reliable backup power for all electrical applications.

Fogstar Drift batteries can be laid on its side; it is designed to be mounted in any orientation, including sideways, due to its lithium-ion technology which doesn't rely on the position of the electrolyte like traditional lead-acid batteries do. This makes it ideal for installing underneath the drivers seat on a T5/T6 Transporter.

The optional hold down bracket can be modified by slitting (with an angle grinder) off one of the lips, then you can secure the battery on its side under the seat of a T5/T6

Cell Type 100Ah CB79 REPT

Cell Configuration 4S1P

Nominal Capacity 100Ah

Energy 1280Wh

Cell Chemistry Lithium Iron Phosphate

Cell Nominal Voltage 3.2V *4 (12.8V)

Cycle Life 3000 @ 80% DOD

Maximum Discharge 1C (100A)

Maximum Charge 100A

Nominal Voltage 12.8V

Discharge Cut Off Voltage 10V

Discharge Temperature Range -20C to 60C

Charge Temperature Range 0C to 60C

Storage 10C to 35C @ 50% SOC

Measurements (LxWxH in mm) 260mm x 168mm x 209mm

Weight 10KG

Optional battery holder (add in options menu)

Simplify your Fogstar Drift 105Ah and Fogstar ECO 100Ah battery installation with our innovative new battery brackets.

Crafted from robust galvanised steel and finished with a sleek, black powder coat, these brackets offer a clean and professional look. The integrated screw holes, rubber matting and Velcro strap provide a secure and tidy solution, making installation a breeze.

Key Features:

Robust Construction: Galvanised steel for durability and longevity.

Sleek Design: Black powder coat for a modern, professional look.

Easy Installation: Integrated screw holes, Velcro Strap and rubber matting for a quick and clean setup.

Perfect Fit: Designed specifically for Fogstar Drift 105Ah batteries.

Dimensions: Tray inner dimensions 260 (L) x 170 (W), Strap thickness 1.2M (L) x 3CM (W).
