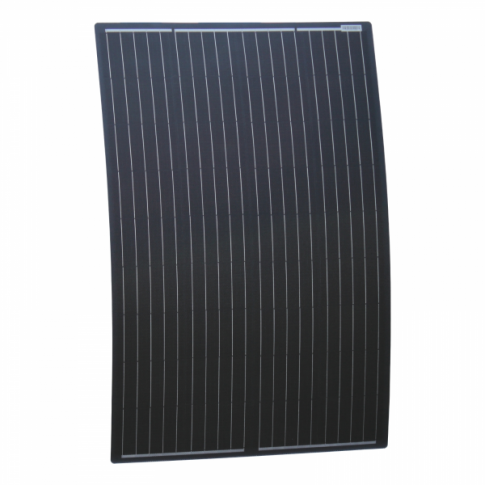

120w flexible solar panel with rear junction box (1000 x 665mm)

120w flexible solar panel with rear junction box (1000 x 665mm)

This small solar panel is suitable for camper vans with poptop roofs or the vans original metal roof.

Use this solar panel with a 10amp or 15amp mppt.

120w solar panel reinforced with anodised aluminium and a strong ETFE surface.

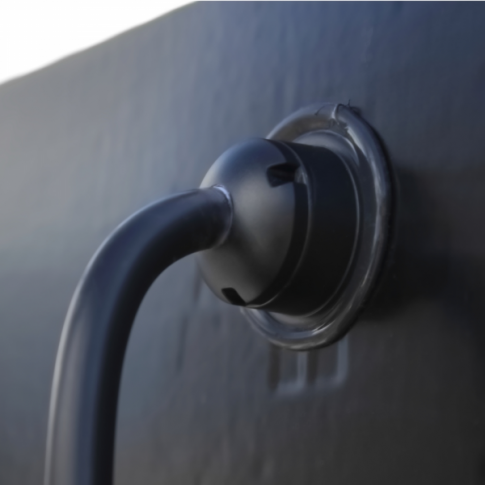

Made from monocrystalline solar cells . This model features a rear-fitted circular junction box and 3m dual core cable making installation simple . The junction box on this solar panel is a circular shape with only one dual core cable (3m length) attached, allowing for simplified installation.

Please note: in order for this panel to be flush-mounted, a recess must be cut in to the roof/surface.

This solar panel has a unique black backing, making this solar panel ideal for discreet and aesthetically pleasing installation on dark coloured roofs, vehicles or mounting surfaces. Other benefits: Semi-flexible design makes it ideal for slightly curved roofs and surfaces where bonding is preferable.

Can be bonded to poptop roofs and metal roofs with 1 tube of Speedbond hybrid adhesive

The panel is incredibly light (only 2.1kg) which is great for all vehicles

• Peak power: 120W
• Maximum power voltage: 20.5V
• Maximum power current: 5.86A
• Open circuit voltage: 24.0V
• Short circuit current: 6.15A

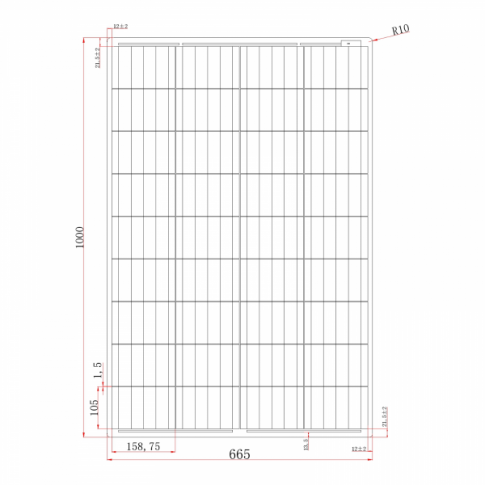

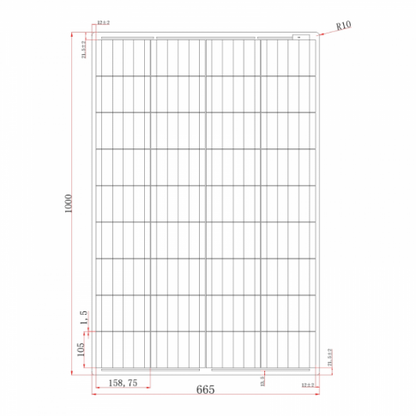

• Dimensions: 1000 x 665 x 3 mm
• Weight: 2.1 kg

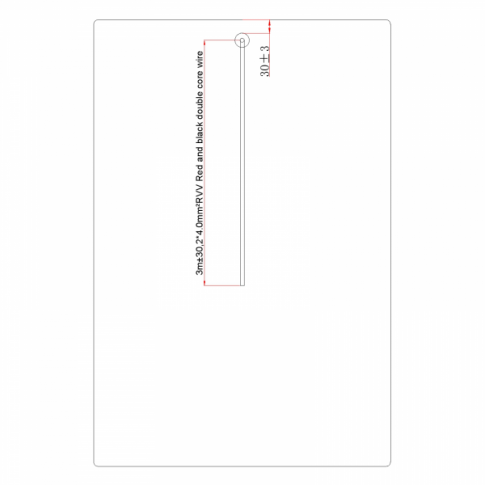

High quality dual core solar cable attached (4mm cross section)

This product comes with a 3 year workmanship warranty which covers material and production defects.
