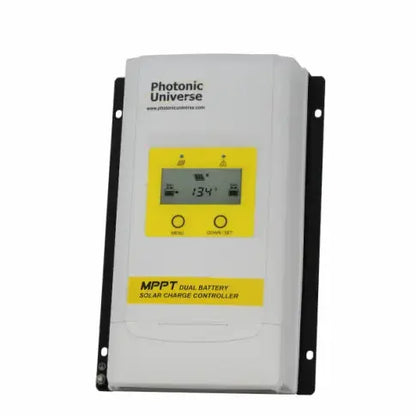

Dual battery solar charge controller (DM Series), advanced 10A 12volt dual battery solar controller uses advanced MPPT technology to charge two independent batteries or battery banks.

The main battery is charged at high power, while a secondary battery is given a trickle charge of up to 1A. This makes it a perfect solar controller for a campervan, motorhome, boat or any other system with 2 batteries (e.g. engine and leisure battery).

The main battery will be charged with a majority of the power, whilst the second battery will be trickle charged to keep it topped up and ready for use.

Maximum Power Point Tracking (MPPT) Technology MPPT technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers.

Another benefit of MPPT technology is the wide solar input voltage range - this controller can work not only with standard off-grid 12/24V solar panels, but also with multiple panels with voltage up to 60V.

The maximum combined solar input power allowed for this controller is 130W for a 12V battery system or 260W for a 24V system.

This charge controller features a comprehensive set of electronic protection functions to prevent reverse current at night (from the battery back to the solar panel), over-charging, short circuit, reverse polarity and more.

The solar controller case is water resistant to a rating of IP33 when installed, for protection against sprays of water at up to 60 degrees from vertical.

This model is 100% compatible with a broad range of battery types for the main battery, such as Gel, AGM, Lead-Acid Flooded, and Lithium ( LiFePO4 or Li-NiCoMn ) batteries.

Current limiting function (10A)

Dimensions: L227.2 × W143 × D58.1mm

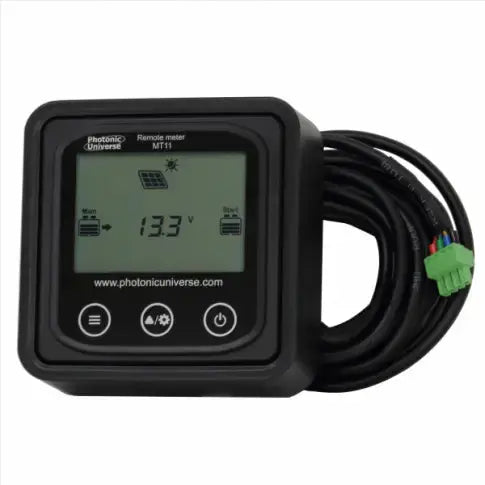

Optional Extra MT11 remote display for Dual Battery MPPT

This high quality, brand new remote display / monitor can be used with 10A - 30A dual battery MPPT solar charge controllers/regulators (DM series). The unit displays important charging parameters such as:

• Battery and solar panel voltages
• Battery and solar panel current
• Battery state of charge
• Accumulated charge and discharge energy
• Minimum/maximum recorded voltage

This meter allows you to change battery type and capacity, temperature unit, and track and reset the accumulated energy counter.

Compatibility

This meter is only compatible with DM series dual battery MPPT solar controllers:

If you already have a DM series dual battery MPPT solar controllers, this remote meter can easily be added at any time to your system - simply connect the cable supplied with the meter to the RS485 socket of the controller.

The removable frame allows for either flush or surface mounting.
