VW Transporter T6, T6.1 and new shape Crafter fuel tank pickup adaptor for diesel heater

VW Transporter T6, T6.1 and new shape Crafter fuel tank pickup adaptor for diesel heater

For use when fitting a diesel heater on a VW Transporter T6 & T6.1, or VW Crafter 2017 onwards.

This click on adaptor saves having to drill the top of the fuel tank sender to install a pickup feed.

On the T6 & T6.1 and new shape Crafter VW very kindly installed a pickup tube for an auxiliary heater. The pickup tube is capped off normally, but by cutting the cap off you can clip this adaptor onto the tube without having to drill or even remove the fuel sender.

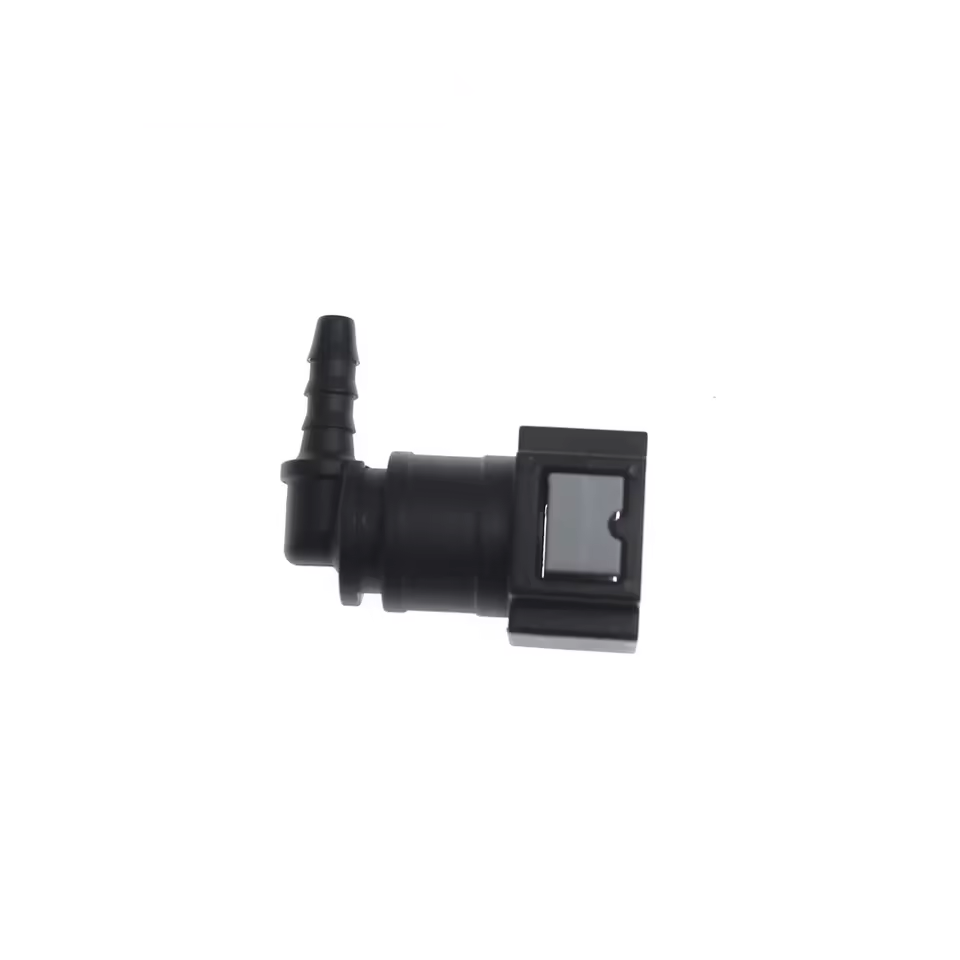

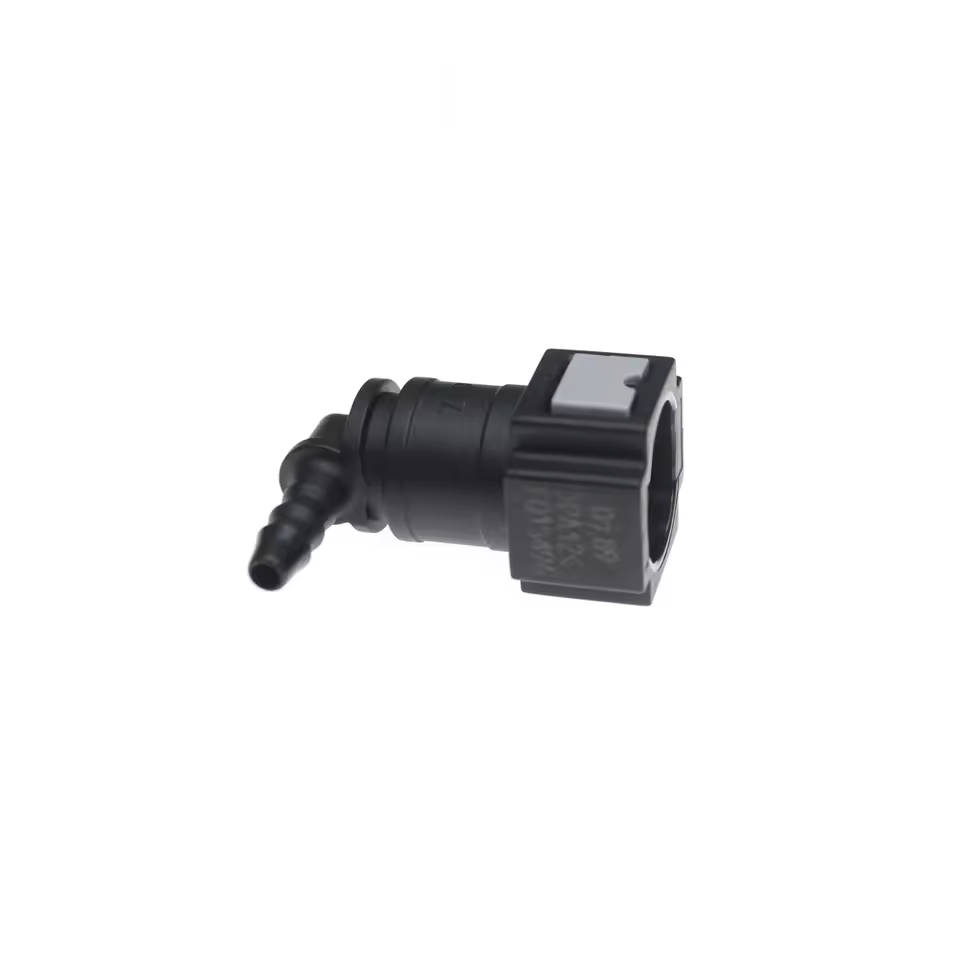

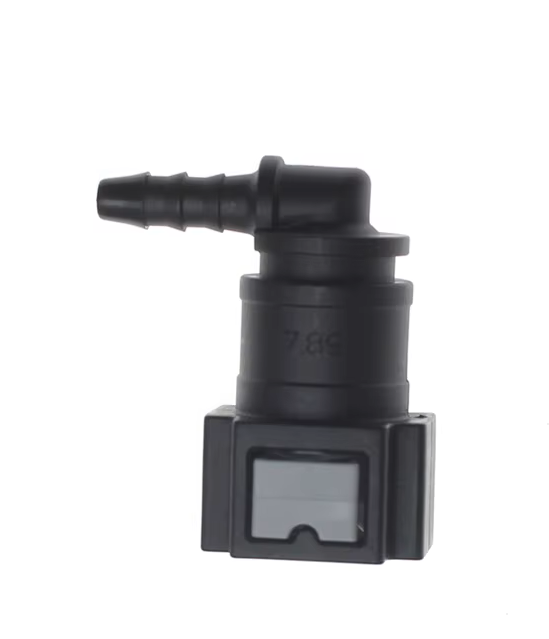

One end fits the VW fuel tank capped tube and the other end is barbed to fit a 5mm id rubber tube.

This setup works perfectly with the Autoterm 2kw diesel heater.

Please check your fuel sender top has the capped off tube (as pictured)

Not all Transporters have the capped off tube. If your fuel sender top does not have a capped off tube then this product will not work for you.
