Victron Energy Lynx Power In DC busbar

Victron Energy Lynx Power In DC busbar

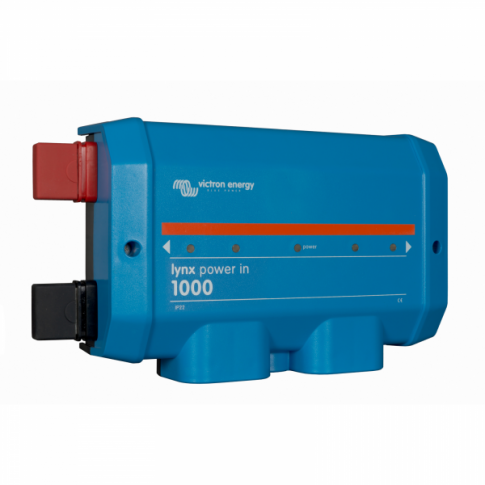

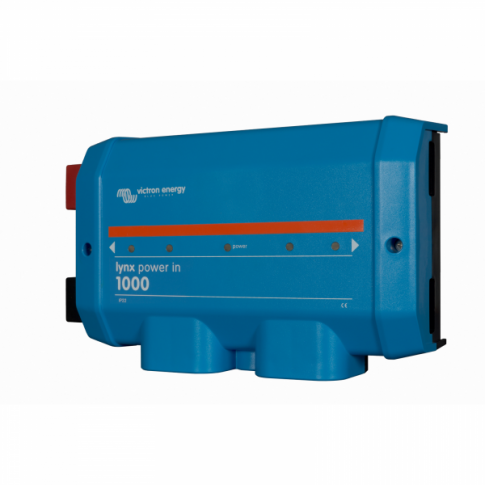

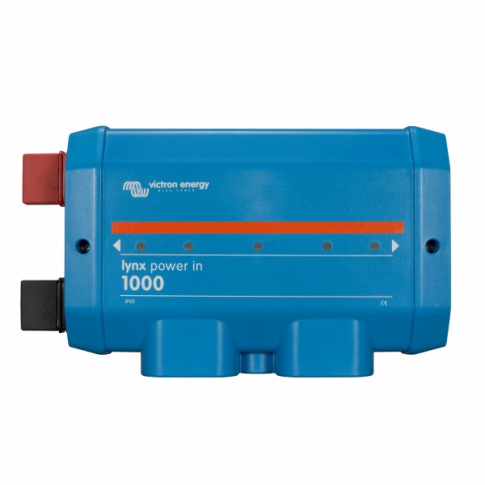

Victron Energy Lynx Power In DC Busbar.

Connecting batteries efficiently in your DC power system is made easy with the Victron Energy Lynx Power In DC Busbar.

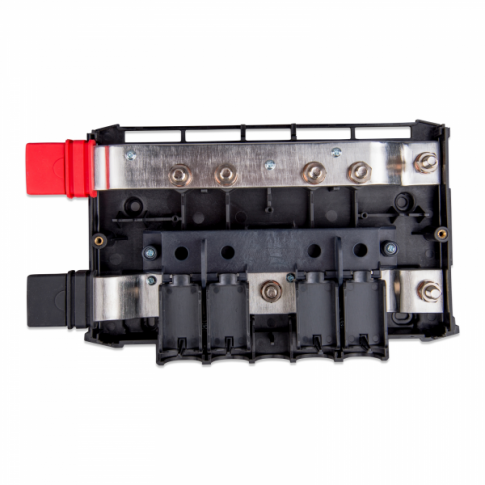

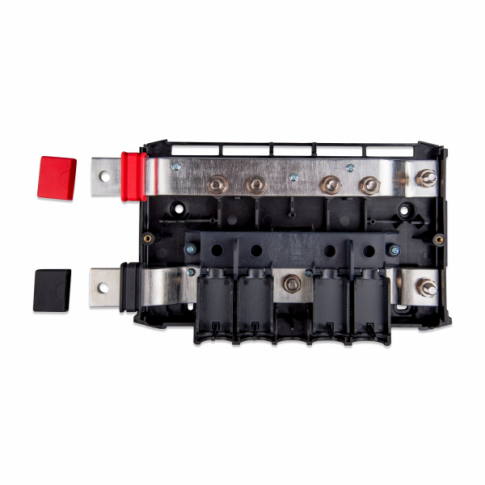

Offers positive and negative busbars with four connection points for batteries, loads, chargers, and earth.

Requires external fusing for connected components (no built-in fuses).

Key Features:

High Current Rating: Suitable for various applications with its 1000A rating.

Modular Design: Expandable by connecting multiple units for more connections.

Improved Organisation: The Victron Energy Lynx Power In DC Busbar Simplifies wiring and maintenance with a clean layout.

Weather Resistance: IP22 rated for dust and water protection, ideal for outdoor use.

Compatibility: Seamless integration with Lynx Distributor and Shunt VE for monitoring and control.

• Voltage range: 9 - 60Vdc
• Supported system voltages: 12, 24 or 48V
• Current rating: 1000A
• Busbar connection: M8
• Enclosure dimensions: 290 x 170 x 80 mm
• Unit weight: 2.1 kg
• Busbar material: Tinned copper
• Operating / storage temperature: -40°C to +60°C
• Humidity: Max. 95% (non-condensing)
• Protection class: IP22
