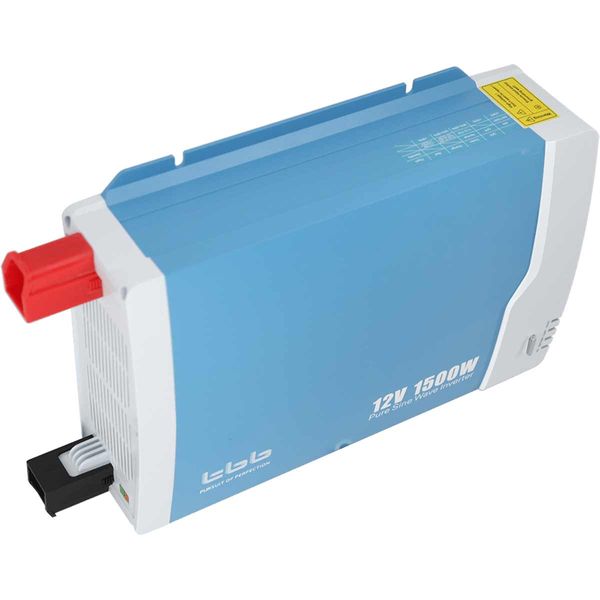

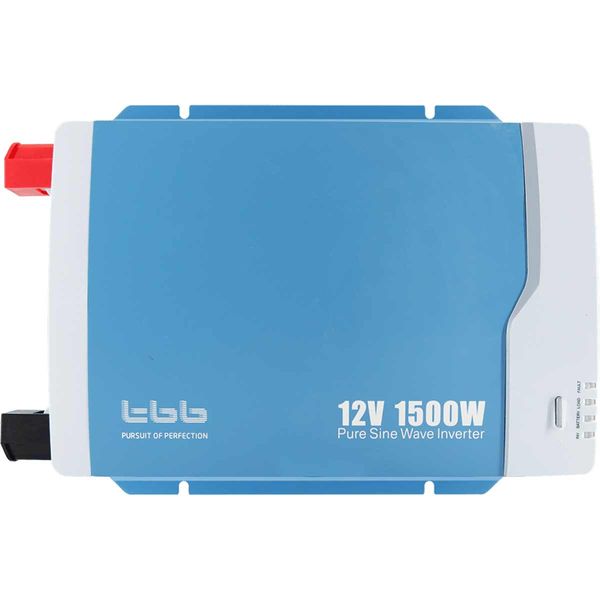

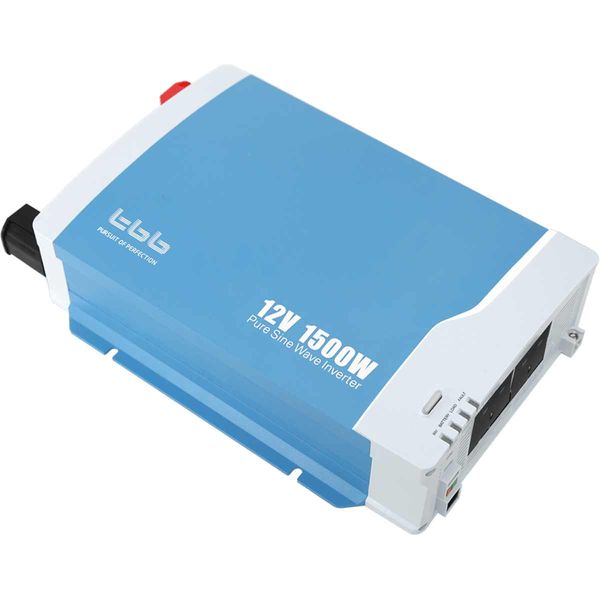

TBB Power eRAY IH pure sinewave inverter 12V 1500W

TBB Power eRAY IH1500L HF compact and efficient pure sinewave inverter to power your appliances from 12V battery.

Designed to provide 230V AC from 12V leisure battery the IH 1500W inverter is rich in features.

Pure sinewave 230V output enables compatibility with most appliances including those more sensitive and inductive loads.

High efficiency of up to 90% ensures effective use of the battery energy and the 1500W units have a power saving mode so reducing the consumption to just a few watts when no load (or specified range) is detected.

200% surge capability (1 second) and built in protection ensures the IH range are easy to install and safe to use. Integrated LED lights display status of inverter and battery voltage along with fault indication.

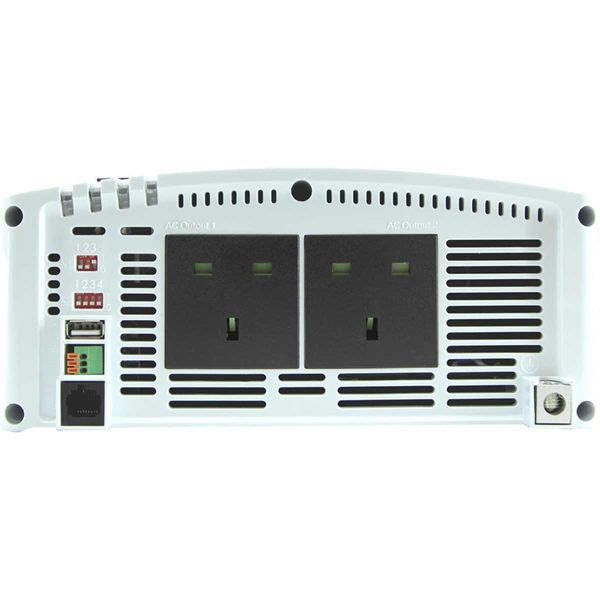

The 1500W model benefits from a remote control port (used with RIH remote) and USB output (2A) enabling the charging of mobile devices without having to use the 230V AC socket.

This inverter also has a comms port (RS485) to allow connection and reporting to the TBB ecosystem.

All products in the series feature a remote terminal which provides on/off via ignition or via separately installed switch if required. The new IH range are ideal for in vehicle use including leisure and commercial vehicles as well as marine. Please call for advice if you are ensure of the inverter rating required.

Please Note: DC input cables are NOT included.

DC Input

Nominal input voltage: 12V DC

Input voltage range: 10.5V to 16V DC

No load current: <1.1A (Power saving mode : 0.3A)

Current when power off: <3mA

AC Output

Continuous output power @ 35°C: 1500W

Maximum output power (1 min): 1600W

Surge power (1 Sec): 3000W

Output voltage: 230V AC (+/-5%)

Output frequency: 50Hz

Output waveform: Pure Sinewave.

THD: <3%

Efficiency: 90%

DC Output

USB max output current: 2A

Protection: Overload, short circuit, reverse polarity (internal fuse), over temperature

Approvals: E mark certified

Dimensions: 403mm x 256mm x 99mm

Weight: 4.6kg

Warranty: 2 years
