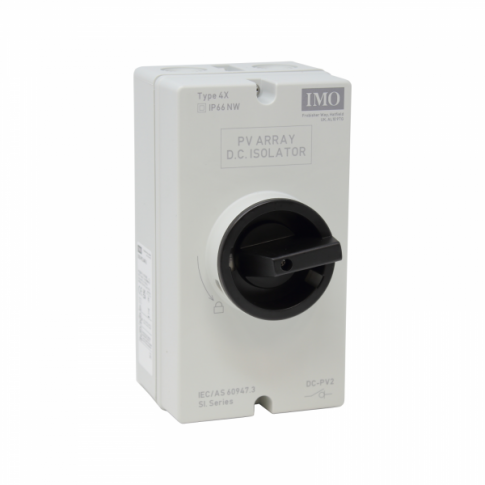

Solar panel 25A DC isolation switch enclosure

Solar panel 25A DC isolation switch enclosure

Manual 4 pole solar DC isolator switch enables quick and reliable isolation of the solar DC input from the rest of the system. Designed and manufactured to the highest European quality standards.

This is a quad pole, two phase disconnector switch which is lockable in the off position (with an optional padlock), if required. This is an ideal solution for easy-to-reach disconnection of your solar power supply from the inverter/regulator.

The switch is highly durable and totally insulated with an IP66 protection rating, making it ideal for harsh environment applications. The unit features four mounting holes for ease of installation.

• MPN: SI25-PEL64R-4
• Rated current: 25A
• Dimensions: 180 x 98 x 107mm
• Weight: 0.5 kg
• 4 Pole (2 strings)
• Grey Body with Black switch
• Switching times of less than 5ms
• Rated operating current & voltage (4 poles):
  • 25A @ 300V
  • 25A @ 600V
  • 25A @ 800V
  • 25A @ 1000V
  • 14A @ 1500V
