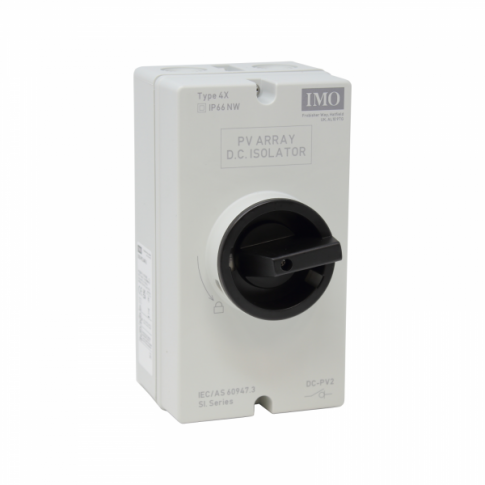

Solar panel 16A DC isolation switch enclosure

Solar panel 16A DC isolation switch enclosure

Manual 2 pole solar DC isolator switch enables quick and reliable isolation of the solar DC input from the rest of the system.

This is a dual pole, single phase disconnector switch which is lockable in the off position (with an optional padlock), if required. This is an ideal solution for easy-to-reach disconnection of your solar power supply from the inverter/regulator.

The switch is highly durable and totally insulated with an IP66 protection rating, making it ideal for harsh environment applications. The unit features four mounting holes for ease of installation.

• Rated current: 16A
• Dimensions: 180 x 98 x 107mm
• Weight: 0.5 kg
• 2 Pole (1 string)
• Grey Body with Black switch
• Switching times of less than 5ms
• Rated operating current & voltage (2 poles):
  • 16A @ 300V
  • 16A @ 600V
  • 16A @ 800V
  • 10A @ 1000V
  • 3A @ 1500V
