Sargent 4'' touchscreen modular PMS system

The compact and flexible Sargent Modular Power System can be mounted as a single unit or in separate components to fit spaces where room is limited.

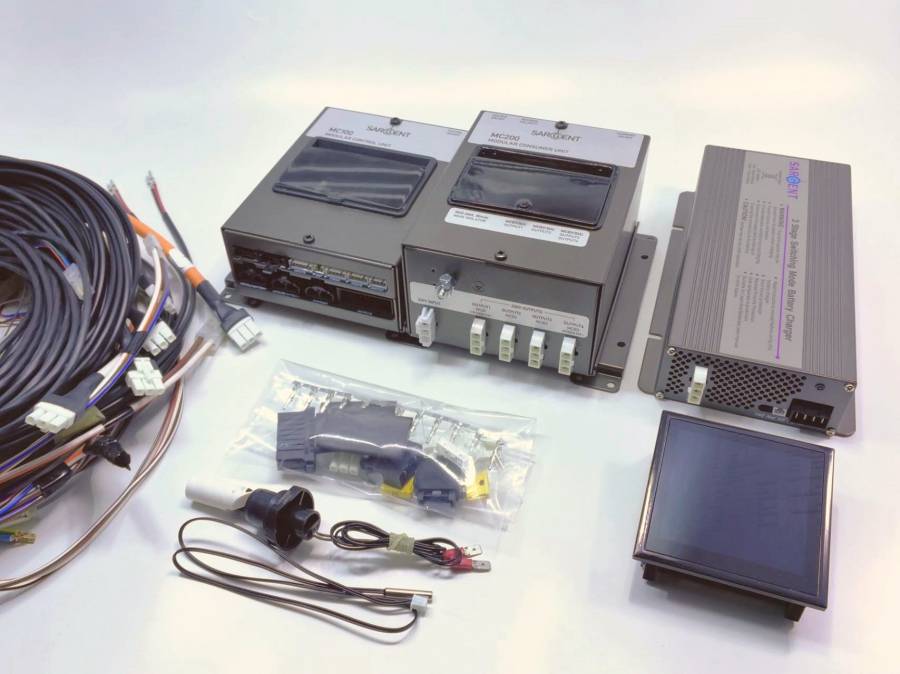

Kit contents:

- MC100 Control Unit

- MC200 Consumer Unit

- K940A 4” Touchscreen Display

- PX300 Battery Charger

- 12V and 230V Wiring Harness

- Water Sensors

- Temperature Sensor

- Connector and Fuse kit

MC100 Control Unit: Acts as the hub of the system, providing power, switching, and monitoring for 12-volt accessories, including heating, lighting, and water systems.

MC200 Consumer Unit: Offers RCD and MCB protection for 230-volt mains circuits.

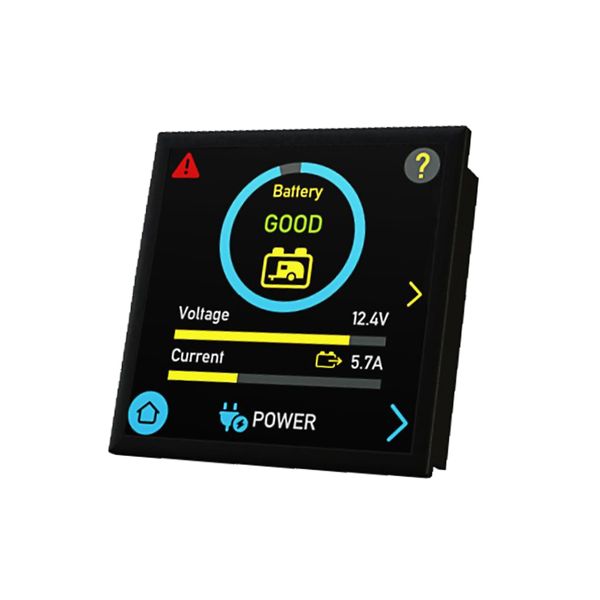

4” Colour Touchscreen Display: Provides intuitive controls for monitoring and managing lighting, power, water, and environmental sensors.

The system's modular design allows for easy expansion with intelligent CANBus accessories such as lithium batteries, ultrasonic water sensors, solar regulators, and battery chargers.

Specification for MC100 Control Unit

- Leisure & Vehicle Inputs:2 x 20A battery inputs via 2-way connectors

- Charger Input: 1 x 25A input via 2-way connector

- Outputs: Up to 25A total output via 8 x Blade Fuses

- Inputs (Signals): Engine run and multiple vehicle connections

- TMP Input: 1 x External Temp sensor

- Fresh & Waste Inputs: 4 x Fresh levels (25% steps), 1 x Waste level

- Switch Inputs: 2 x Momentary inputs

- Data In/Out: 2 x CANBus channels

Specification for MC200 Consumer Unit

- Input Voltage: 230V AC @ 0-16A

- Input Protection: RCD: 1 x 40A, 30mA

Output Protection: MCBs: 1 x 16A, 2 x 10A
