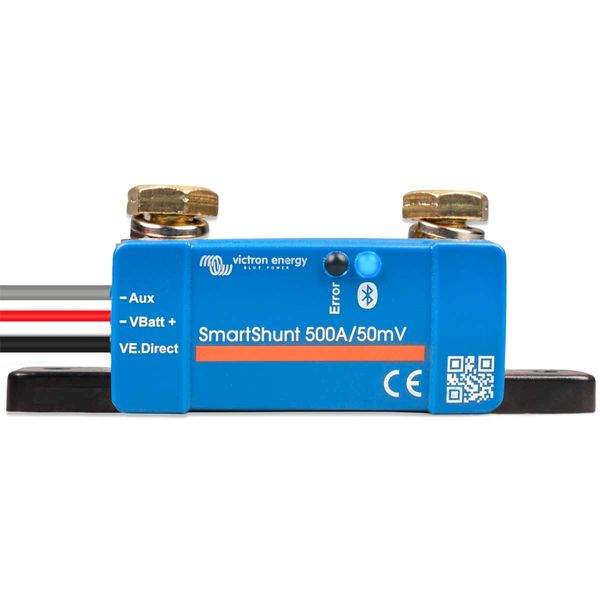

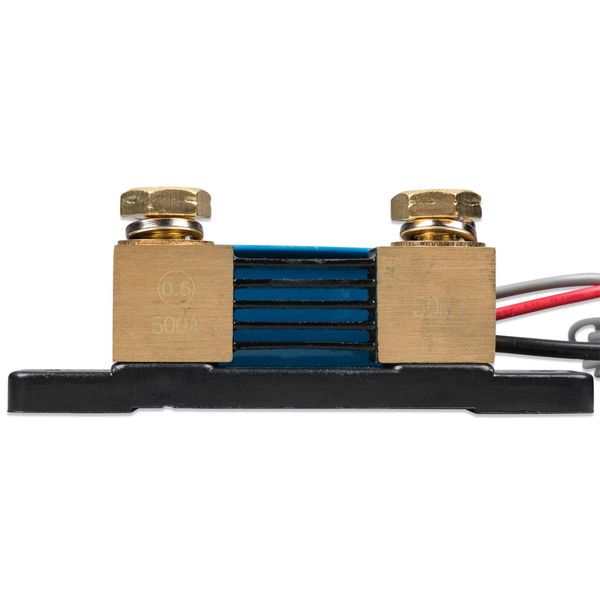

500A 50mV Victron Energy SmartShunt battery monitor

500A 50mV Victron Energy SmartShunt battery monitor

Regular price £115.00
Regular price Sale price £115.00
Sale Sold out

Pick up available, usually ready for collection in 2 to 3 days

The Victron SmartShunt IP65 500A is an all in one battery monitor, that uses your phone as the display. The SHU065150050 SmartShunt connects via Bluetooth to the VictronConnect App on your phone / tablet and you can conveniently read all monitored battery parameters, including: state of charge, time to go, historical information and more.

Alternatively, the SmartShunt can be connected and be read by a Victron GX device. In this case connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The Victron SHU065150050 SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Brand Victron
Type Battery Monitors
Voltage 50mV
Model SHU065150050
Height 46mm
Width 120mm
Depth 54mm
Approvals EN 60335-1, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3, EN 50498
Amps  500A

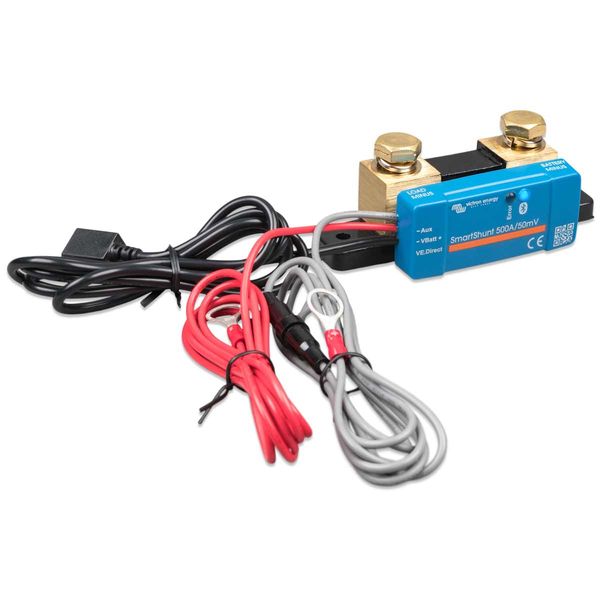

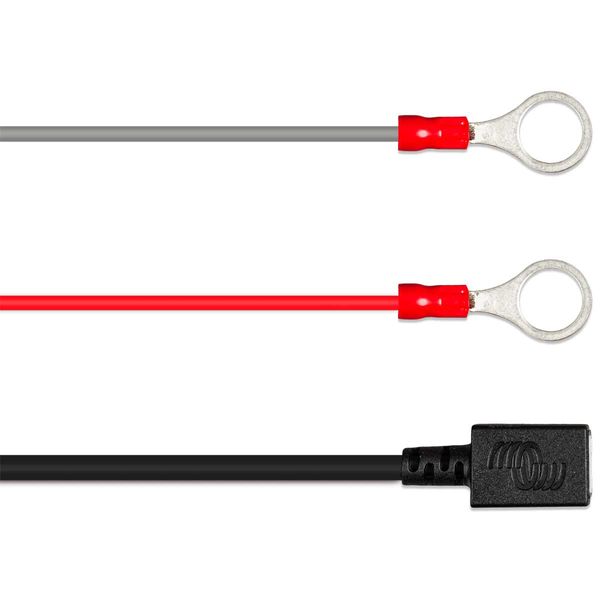

Supplied With Two 1.5m cables with 1A fuse, for '+' connection and starter battery or midpoint connection
