200w rigid solar panel (1110 x 992mm)
200w rigid solar panel (1110 x 992mm)

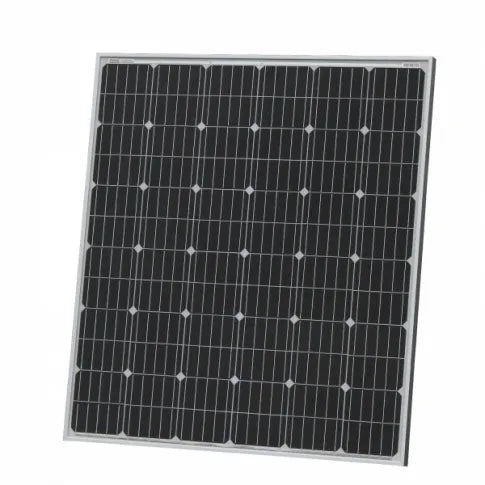

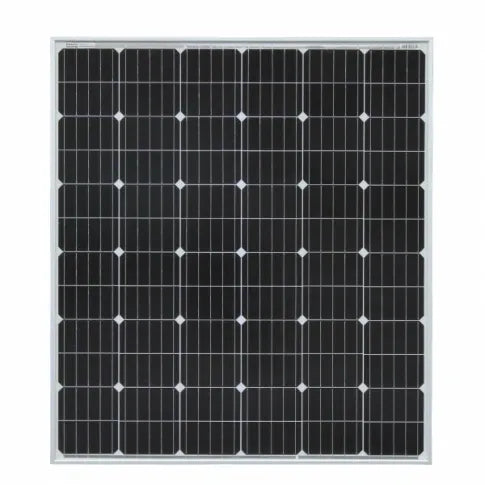

This high efficiency, waterproof 200W monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries. Perfect for camper vans, motorhome, boat etc.

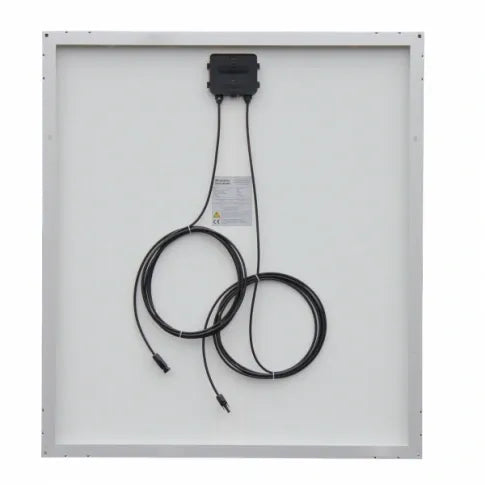

The panel is fitted with 5m of solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection.
The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller.
The long-lasting, high-efficiency monocrystalline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.
Peak power: 200W
- Maximum power voltage: 20.2V
- Maximum power current: 9.9A
- Open circuit voltage: 23.9V
- Short circuit current: 10.52A
- Power allowance range: +/- 3%
- Dimensions: 1110 x 992 x 40 mm
- Weight: 13.3 kg
- 8 mounting holes 9 x 11 mm
- 2 x 5m of high quality single core solar cable (6.0mm cross section)
- Male and female MC4 connectors
In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
If you are planning to use this solar panel to charge a 12V leisure battery or battery bank it will require a 20amp mppt charge controller (sold separately, available in our shop)
