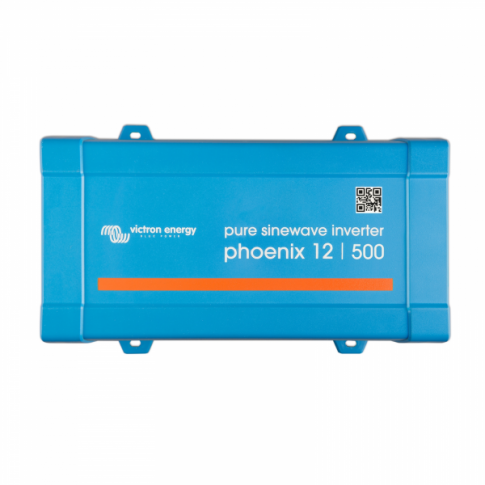

Victron Energy Phoenix sine wave inverter UK plug 12V 500VA

Victron Energy Phoenix sine wave inverter UK plug 12V 500VA

Victron's Phoenix inverters are suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load. This is the latest version which includes a VE Direct communication port.

- 12V Input

- 500 VA Continuous 400w at 25 °C )

Key Features Include:

Low battery voltage alarm trip and reset levels

Low battery voltage cut-off and restart levels

Dynamic cut-off: load dependent cut-off level

Output voltage 210 - 245V

Frequency 50 Hz or 60 Hz

ECO mode on/off and ECO mode sense level

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

Specifications:

• Input DC voltage range: 9.2V - 17V
• Output AC voltage range: 230V
• Output AC frequency: 50Hz / 60Hz (programmable with app)
• Continuous power at 25°C: 500VA / 400W
• Continuous power at 40°C: 350W
• Peak power: 900W
• Zero-load power: 6W
• Default zero-load power in ECO mode: 1W (Default retry interval = 2.5s, adjustable)
• Output wave: pure sine wave
• Battery type: Sealed lead acid, Gel, AGM
• AC socket: UK (BS 1363)
• Minimum battery capacity: 60Ah
• Nominal inverter efficiency: 90%
• Low battery shutdown: 9.3V (programmable with app)
• Operating temperature range: -40°C to +65°C (fan assisted cooling)
• Maximum cable cross section: 10mm²
• Humidity (non-condensing): max. 95%
• Size: 86 x 172 x 275 mm
• Weight: 3.9kg
• 5 year manufacturer warranty
