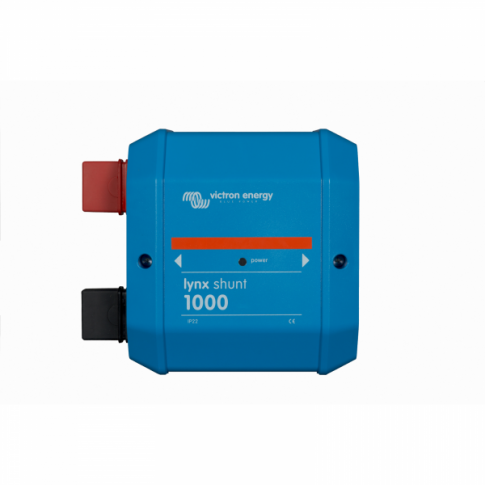

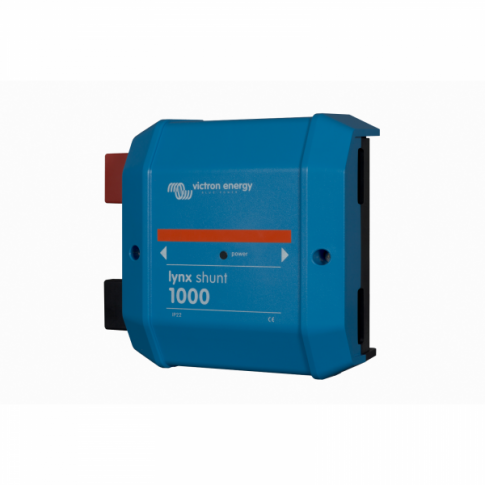

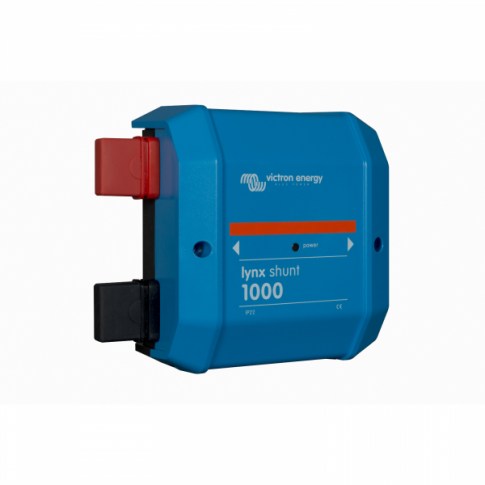

Victron Energy Lynx Shunt VE.Can

Victron Energy Lynx Shunt VE.Can

Victron Energy Lynx Shunt VE.Can

Intelligent shunt with built-in battery monitor.

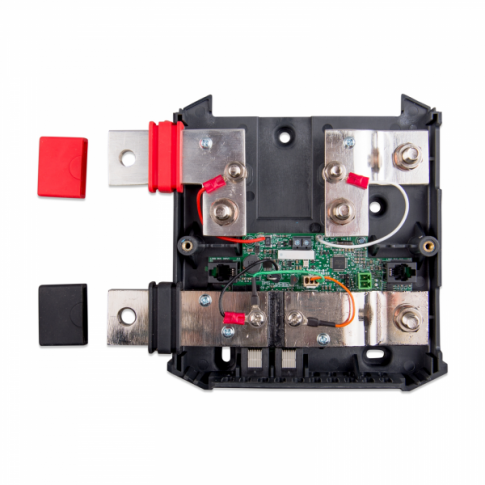

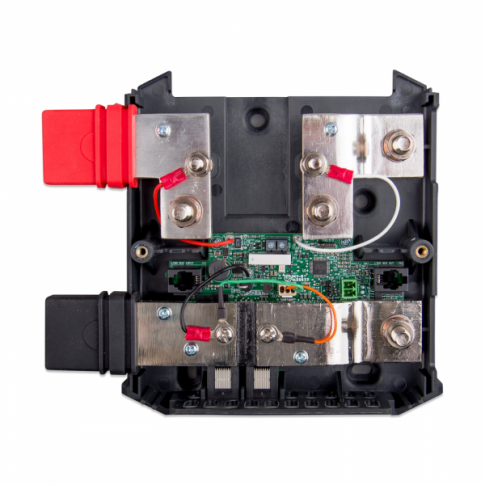

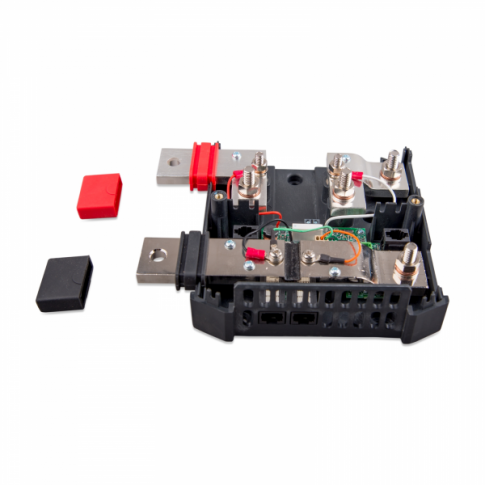

Consisting of a positive and negative busbar, battery monitor and main system fuse holder, this Lynx Shunt VE.Can can form part of the Lynx Distribution system or be utilised as a standalone battery monitor.

The main fuse status is indicated with a power LED and, on compatible systems, an alarm message can be sent to a GX device.

Programmable alarm relay

The Victron Lynx Shunt VE.Can alarm relay can be programmed via a GX device to activate under certain operating conditions, including battery voltage, battery temperature, state of battery charge or blown system main fuse.

Battery Monitoring Compatibility

This intelligent 1000A current rated shunt module can be used with all battery types including lithium that have a battery management system (BMS). Please note that when used with Victron's Lithium Smart Batteries, the Lynx Smart BMS must be used.

Victron Energy Lynx Shunt VE.Can Specifications

Supply Voltage: 9-70VDC

Supported System Voltages: 12/24/48V

Continuous Current Rating: 1000A

Power Consumption:

60mA @ 12V

33mA @ 24V

20mA @ 48V

Busbar Connection Size: M8

Fuse Connection Size: M8

VE.Can Connector: RJ45

Dimensions (h x w x d): 190 x 180 x 80mm

Weight: 1.4kg

IP Rating: IP22
