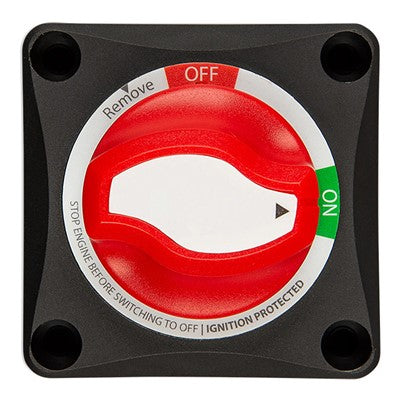

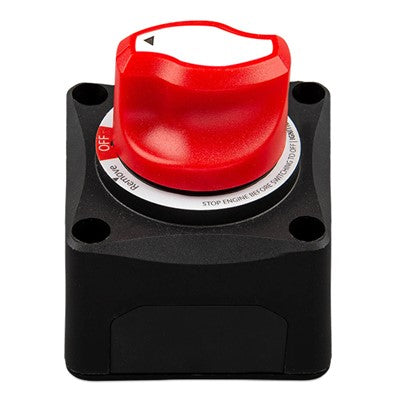

Victron Energy 275A On/Off battery switch

Victron Energy 275A On/Off battery switch

The Victron Energy Battery Switch On/Off 275A is a high-performance, heavy-duty switch designed for safely disconnecting and isolating the battery from the rest of the electrical system.

This switch is ideal for leisure vehicle applications where a reliable, high-current disconnect is required.

Features

• Rated for continuous current of 275A
• Suitable for DC circuits in 12V, 24V, and other systems
• High-quality, durable construction
• Easy to install and operate
• Simple on/off functionality for secure battery isolation
• Corrosion-resistant materials ideal for marine and outdoor use
• Compact design for space-constrained installations

Materials and Dimensions

• Dimensions (LxWxH): 69.5 x 76.3 x 69.5 mm
• Weight: 0.2 kg
• Max. continuous current: 275 A
• One minute rating: 455 A
• Cranking rating: 1250 A
• Maximum operating voltage: 60 V
• Terminal material: Tin-plated copper
• Hex nut material: Tin-plated copper
• Terminal diameter: M10 (3/8 inch / 9.53 mm)
• Recommended torque: 70 lbf·inch / 8 N·m
• Base material: Glass fiber reinforced nylon
• Mounting: Surface or rear panel mount
• Ignition protected: ISO8846 / SAE J1171
