Victron Energy 120A Victron Cyrix-ct intelligent battery combiner

Victron Energy 120A Victron Cyrix-ct intelligent battery combiner

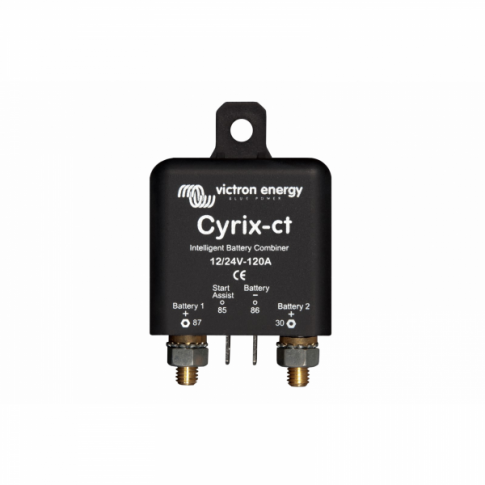

120A Victron Cyrix-ct intelligent battery combiner automatically connects and disconnects two independent battery banks based on voltage trends, optimising the sharing of power between batteries. This is perfect for vehicle battery systems where alternator charging can be shared with the leisure battery, and leisure charging (such as solar power or mains hook-up) can be shared with the engine starter battery.

Key Features

Intelligent monitoring and tracking of both battery systems, shares charging without over-discharging either battery

Full protection against over-discharge, overcurrent, over-temperature or over-voltage

Automatic 12V/24V system voltage detection

No loss of voltage between batteries

Bi-directional power flow shares charging in both directions

Start Assist manual override, allows leisure battery to assist with engine start-up in case of starter battery damage or deep discharge

Note: both battery banks in the system must have the same rated voltage. Smart alternators in Euro 6 or later engines may not be compatible with Voltage Sensing Relay technology such as this battery combiner.

Specifications:

• Continuous current: 120A
• Cranking current (5 secs): 180A
• Standby consumption: <4mA
• Rated voltage: 12V / 24V
• Terminal size: 8mm
• Dimensions: 46 x 46 x 80 mm
• Weight: 110g

This product is covered by a 5 year manufacturer warranty
