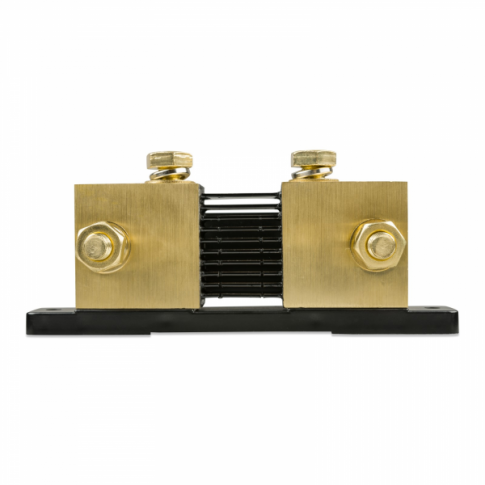

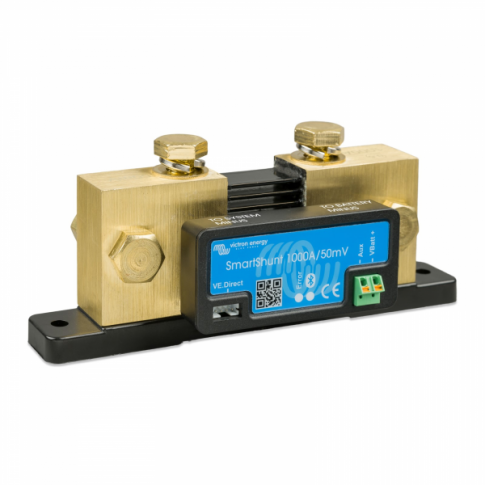

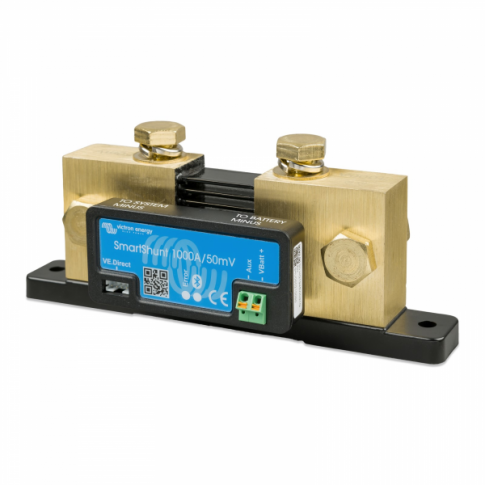

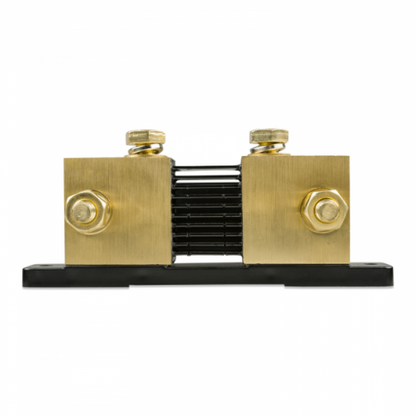

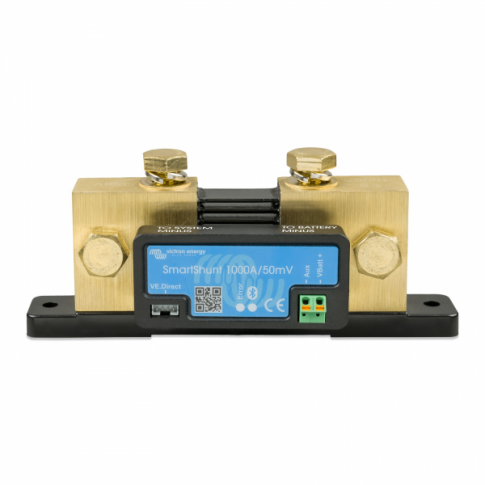

Victron Energy 1000A Smart Shunt battery monitor

Victron Energy 1000A Smart Shunt battery monitor

The Victron SmartShunt IP65 1000A is an all in one battery monitor, that uses your phone as the display.

The SmartShunt connects via Bluetooth to the VictronConnect App on your phone / tablet and you can conveniently read all monitored battery parameters, including: state of charge, time to go, historical information and more.

Alternatively, the SmartShunt can be connected and be read by a Victron GX device via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The Victron SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Compatibility

This SmartShunt is suitable for use with any 12V, 24V or 48V Lead Acid / Gel / AGM / Lithium battery or battery bank. The maximum admissible nominal current through the shunt is 1000A.

Additional items

The shunt is also supplied with 2 x 1.5m positive supply cables with a fuse to connect the battery shunt to up to two battery banks.

System Specifications:

• Nominal battery voltage: 12V / 24V / 48V
• Supply voltage range: 6.5 - 70V
• Input voltage range (Auxiliary battery): 6.5 - 70V
• Supply current: 1mA (12V) / 0.8mA (24V)
• Input current range: -1000A to +1000A
• Operating temperature range: -40°C to +50°C
• Voltage measurement accuracy: ±0.3%
• Current measurement accuracy: ±0.4%
• Simensions: 120 x 68 x 54 mm
• Weight: 1100g
• 5 year manufacturer warranty
