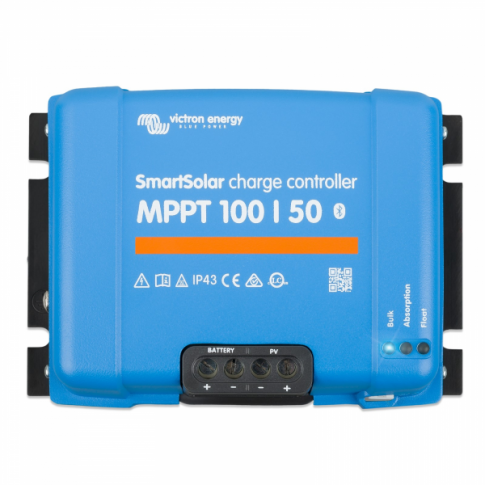

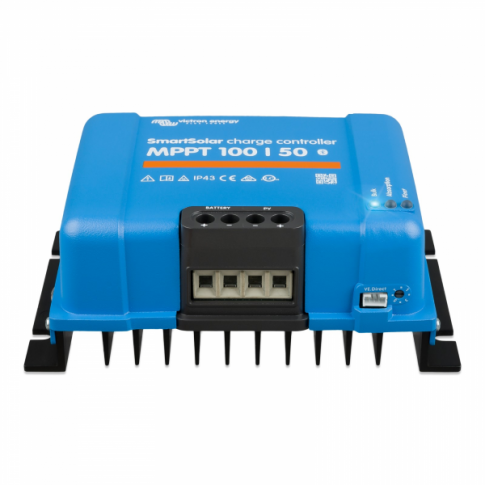

Victron Energy 100/50 SmartSolar MPPT Charge Controller/Regulator (50A)

Victron Energy 100/50 SmartSolar MPPT Charge Controller/Regulator (50A)

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, Smart Solar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. Smart Solar maintains battery health, extending its life.

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remotely control and monitor the extensive features of your Smart Solar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via Victron Connect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby.

This Smart Solar MPPT Regulator will handle a maximum of 100V and 50A of solar panel output.

Maximum panel power of 700W (12V system) or 1400W (24V system)

Voltage Max. PV Input: 100V DC, 12/24V Self Sensing

Specifications:

- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system

- Fully automated operation and auto 12 / 24V selection

- 2 pairs of terminals (solar panel, battery) for wires up to 13mm2

- Inbuilt bluetooth

- Max solar panel voltage: 100V

- Max solar panel power: 700W (12V) / 1400W (24V)

- Temperature sensor for automatic compensation (-16mV °C resp. -32mV °C)

- Comprehensive electronic protection features

- Communication port: RS232 / TTL for VE Direct accessories

- Self-consumption: 12V 30mA, 24V 20mA

- Working temperature: -30°C to +60°C

- IEC/EN certified

- Enclosure: IP43 (electronic components) / IP22 (connection area)

- Pollution Degree rating: PD3

- Dimensions: 186 x 130 x 70 mm

- Mounting dimensions: 175 x 75 mm

- Weight: 1.3kg

- 4 x mounting holes for ease of installation

This product is covered by a 5 year warranty
