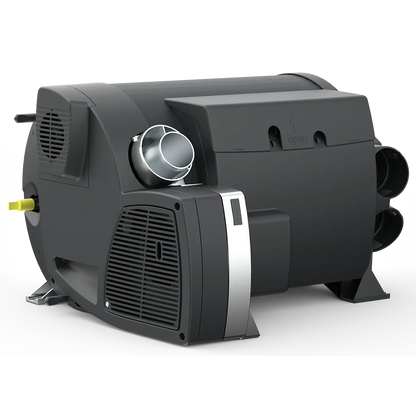

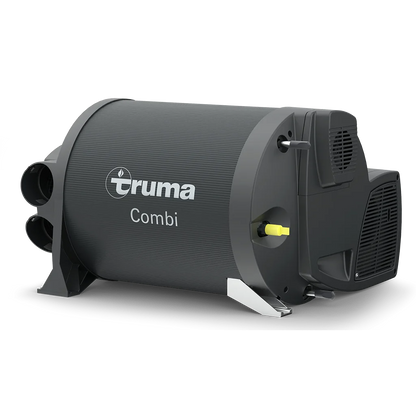

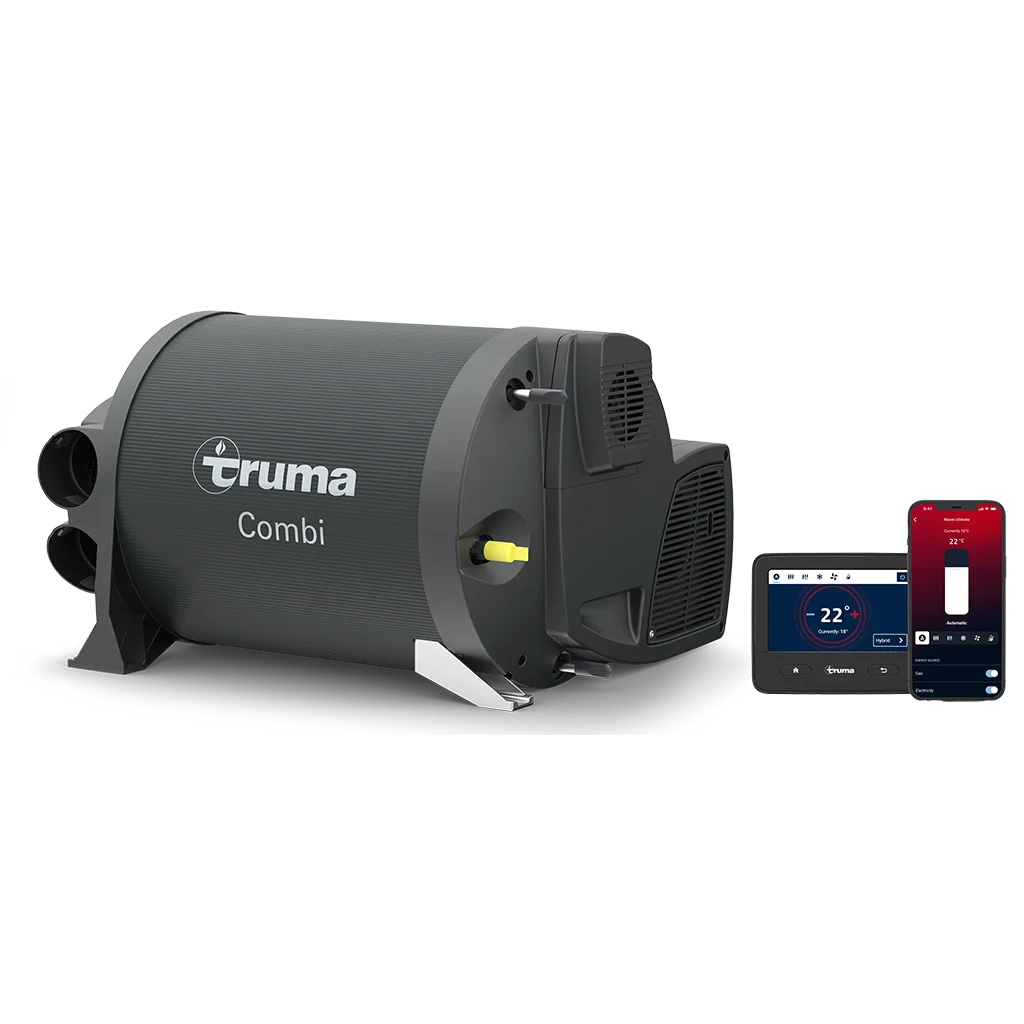

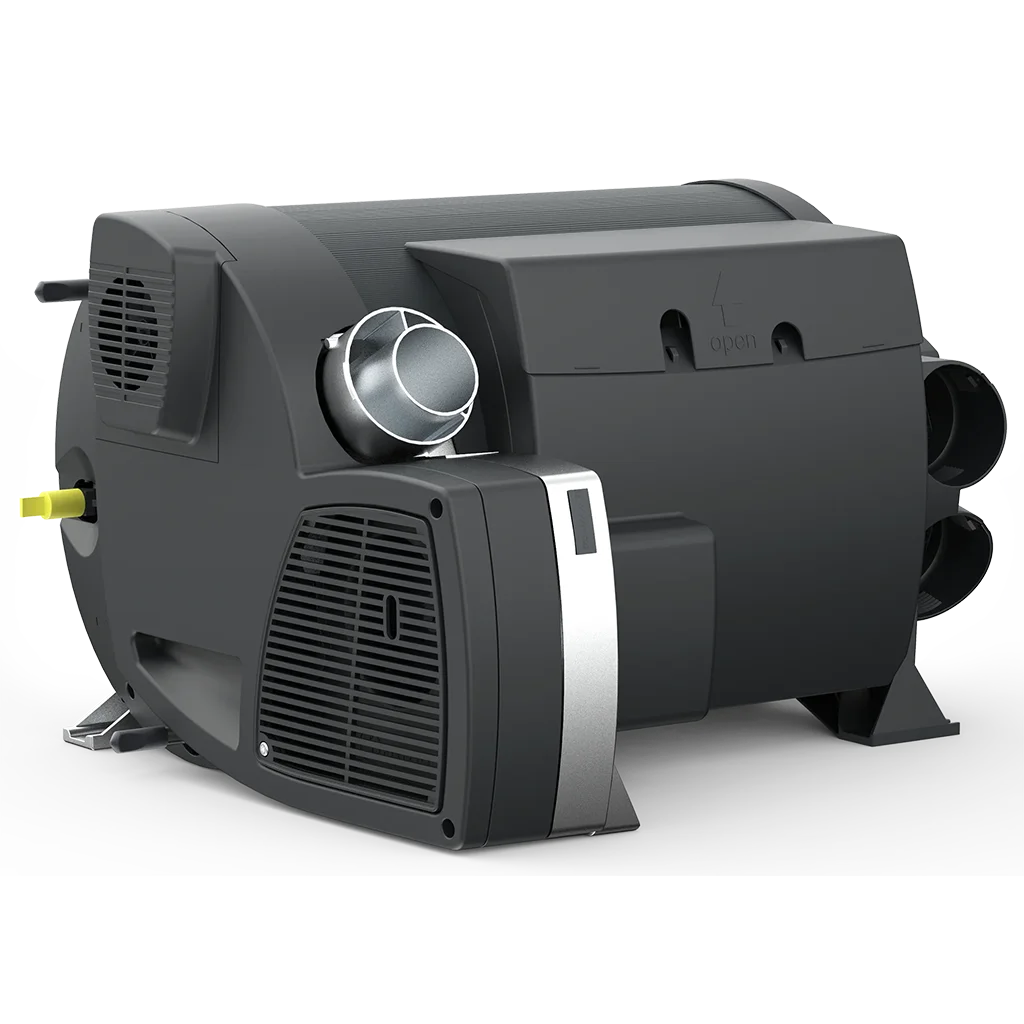

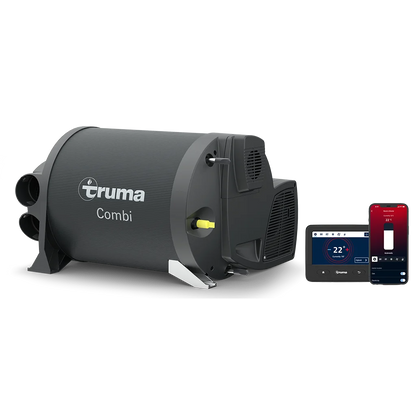

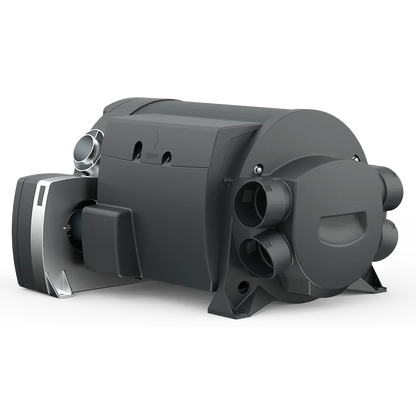

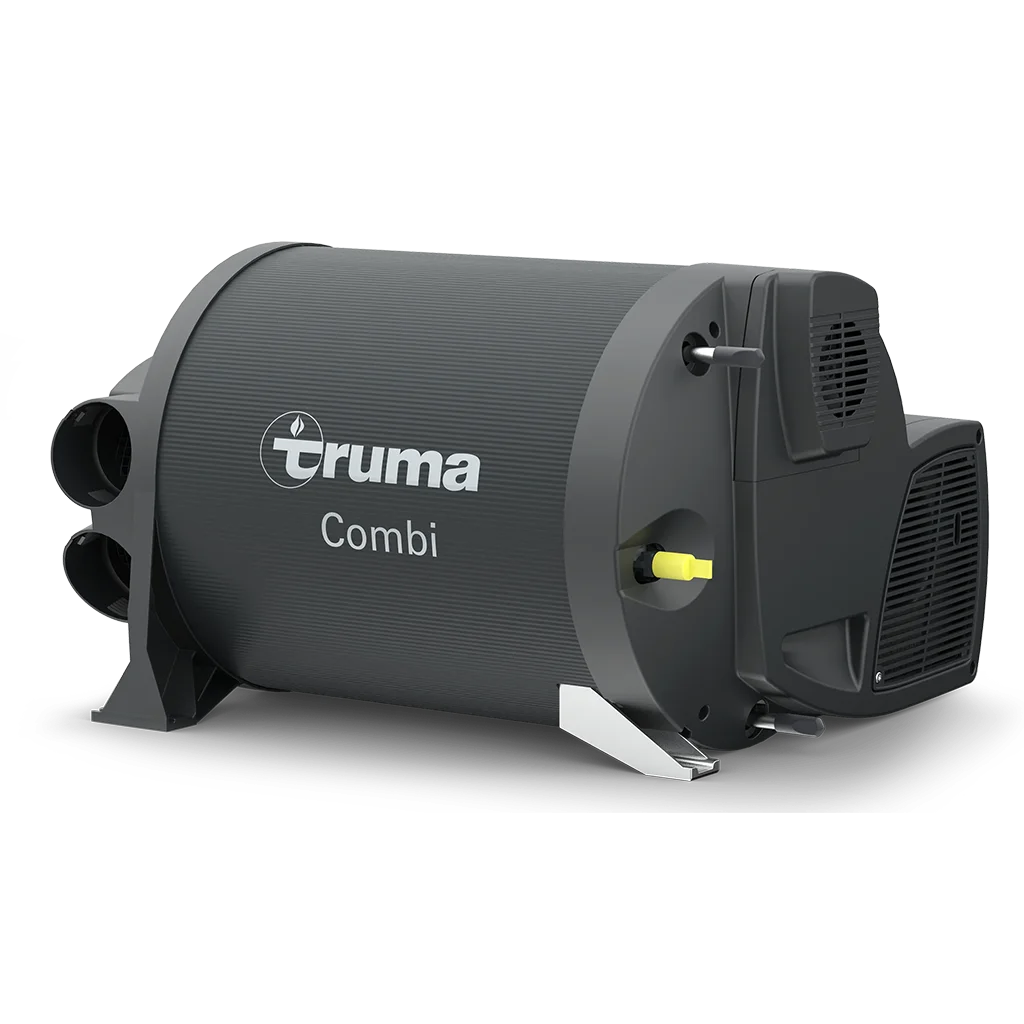

Truma Combi 4E Combination Heater with I-net X Control Panel (Gas, Electrical, Hot Water)

Truma Combi 4E Combination Heater with I-net X Control Panel (Gas, Electrical, Hot Water)

The truma combi 4E is a popular choice for heating both water and living spaces in your campervan, motorhome or caravan. the combi 4E is energy efficient and quiet in operation, and incredibly compact and lightweight for the performance it offers.

Featuring an integrated 10 litre stainless steel water tank, the combi 4E allows for independent heating of hot water in summer mode as well as both hot water and warm air in winter mode.

Kit contains:

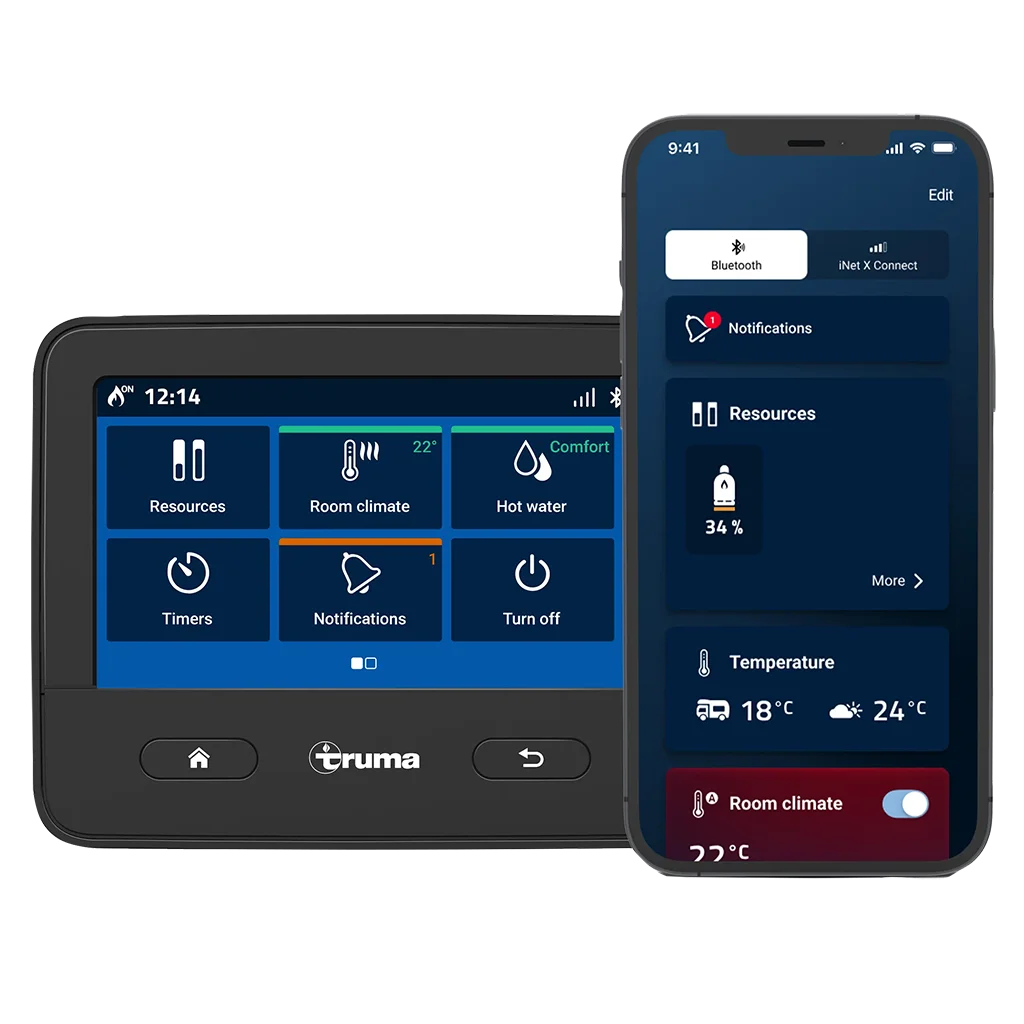

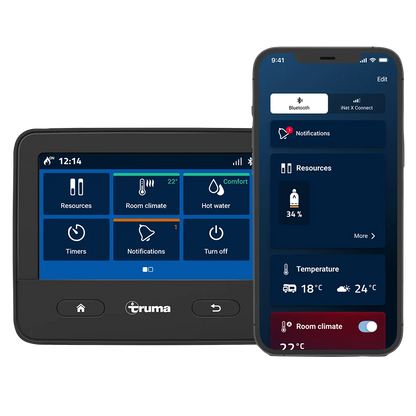

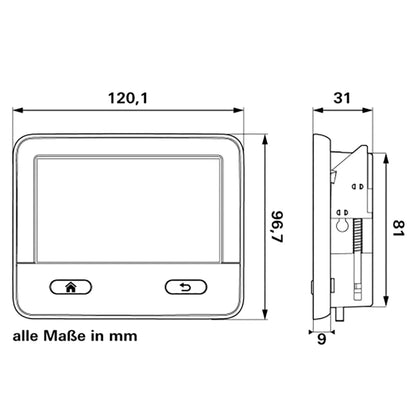

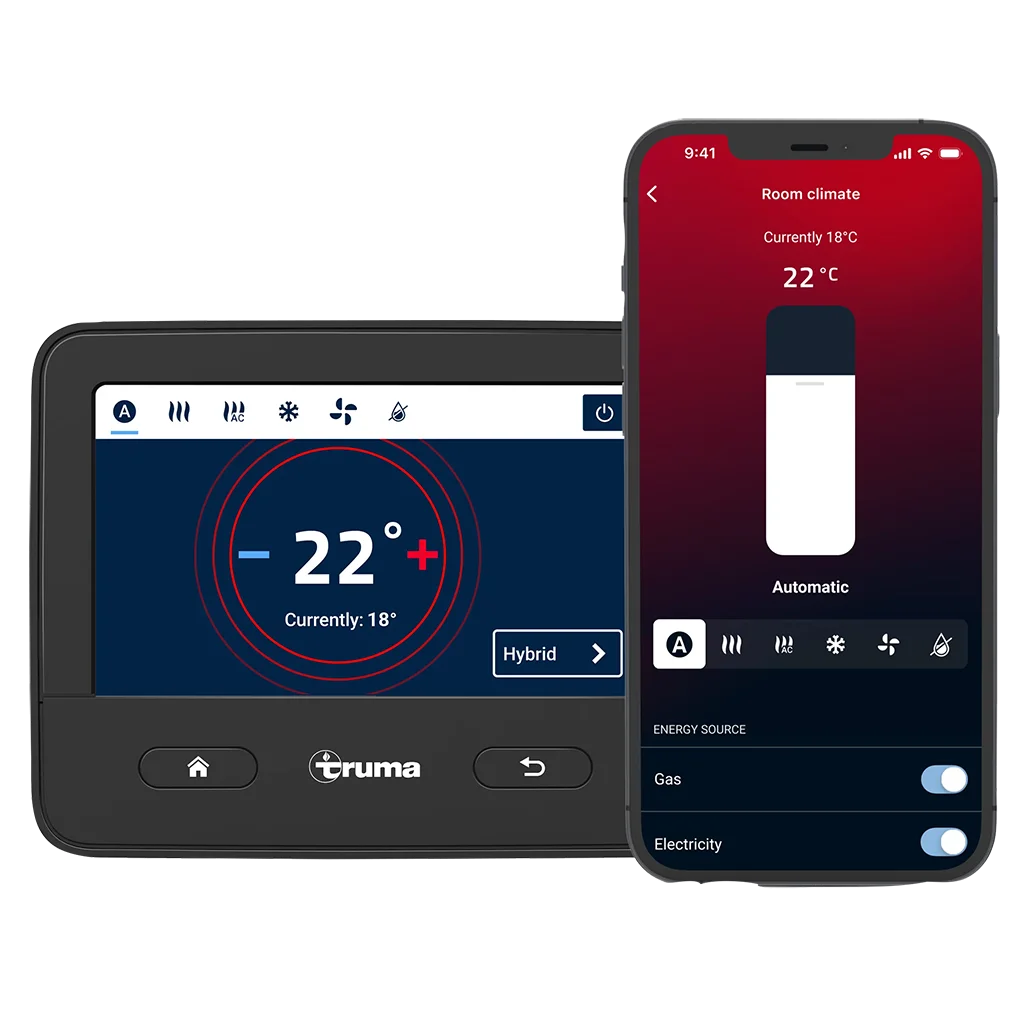

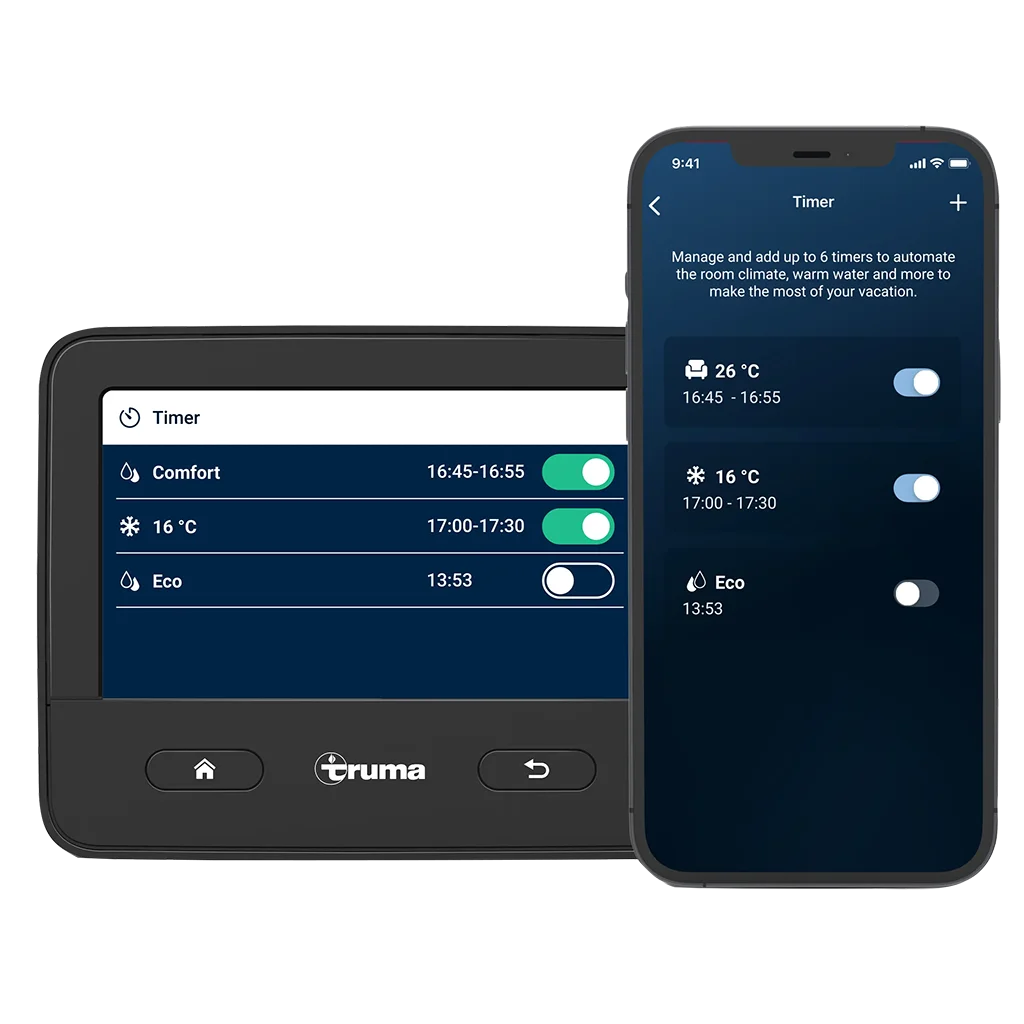

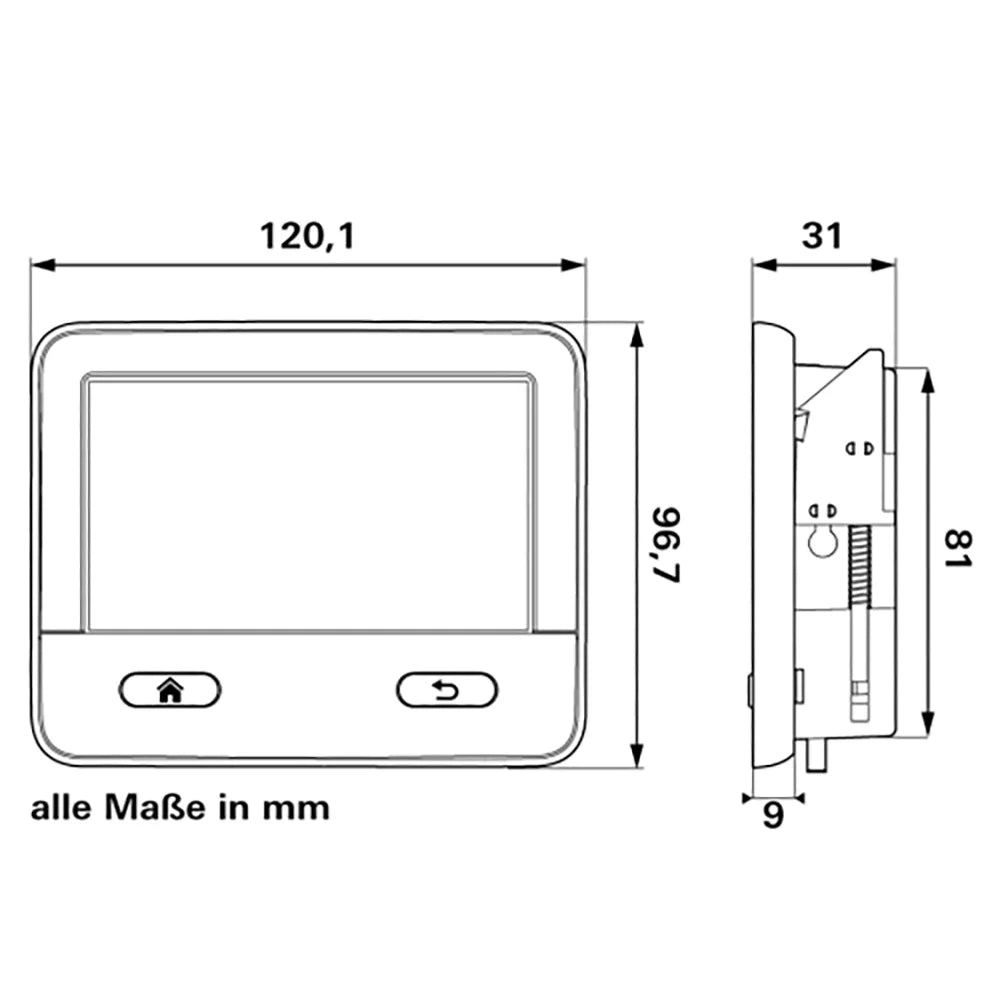

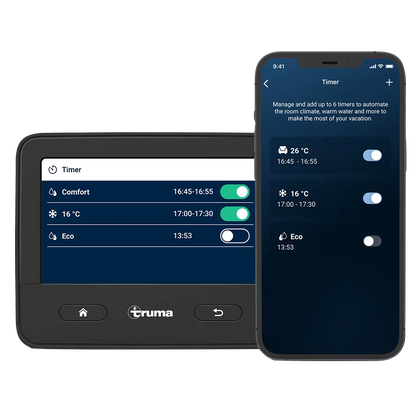

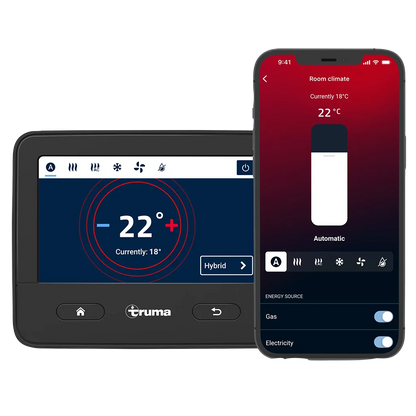

iNet panel,
Black cowl,

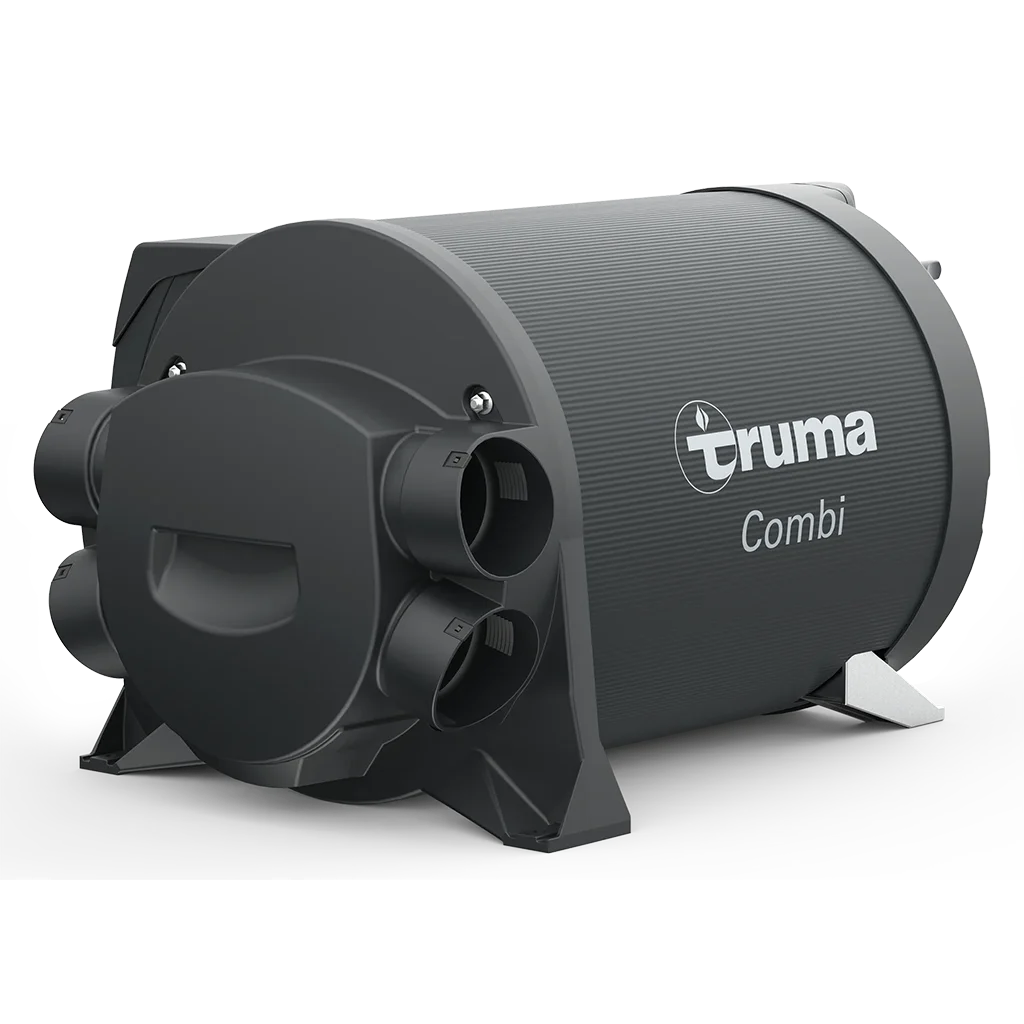

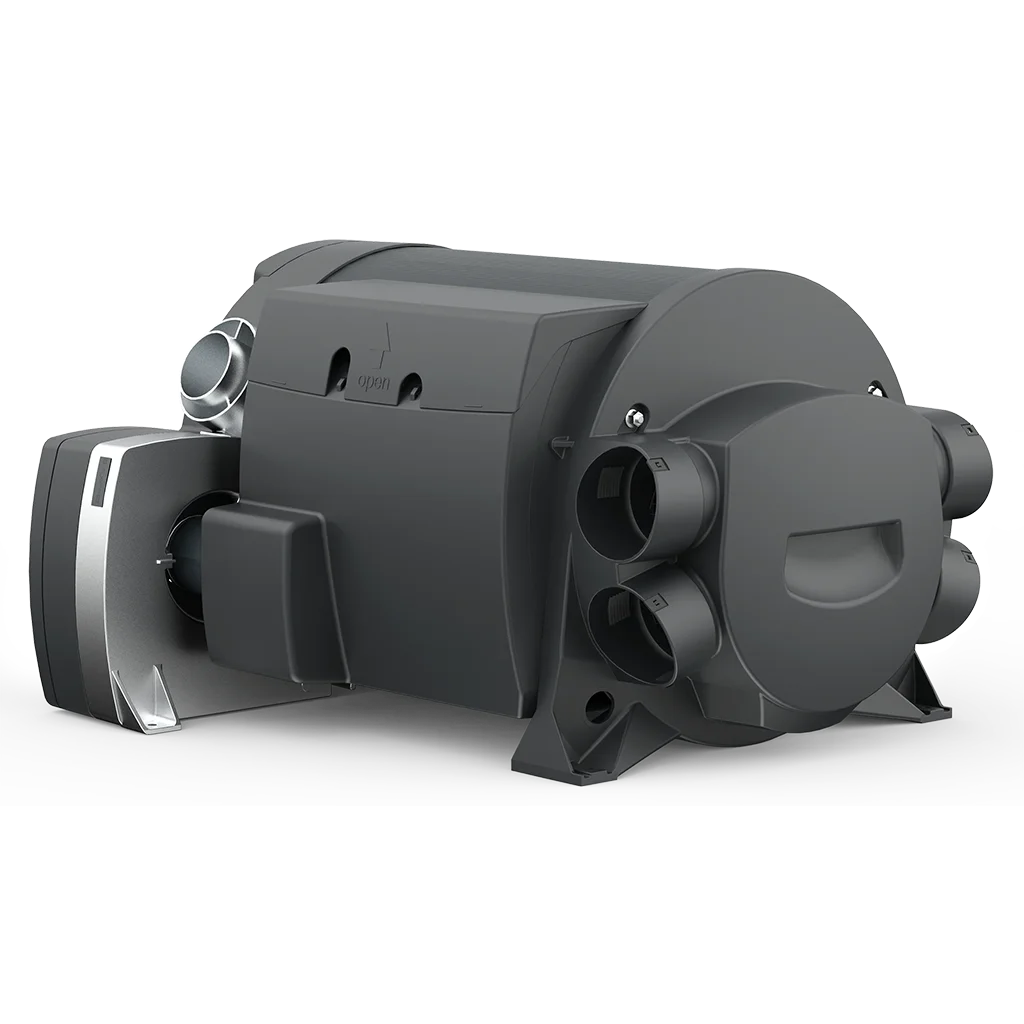

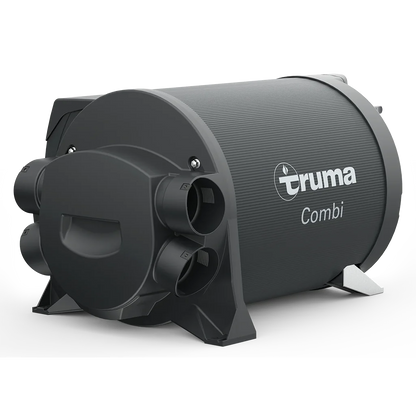

Combi 4E,
John Guest water fittings,

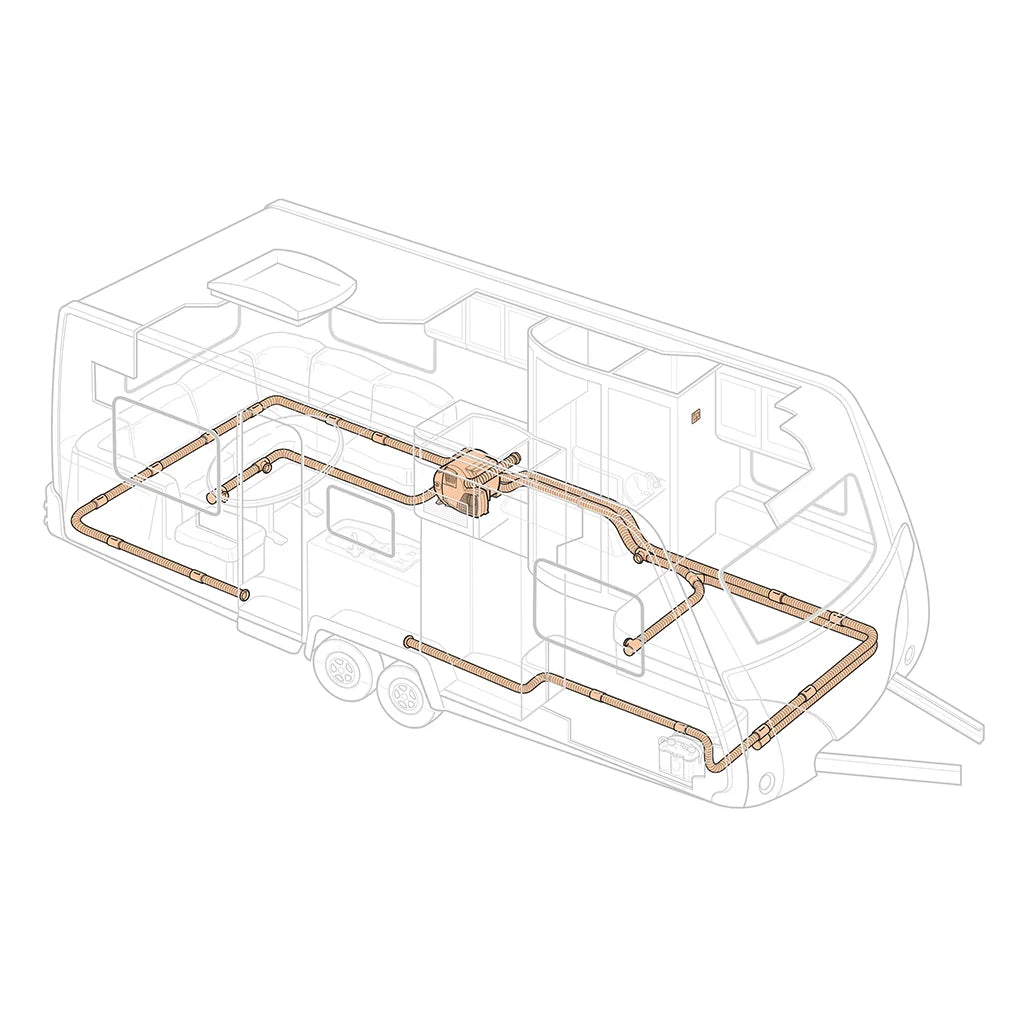

ducting & outlets sold separately

Spec:

• Energy sources: Propane / butane + electricity
• Operating pressure: 30 mbar
• Rated heat output in gas mode: 2000 W / 4000 W
• Rated heat output in electric mode: 900 W / 1800 W
• Rated heat output in mixed mode: max. 3800 W
• Fuel consumption: 160 335 g/h
• Power consumption (at 12 V): operation of heater and water container: max. 6.5 A for short periods (average approx. 1.2 A)
• Power consumption (at 12 V): heating water container: max. 0.4 A
• Power consumption (at 230 V): 3.9 A / 7.8 A
• Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h
• Quiescent current
• Quiescent current consumption CP plus (optional): 3 mA
• FrostControl heating element (optional): approx. 1 mA
• Water capacity: 10 litres
• Pump pressure: max. 2.8 bar
• System pressure: max. 4.5 bar
• Heating time (from approx. 15 °C to approx. 60 °C): Water container: approx. 23 min.
• Heating time (from approx. 15 °C to approx. 60 °C): Heater and water container acc. to EN 15033
• approx. 80 min.
• Weight: approx. 15.5 kg
• Dimensions (L x W x H): 510 x 450 x 300 mm
• Installation dimensions (minimum dimensions) additional space must be provided for the gas connection. water connections and drain valve (L x W x H) depending on the installation situation): 540 x 500 x 350 mm

**Please note in addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.

• Please note for warranty and safety issues all appliances must be installed by a qualified engineer. In the event of a warranty claim Truma may insist on proof of installation by a qualified engineer, failure may result in warranty claims being rejected.
