Truma Combi 2E Combination Heater with CP+ Control Panel (Gas, Electrical, Hot Water)

Truma Combi 2E Combination Heater with CP+ Control Panel (Gas, Electrical, Hot Water)

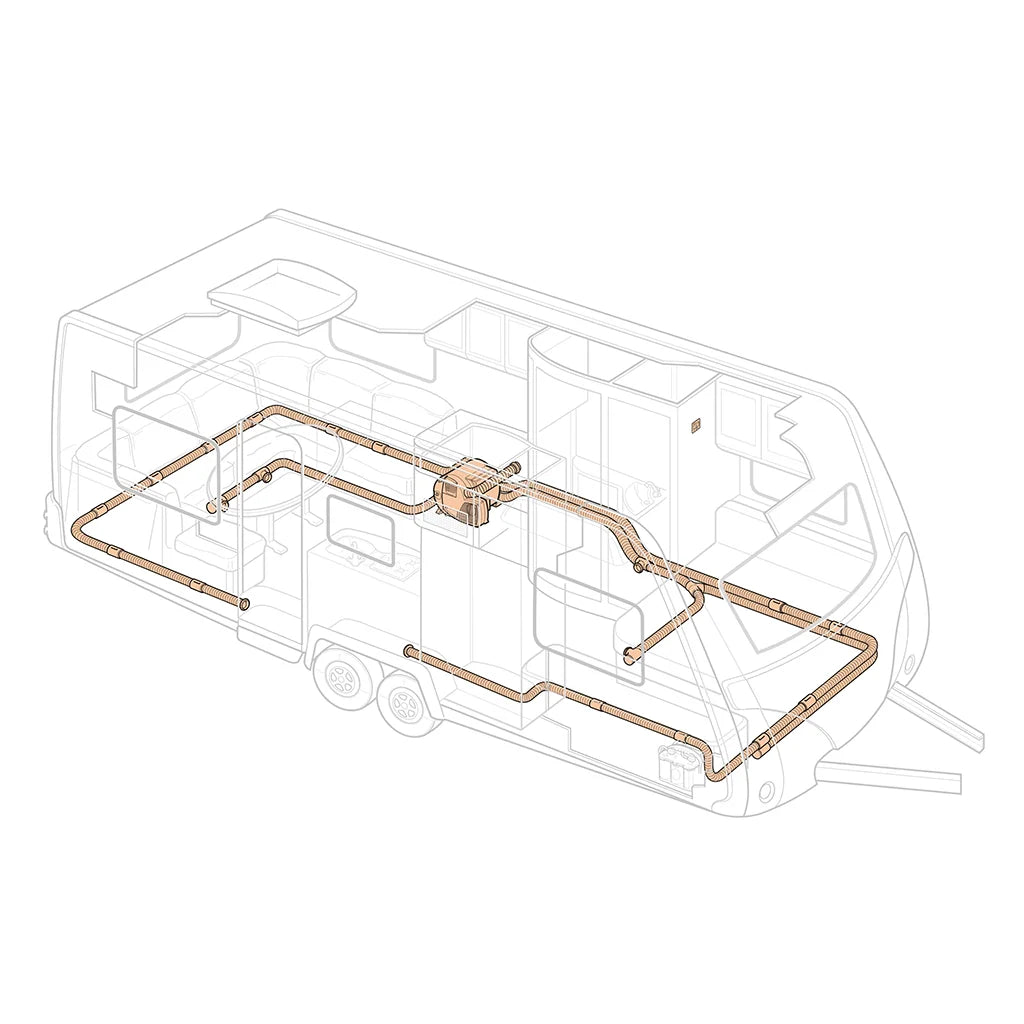

The Combi 2E water boiler and air space heater from Truma is an ideal entry-level choice for heating both water and living spaces in your motorhome campervan or caravan.

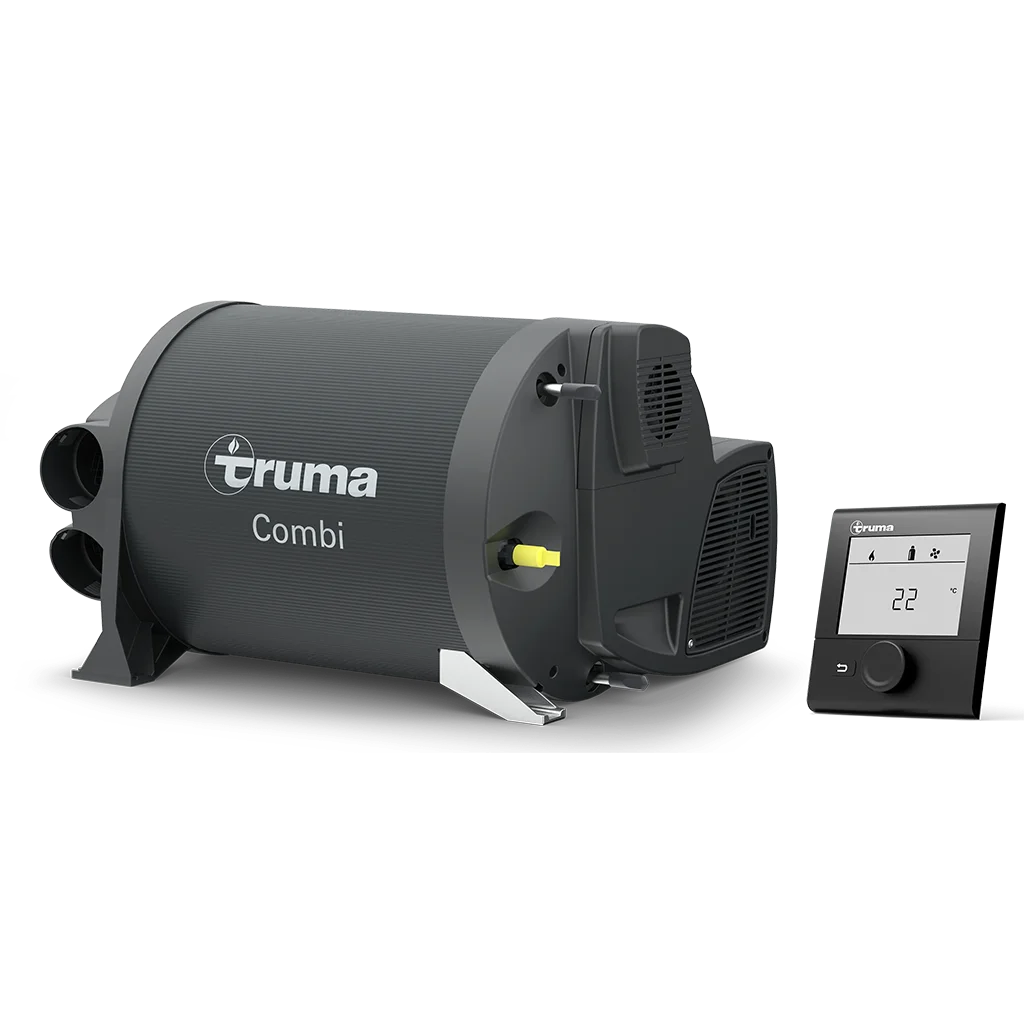

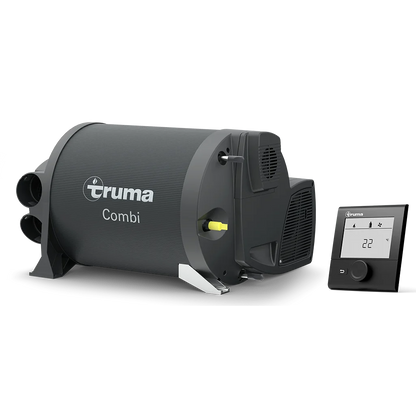

The Combi 2E  kit contains:

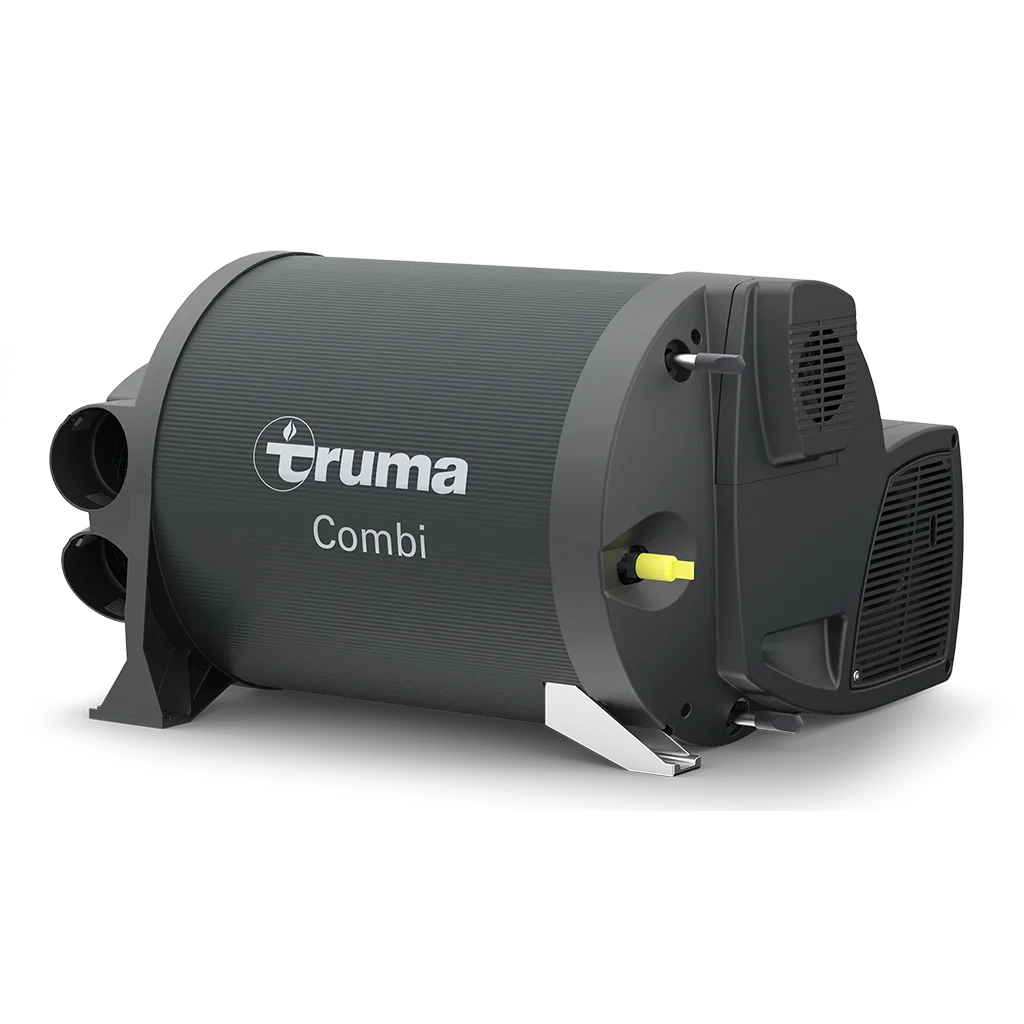

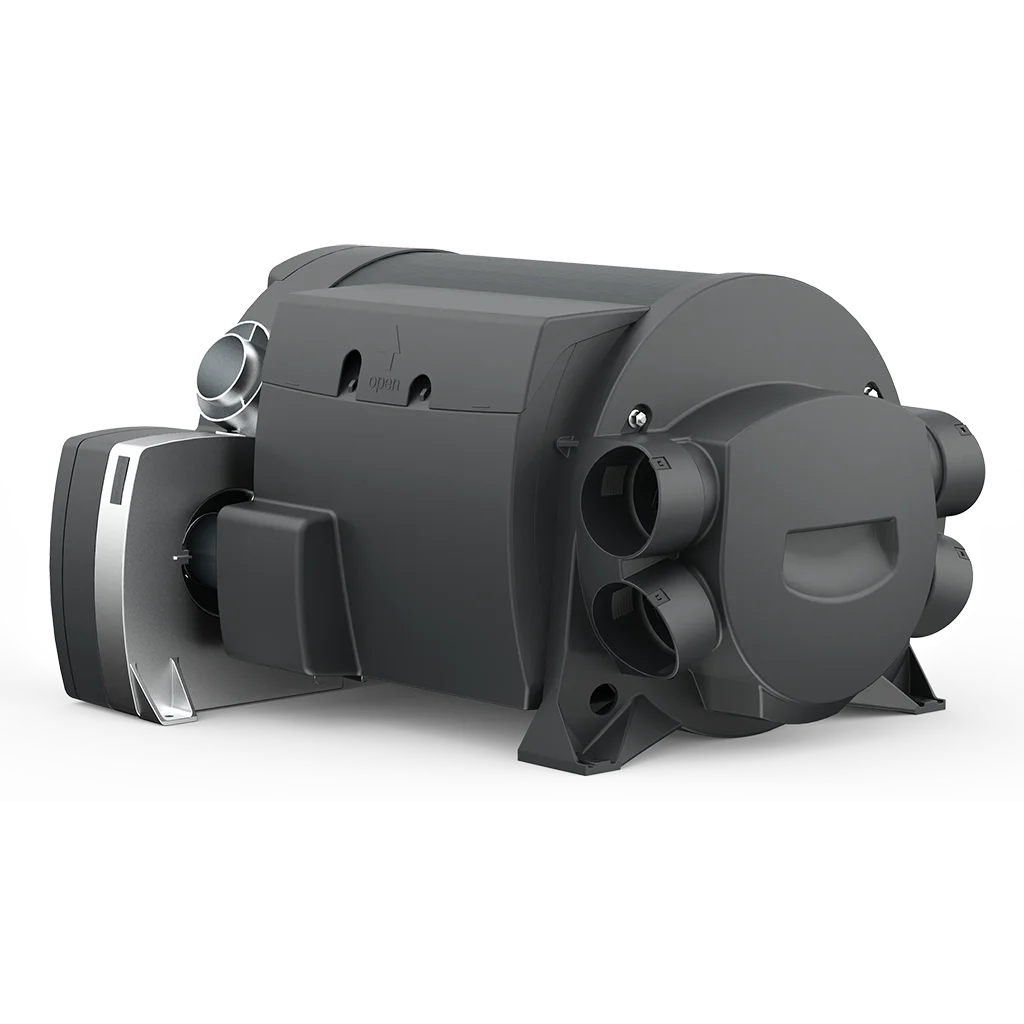

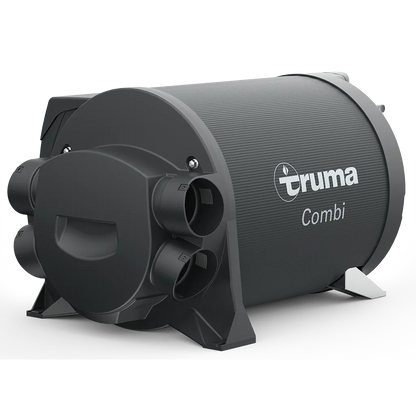

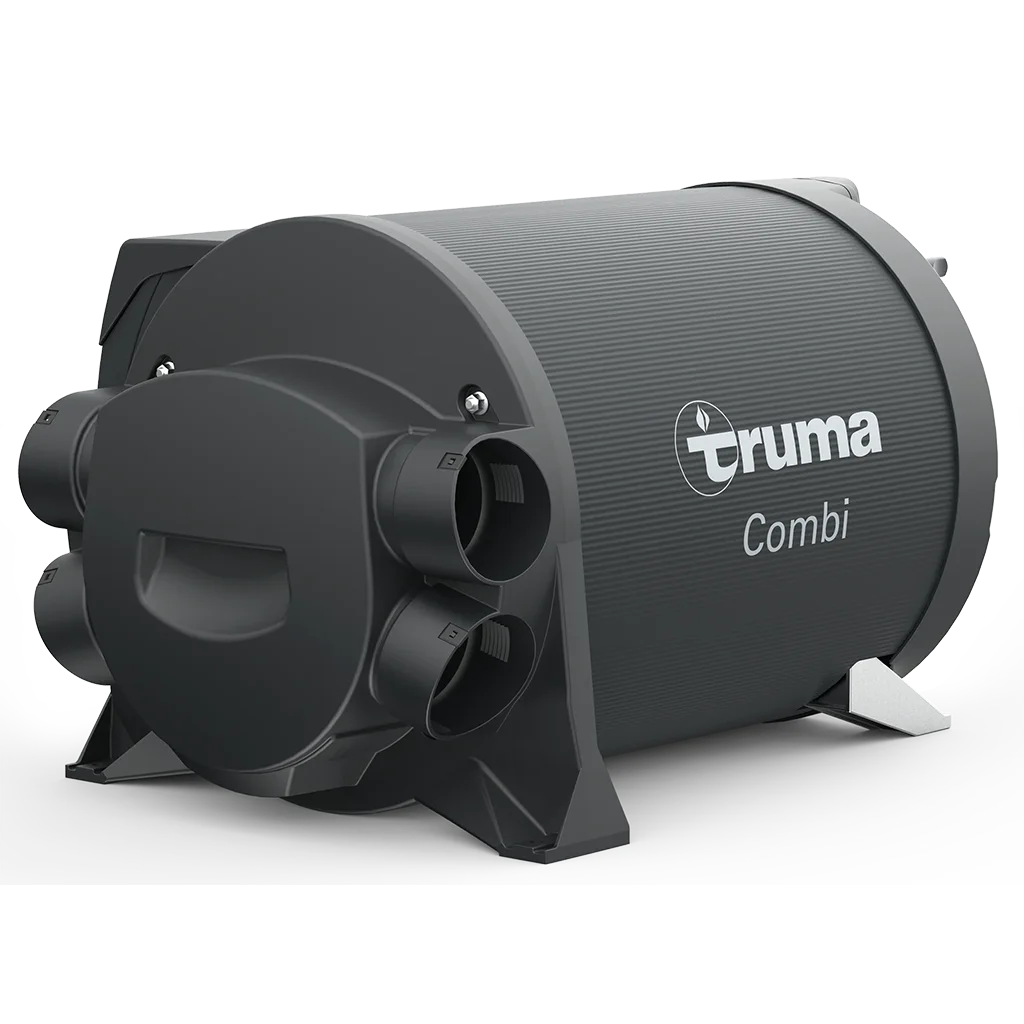

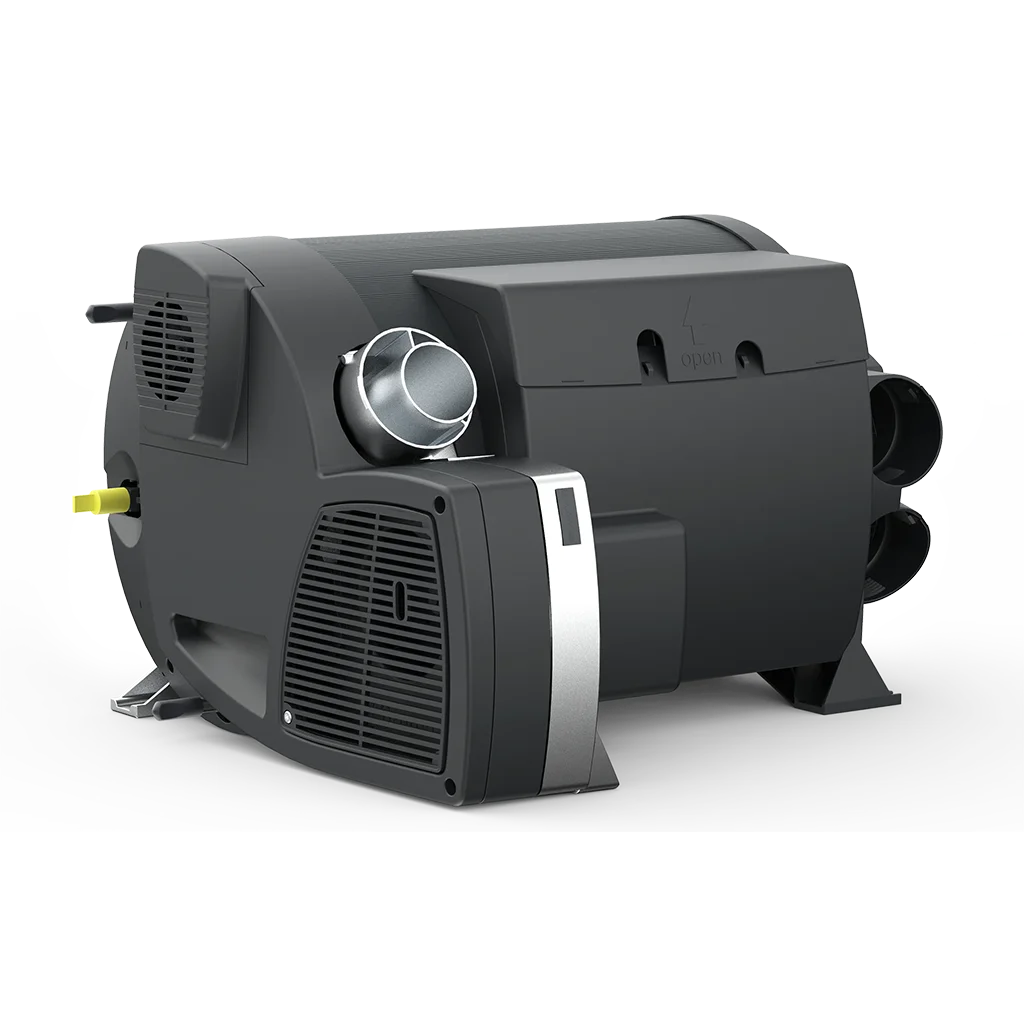

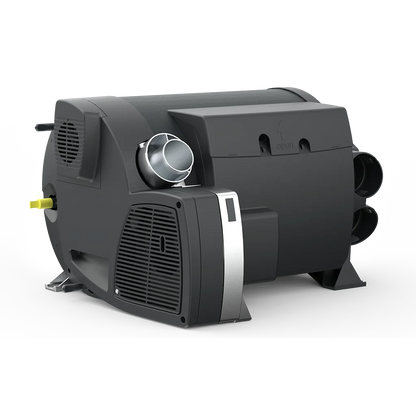

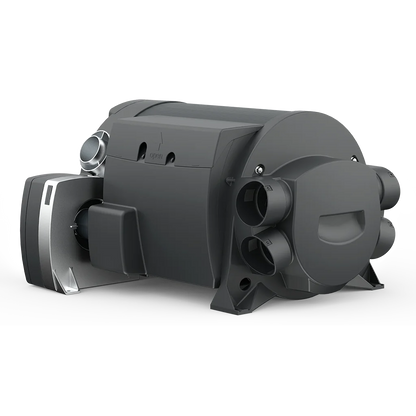

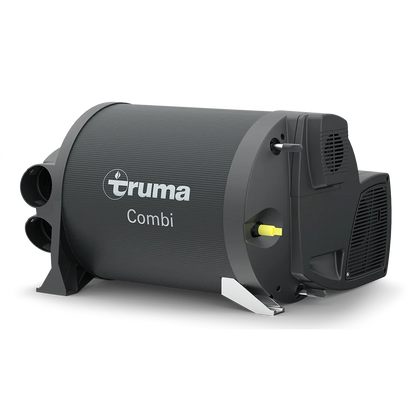

Truma Combi 2E LPG gas and 230V electric unit

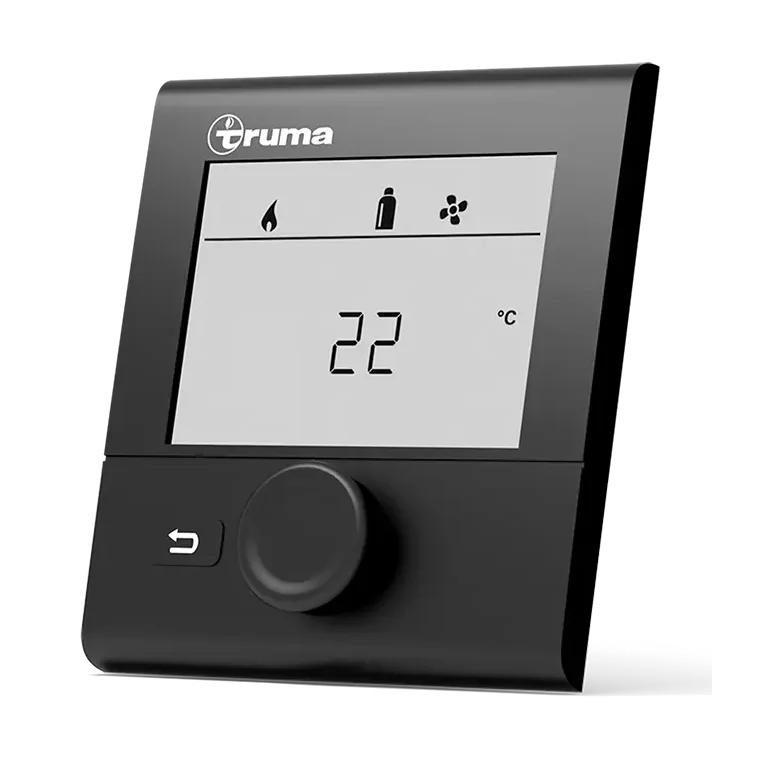

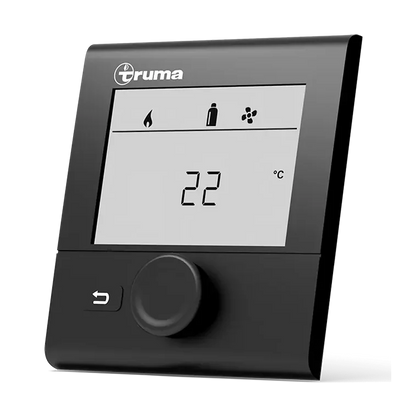

Truma CP Plus digital control panel
John Guest water connection kit
ZR80 exhaust ducting 1m
ZRS clip
Truma Combi CP Plus cable 6m
Side wall cowl in black
JST electrical ends
Installation and operation manuals

Technical Specifications:

Heater model: Truma Combi 2E

Dimensions H (mm): 300

Dimensions W (mm): 450

Dimensions D (mm): 510

Installation dimensions (H x W x D): 350 x 500 x 540mm

Weight (when empty of water): 15.1kg

Heating time (from 15°C to 60°C) (Water only): Approx. 20min.

Heating time (from 15°C to 60°C) (Heater + Water): Approx. 80min.

Rated thermal output (Electric): 980 W / 1960 W

Rated thermal output (Gas): max. 1950 W

Rated thermal output (Electric & Gas Combined): 3900 W

Fuel consumption (Gas): 130 g/h

Water capacity: 10 litres

Air flow rate: Max. 287 m3/h

Power consumption (at 230V): 3.9A / 7.8A

Power consumption (at 12V): Heating up boiler 0.2A up to temporary max. of 5.6A (average approx. 1.1A)

Water pressure: MAX 2.8 Bar

**Please note in addition to the installation dimensions, extra space must be provided as appropriate for the gas and water connections as well as the drain valve.

• Please note for warranty and safety issues all appliances must be installed by a qualified engineer. In the event of a warranty claim Truma may insist on proof of installation by a qualified engineer, failure may result in warranty claims being rejected.
