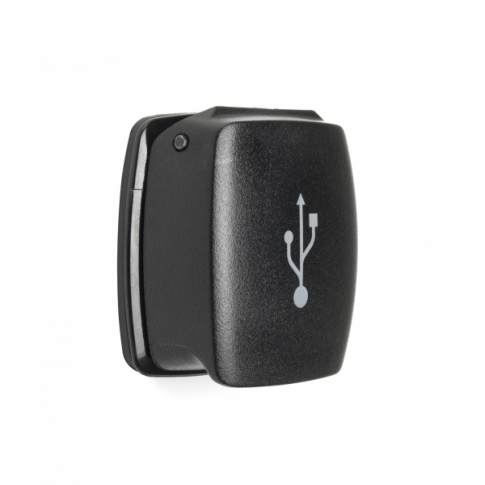

Scanstrut SC-USB-F1 Flip Pro dual USB-A & USB-C charging socket

Scanstrut SC-USB-F1 Flip Pro dual USB-A & USB-C charging socket

Part number: SC-USB-F1

Ultra-fast USB charging in a compact, waterproof design made for life at sea. Compatible with both 12V and 24V systems, it features 1x USB-A and 1x USB-C port, giving you the ultimate flexibility to charge multiple devices at once—including phones, tablets, and even laptops.

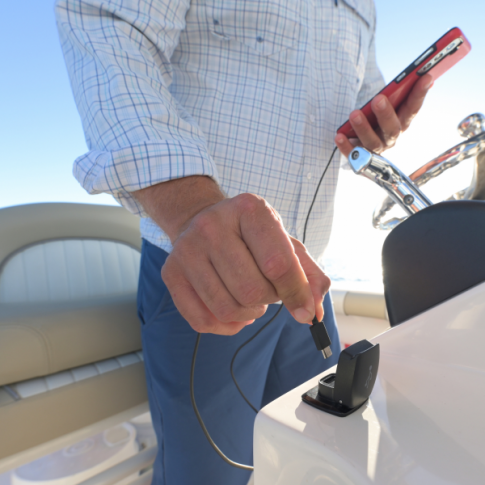

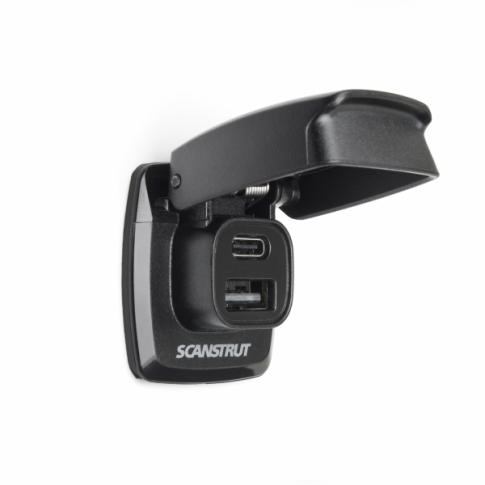

Engineered for harsh marine environments, Flip Pro features a spring-loaded, IPX4-rated cover that stays shut to keep water and dust out, and flips open to lock cables in securely when charging. Built from marine-grade, UV-resistant materials with a 316 stainless steel hinge, it’s fully washdown-ready and built to last.

Key Features:

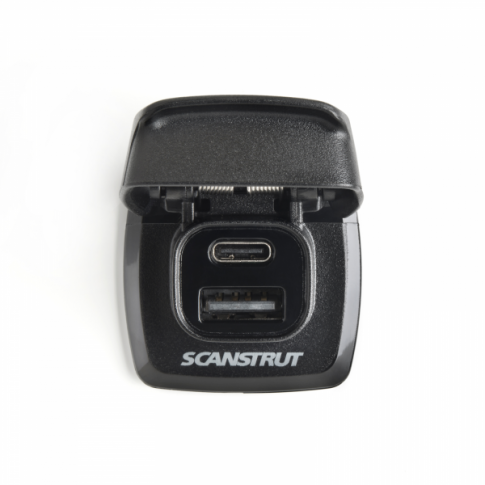

• Dual USB Ports – 1 x USB-C and 1 x USB-A for flexible charging options
• Fast Charging – Up to 60W USB-C output on 24V systems, perfect for laptops

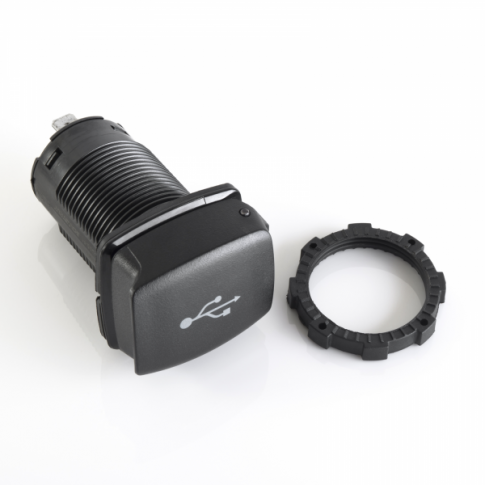

• Compact & Retrofit-Friendly – Fits a standard 29mm USB mounting hole
• IPX4 Waterproof – Washdown-ready when cover is closed
• Marine-Grade Construction – UV-resistant body, corrosion-resistant internals

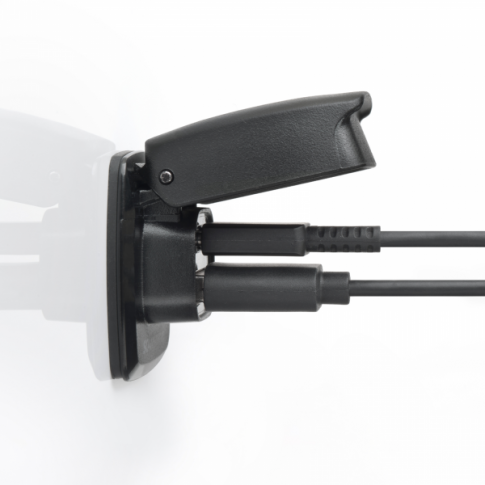

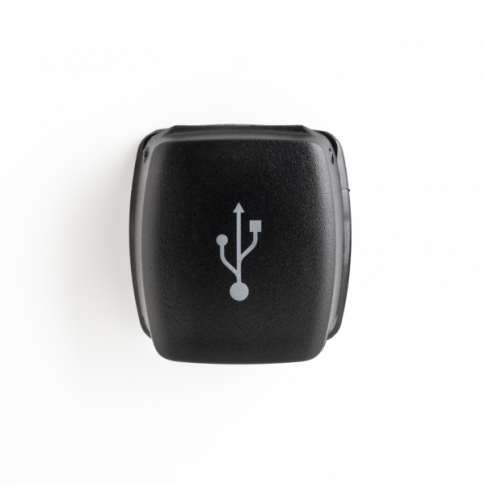

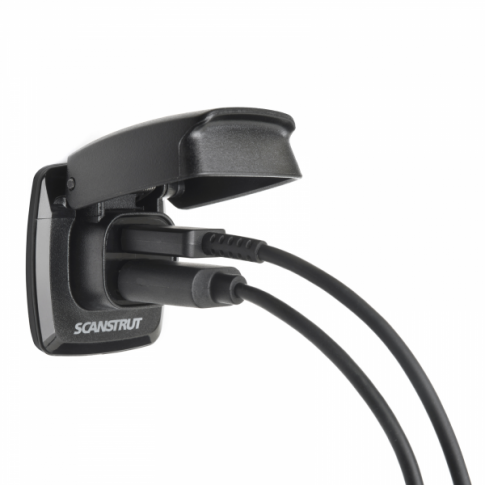

• Spring-Loaded Cover – Locks shut for protection, locks open to secure cables
• Universal Compatibility – Charge up to 2 devices simultaneously

Electrical Performance:

• Input Voltage: 10–32V DC (12/24V systems)
• USB-C Output:
  • 12V system: 36W max
  • 24V system: 60W max
• USB-A Output:
  • 36W max
• Max Input Current: 6A (10A fuse recommended)
• Standby Power Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, RoHS

What’s Included:

• 1 × Scanstrut SC-USB-F1 Flip Pro USB Charger
• Mounting hardware
• Installation instructions

Applications:

• Phones, tablets & iPads

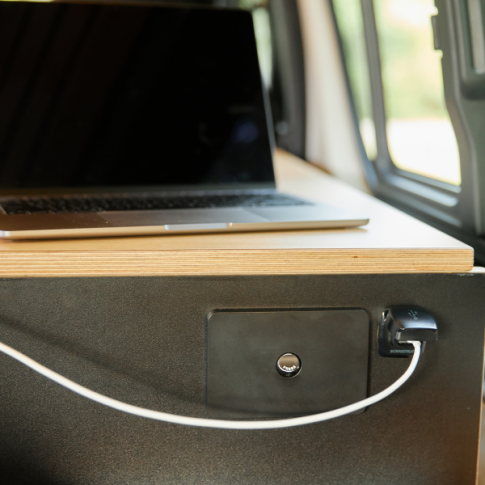

• USB-C laptops & ultrabooks
• Action cameras, drones, and GPS units

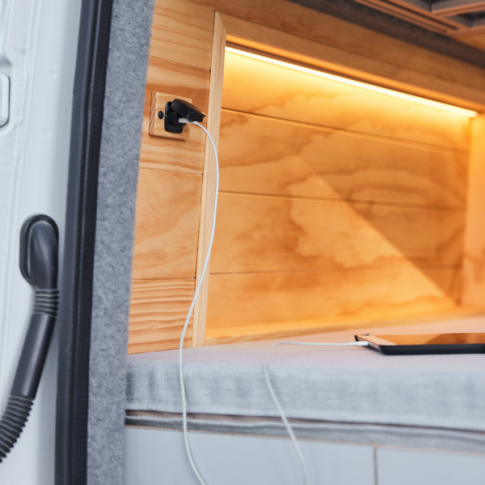

• Marine & automotive 12V/24V systems

Specifications:

• Input Voltage: 10-32VDC (12/24V system)
• Max Input Current: 6A
• Type-C Max Output 12V system: 5V⎓3A, 9V⎓3A, 12V⎓3A
• Type-C Max Output 24V system: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A
• Type-A Max Output: 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A
• Stanby Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, RoHS
