CBE C-Line triple. 12V outlet + USB A & C socket + 230V socket kit (silver or black)

CBE C-Line triple 12V outlet + USB A & C socket + 230V socket kit (silver or black)

Consists of 12 volt outlet with cover flap, 230V socket and 1x C-Line 18W USB-C socket plus 2.4A USB-A socket.

Comes with 1x 34mm backbox (sockets can be installed with or without the backboxes)

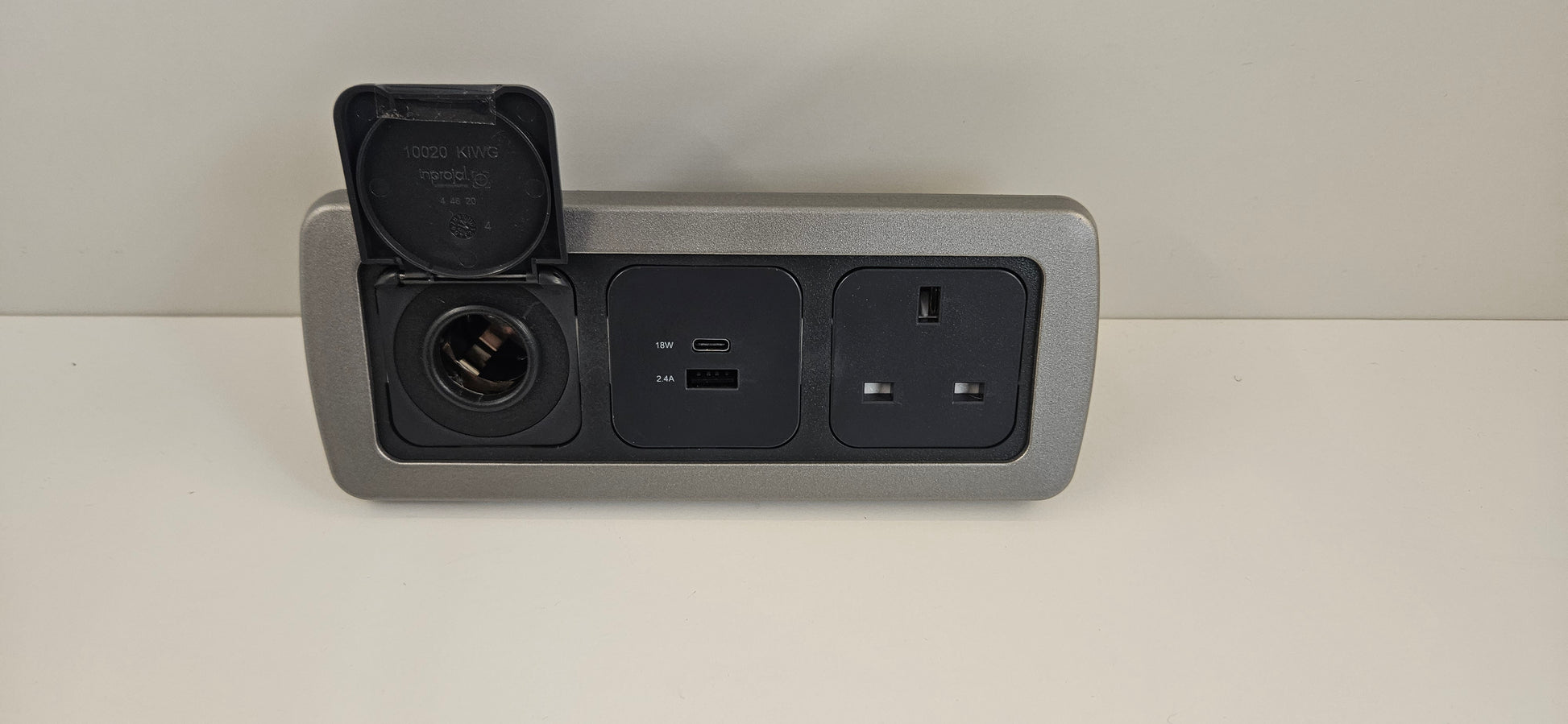

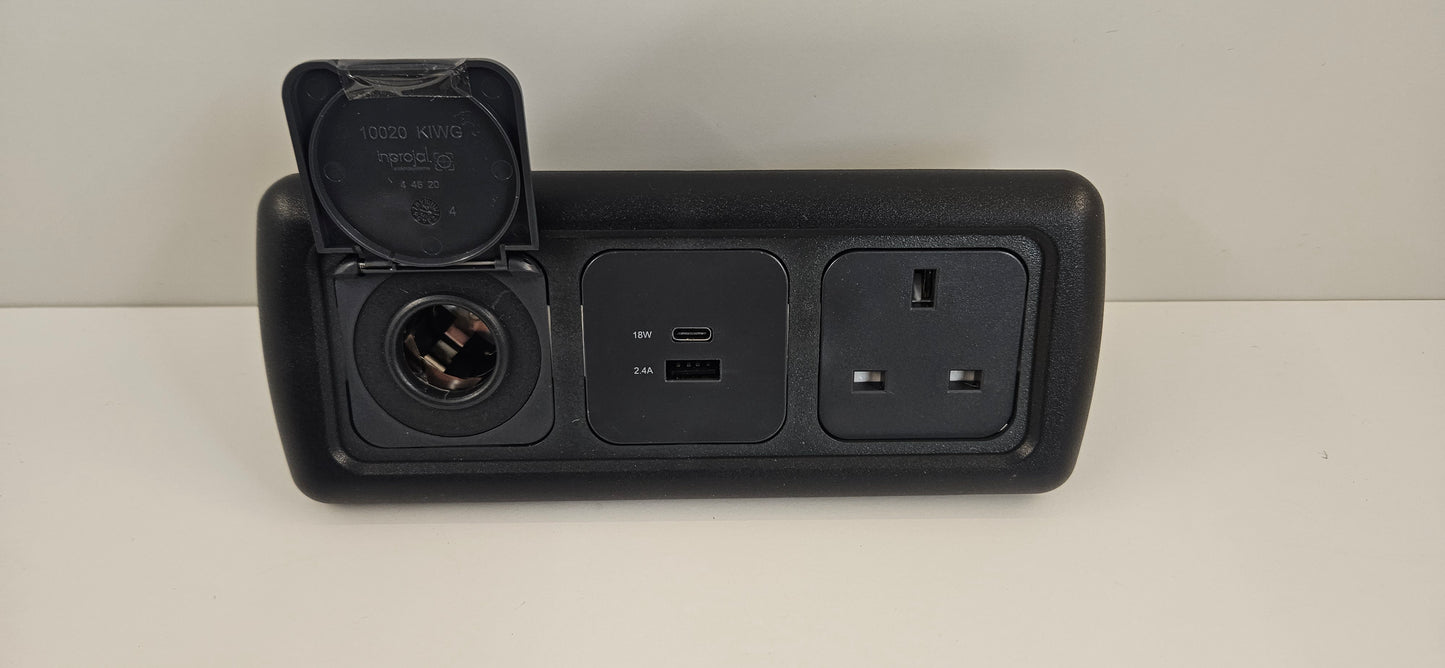

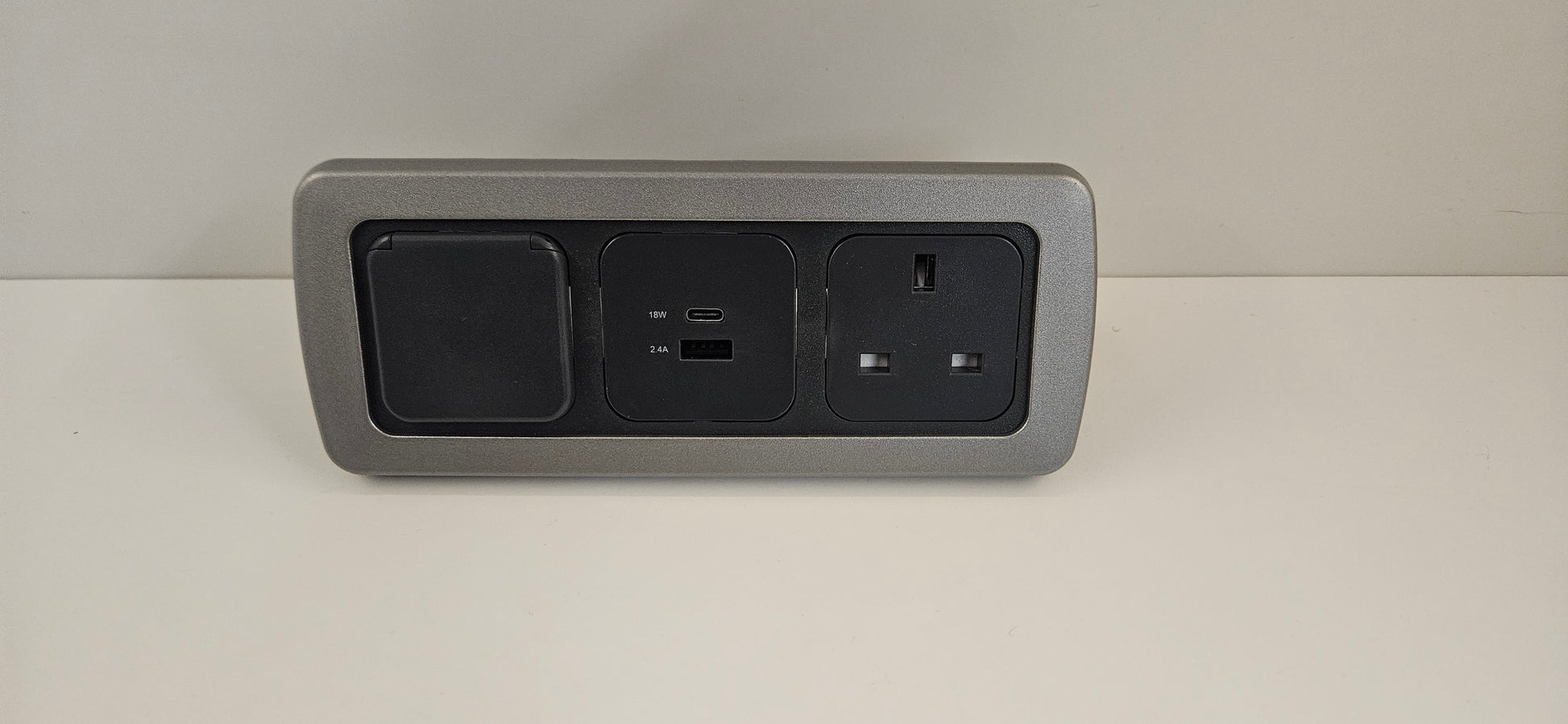

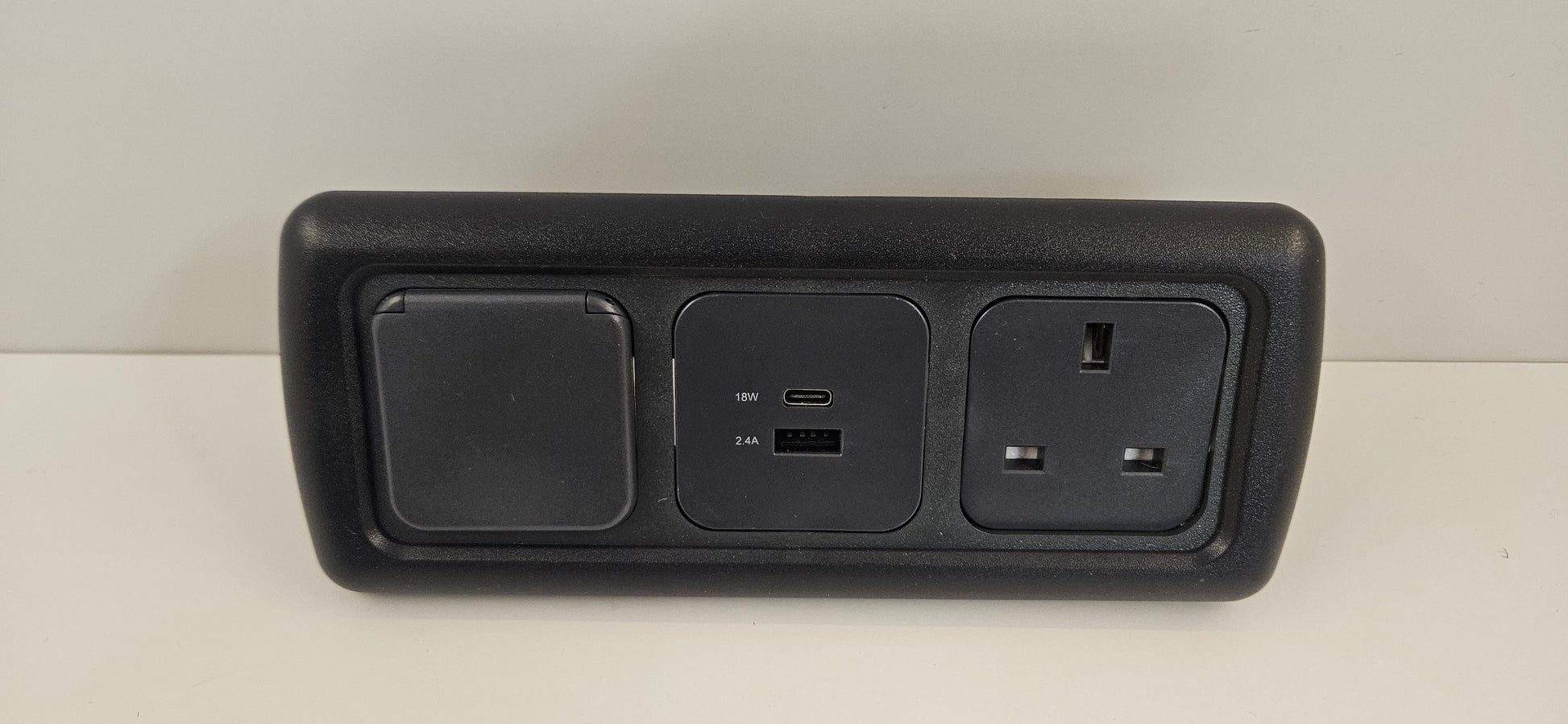

Also includes silver or black CBE/C-Line surround as shown.

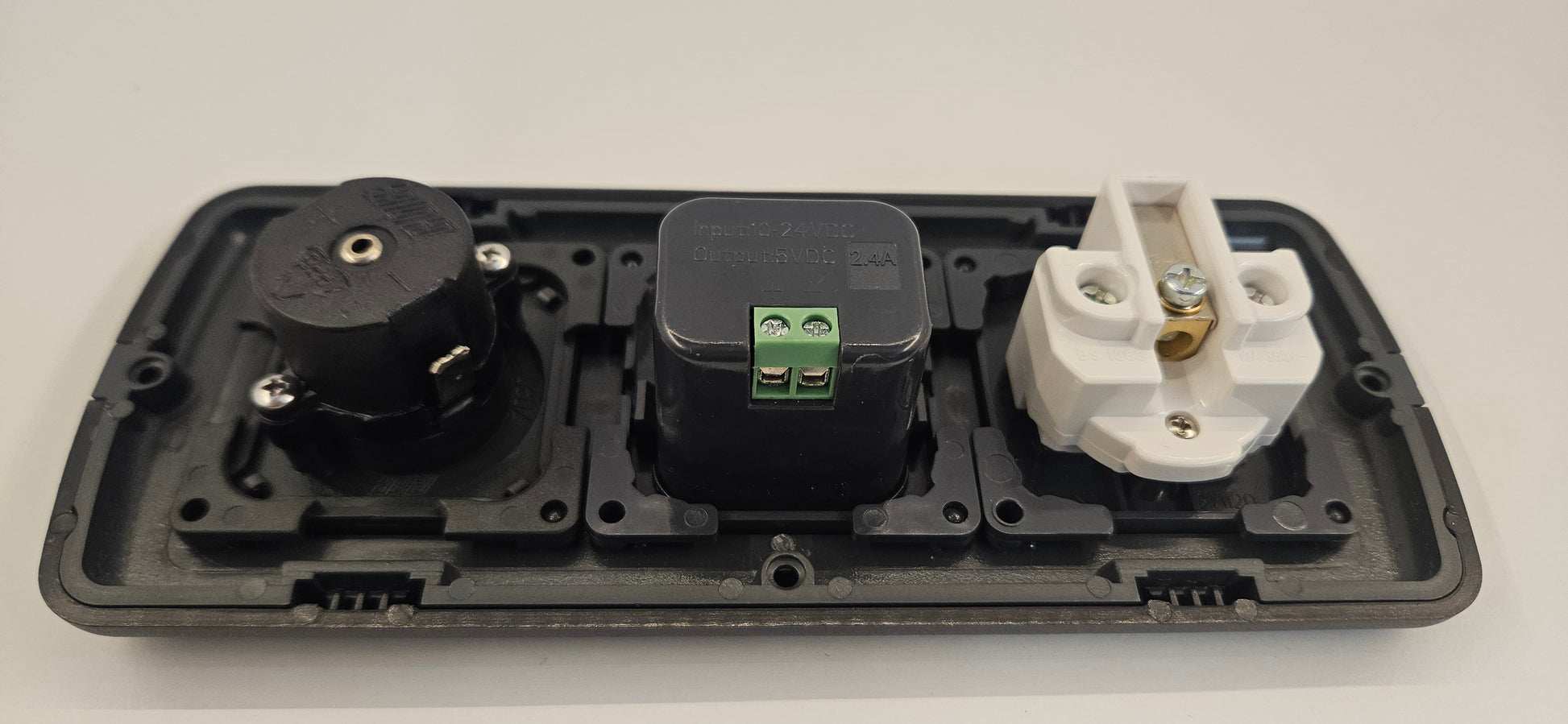

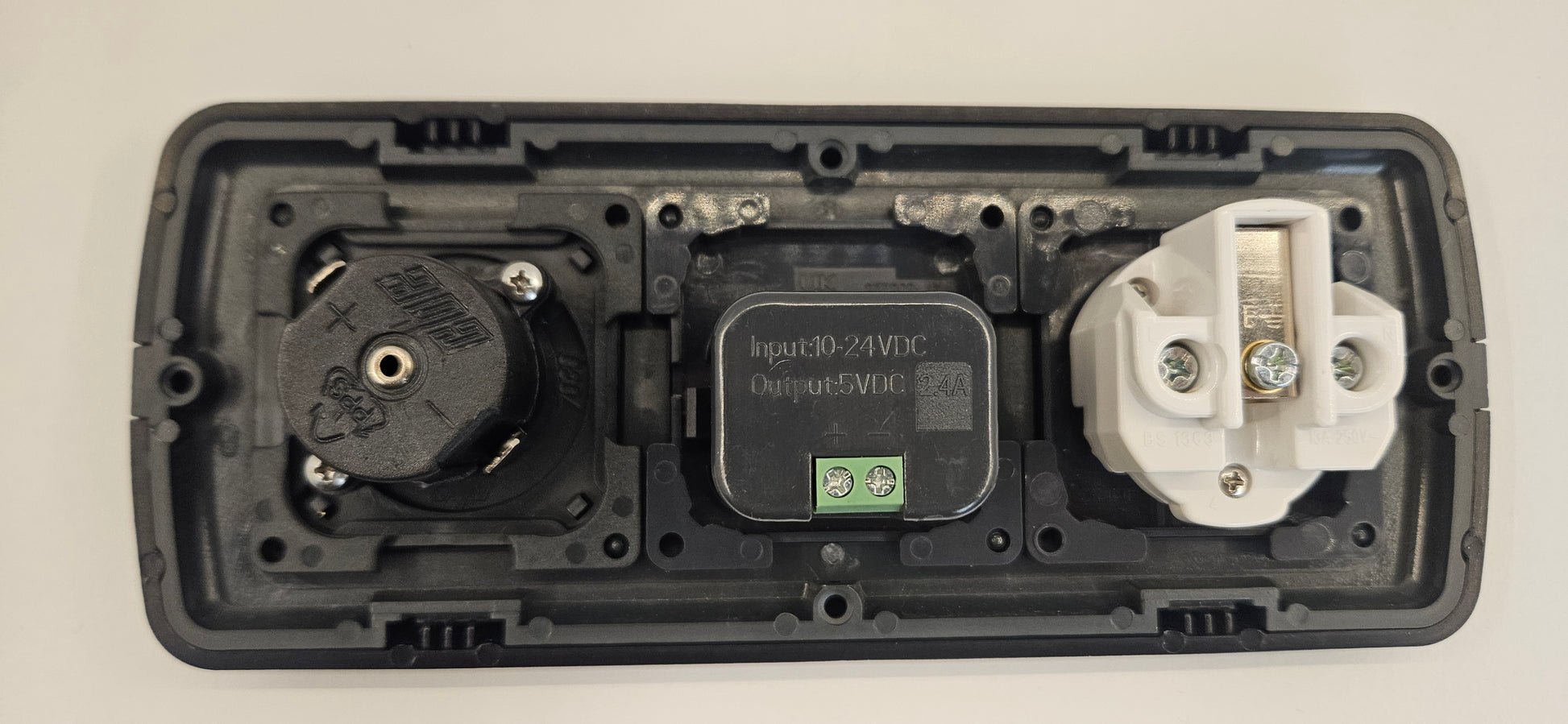

Connections: Screw terminals on rear of USB and 230V sockets. Crimp (female spades) 12V outlet.

12 volt outlet with cover flap. Also know as a cigar/cigarette style socket. Often used for powering 12v TV, air pump, coolbox, heater up to 6amps

The surround frame is made of 2 two parts, the support frame screws to your cabinet/wall (screws included) and then the faceplate clicks into the support frame to give a sylish and clean look.

The triple frame is 193mm x 79mm & 10mm deep

Note: The USB outlet requires 30mm or greater depth for mounting.

The 12v outlet requires 30mm or greater depth for mounting.

The 230v socket requires 25mm or greater depth for mounting. But if using the backbox a minimum of 38mm is required
