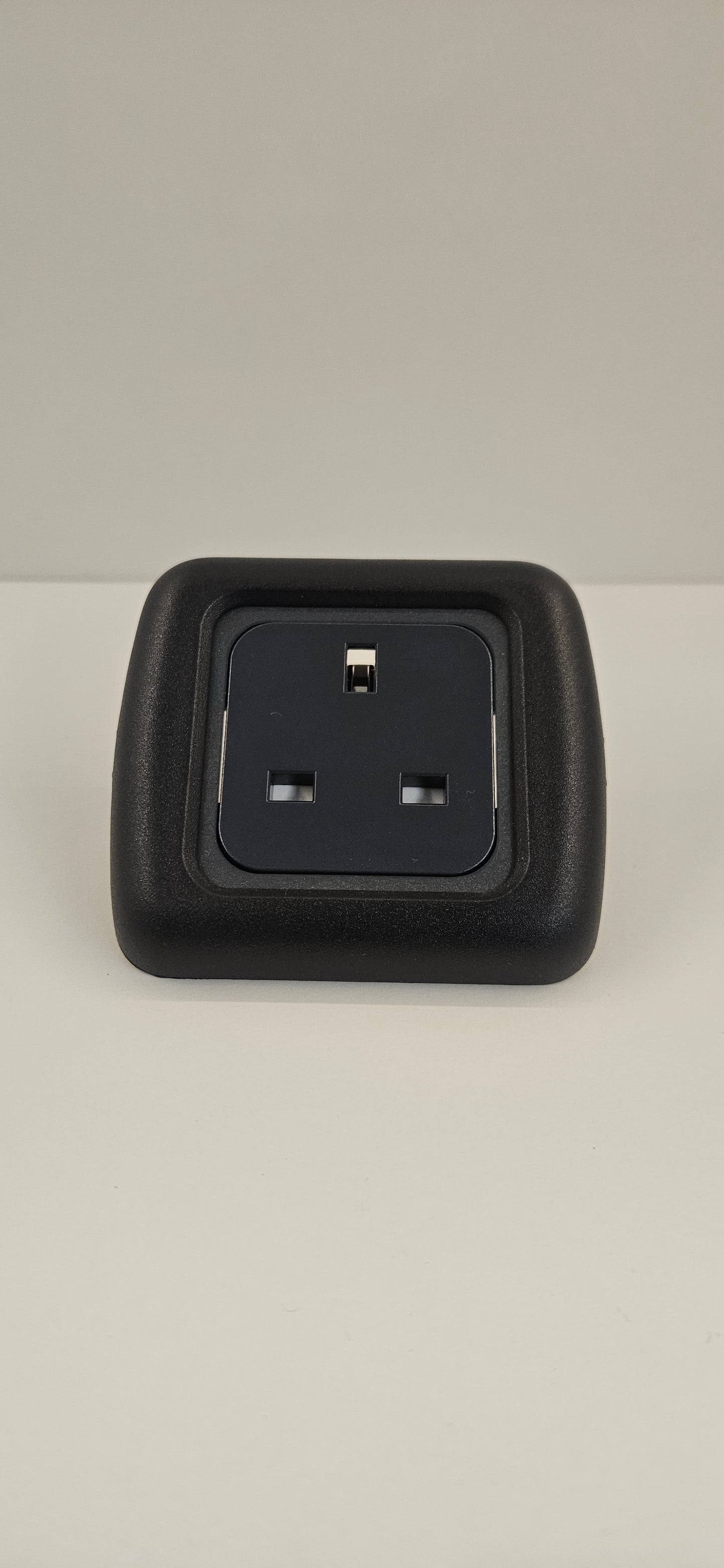

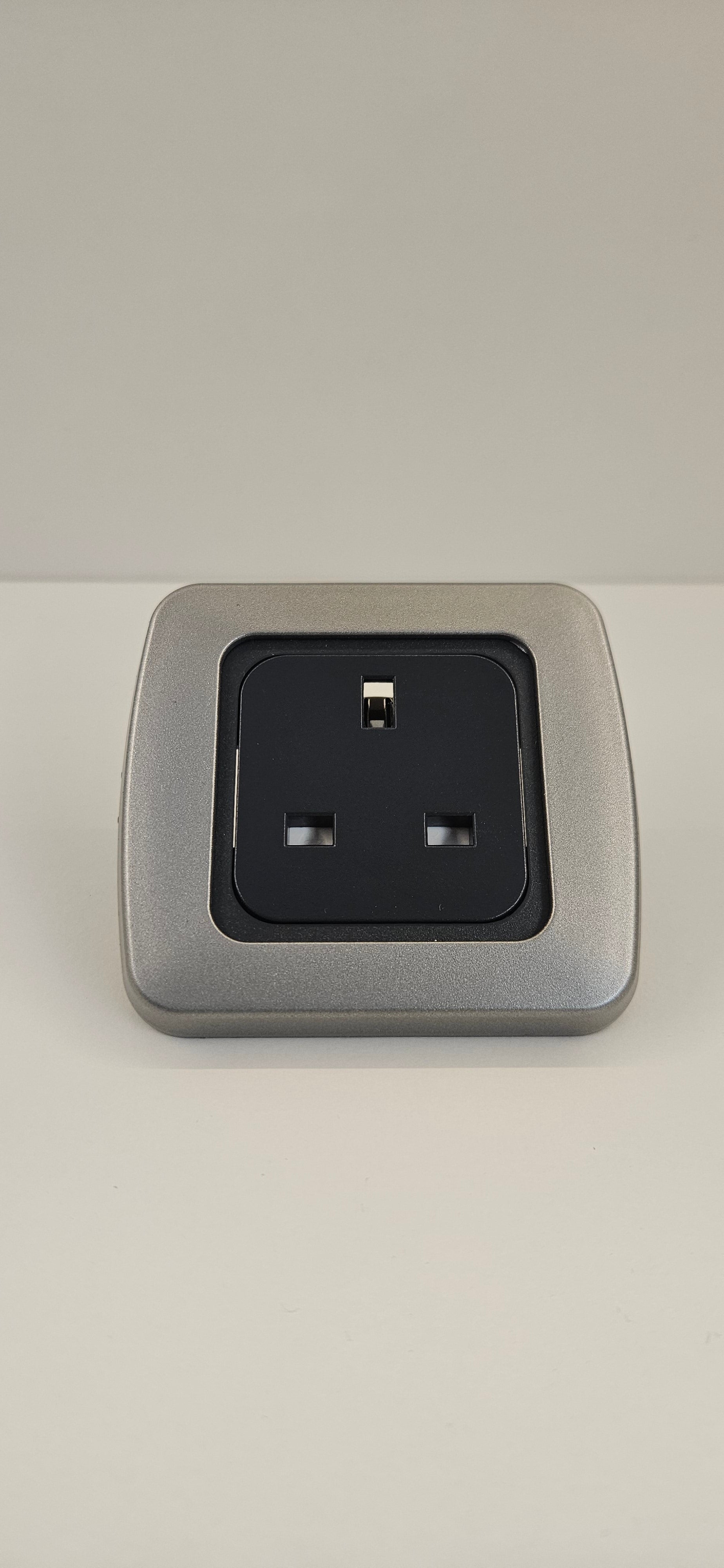

CBE C-Line single. 230V socket kit (silver or black)

CBE C-Line single 230V socket kit (silver or black)

Consists of 1x 230V plug socket.

Comes with 1x 34mm backbox (sockets can be installed with or without the backboxes)

Also includes silver or black CBE/C-Line surround as shown.

Connections: Screw terminals on rear. Accepts 1.5 or 2.5mm Arctic flex

The socket will obviously need wiring up to a consumer unit or 230V (also referred to as 240V) power source to function.

The surround frame is made of 2 two parts, the support frame screws to your cabinet/wall (screws included) and then the faceplate clicks into the support frame to give a sylish and clean look.

The single frame is 79mm x 79mm & 10mm deep

Note: Socket requires 25mm or greater depth for mounting. But if using the backbox a minimum of 38mm is required
