CBE C-Line triple. Light & water pump switch + Battery test + Master switch kit (silver or black)

CBE C-Line triple. Light & water pump switch + Battery test + Master switch kit (silver or black)

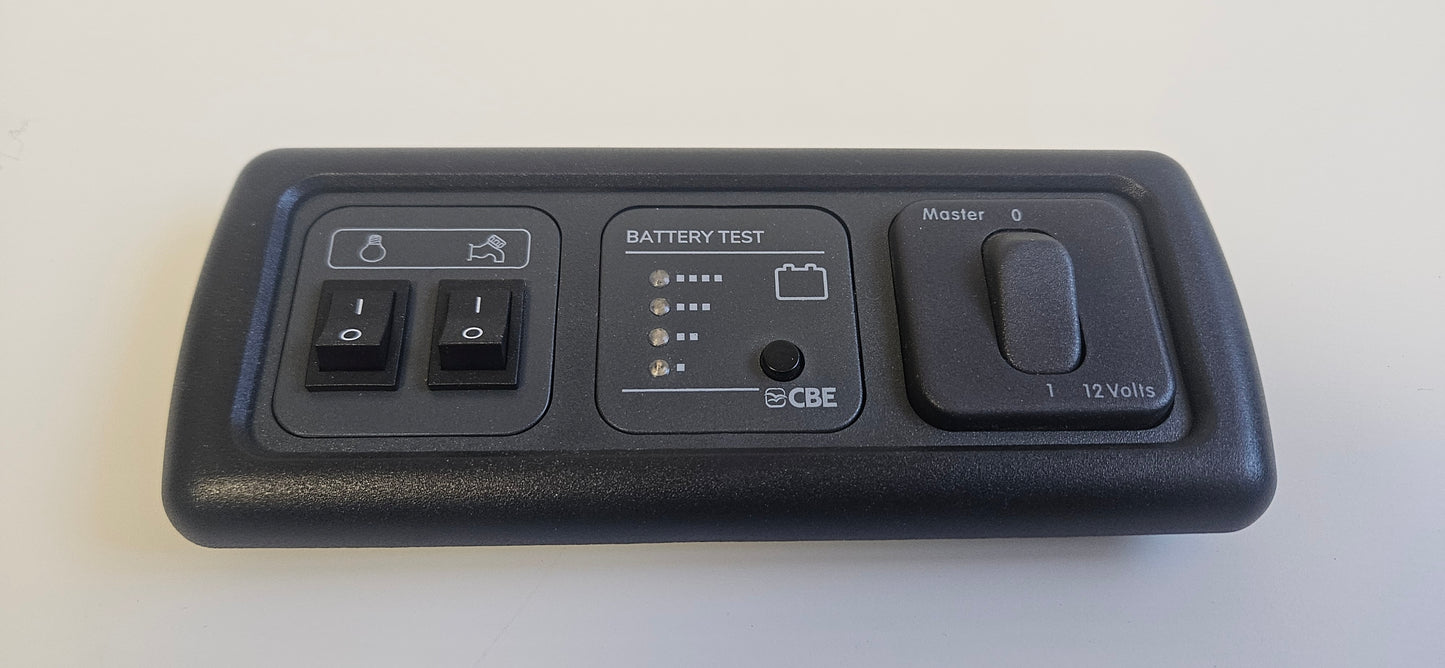

Consists of water pump toggle switch, light toggle switch + battery test panel + master on/off switch

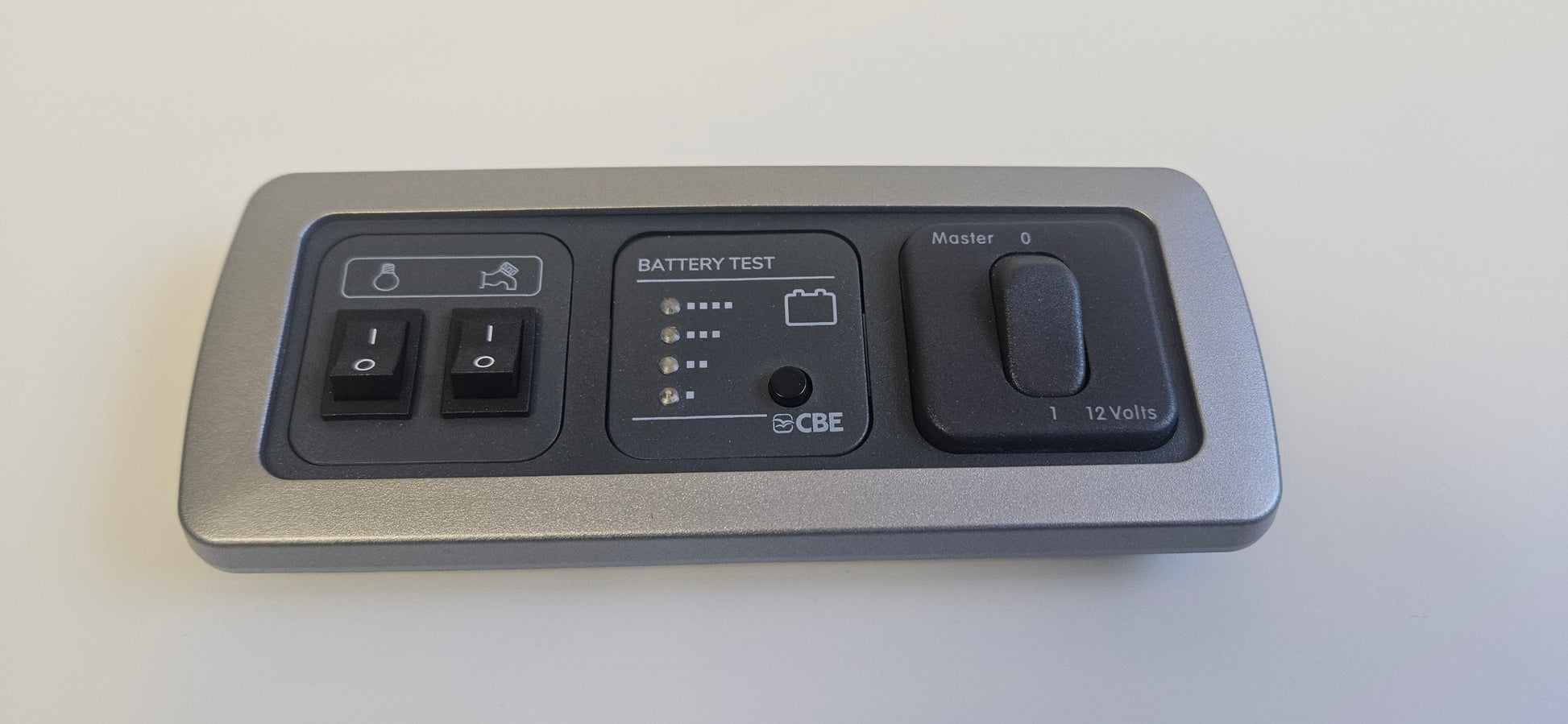

Also includes silver or black CBE/C-Line surround as shown.

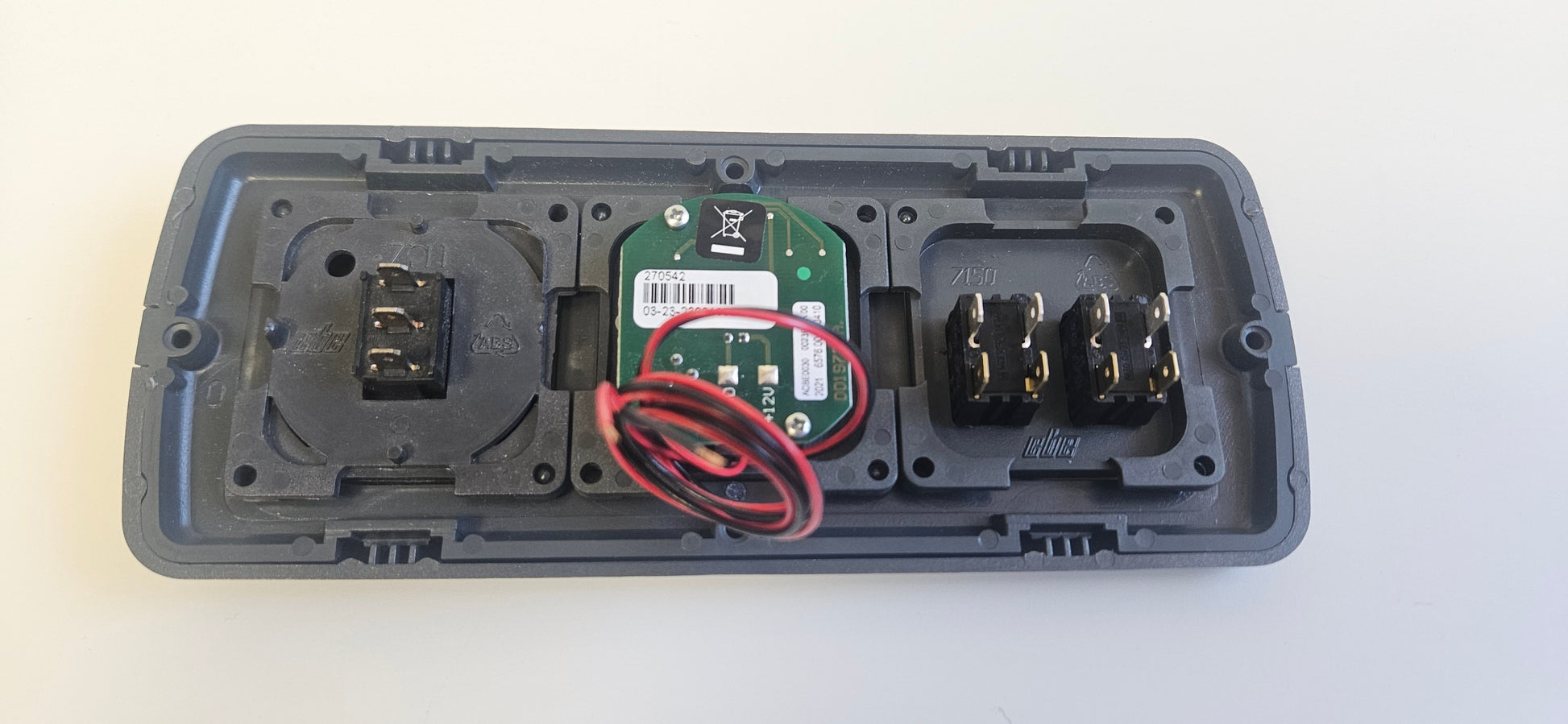

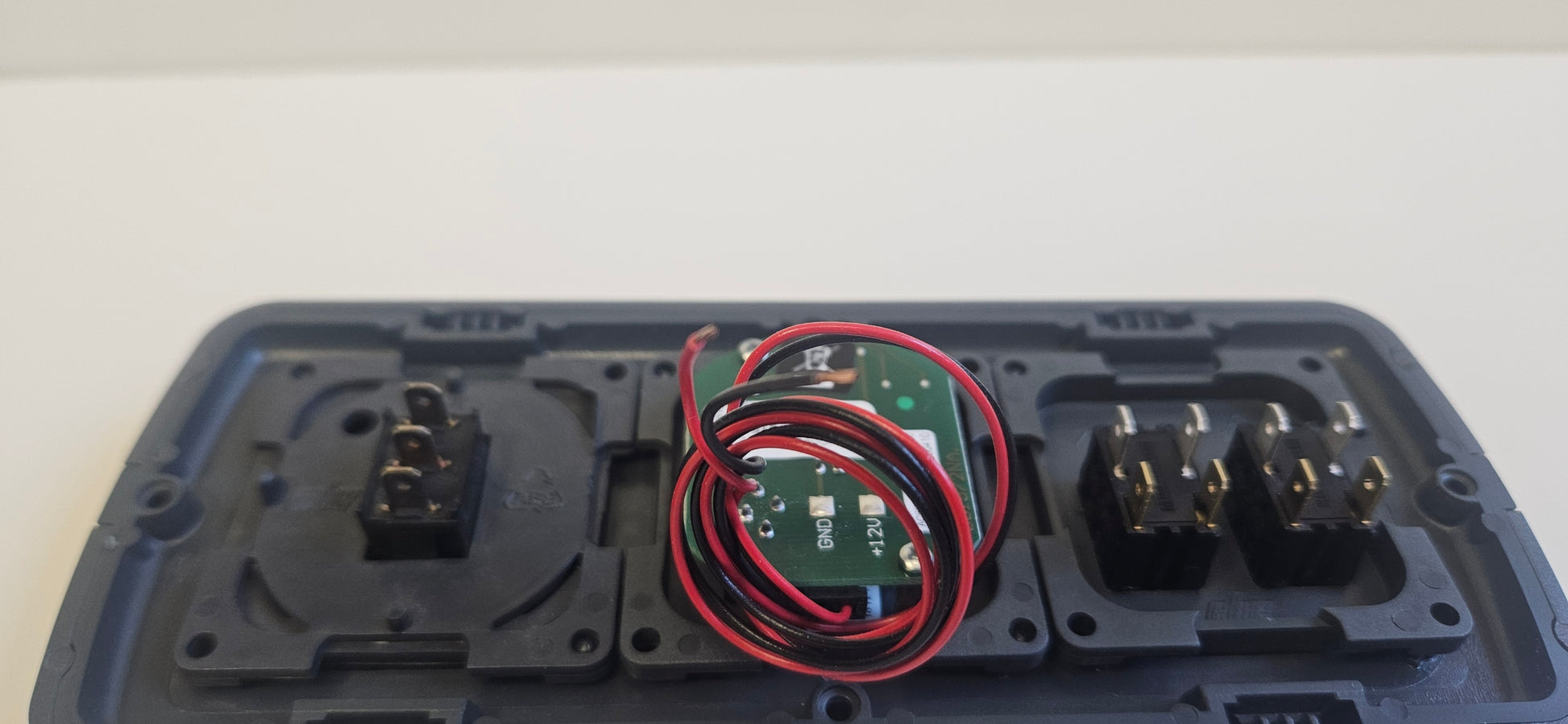

Connections: Crimp (female spades) on water pump / light switch and on master switch.

Crimp (inline) or Wago on battery test panel.

The battery test panel is simple to use, press the test button to display the battery level.

Green above 13V. Upper yellow above 12V. Lower yellow above 11V, Red below 11V

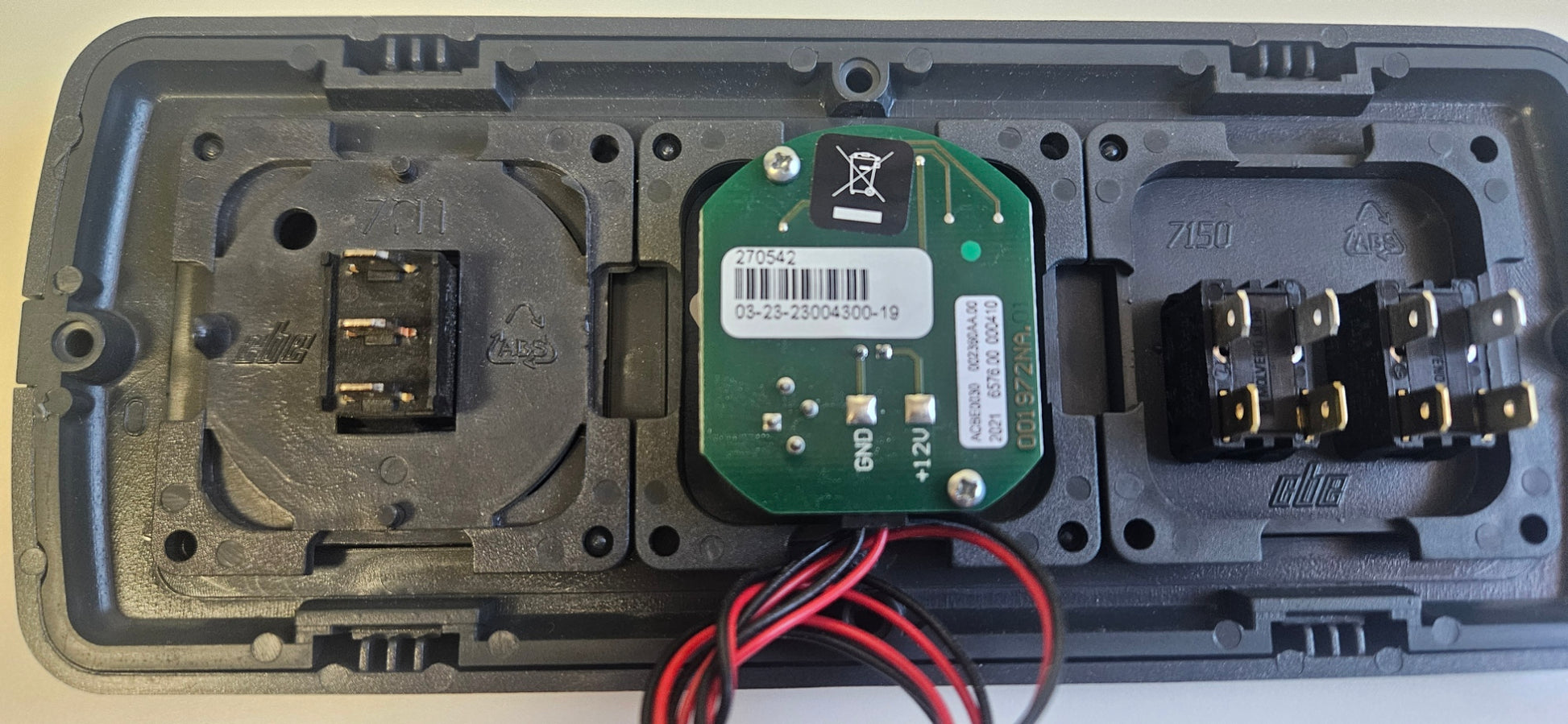

Two wires for connection to a suitable battery supply (leisure or engine starter battery).

The master switch can be wired to a relay to switch off the leisure battery. Supplied with red female crimps.

The water pump / light switch is supplied with red female crimps.

The surround frame is made of 2 two parts, the support frame screws to your cabinet/wall (screws included) and then the faceplate clicks into the support frame to give a sylish and clean look.

The triple frame is 193mm x 79mm & 10mm deep

Note: The switches requires 35mm or greater depth for mounting.
