CBE C-Line double. 12V 150A isolator + Battery test panel (silver or black)

CBE C-Line double. 12V 150A isolator + Battery test panel (silver or black)

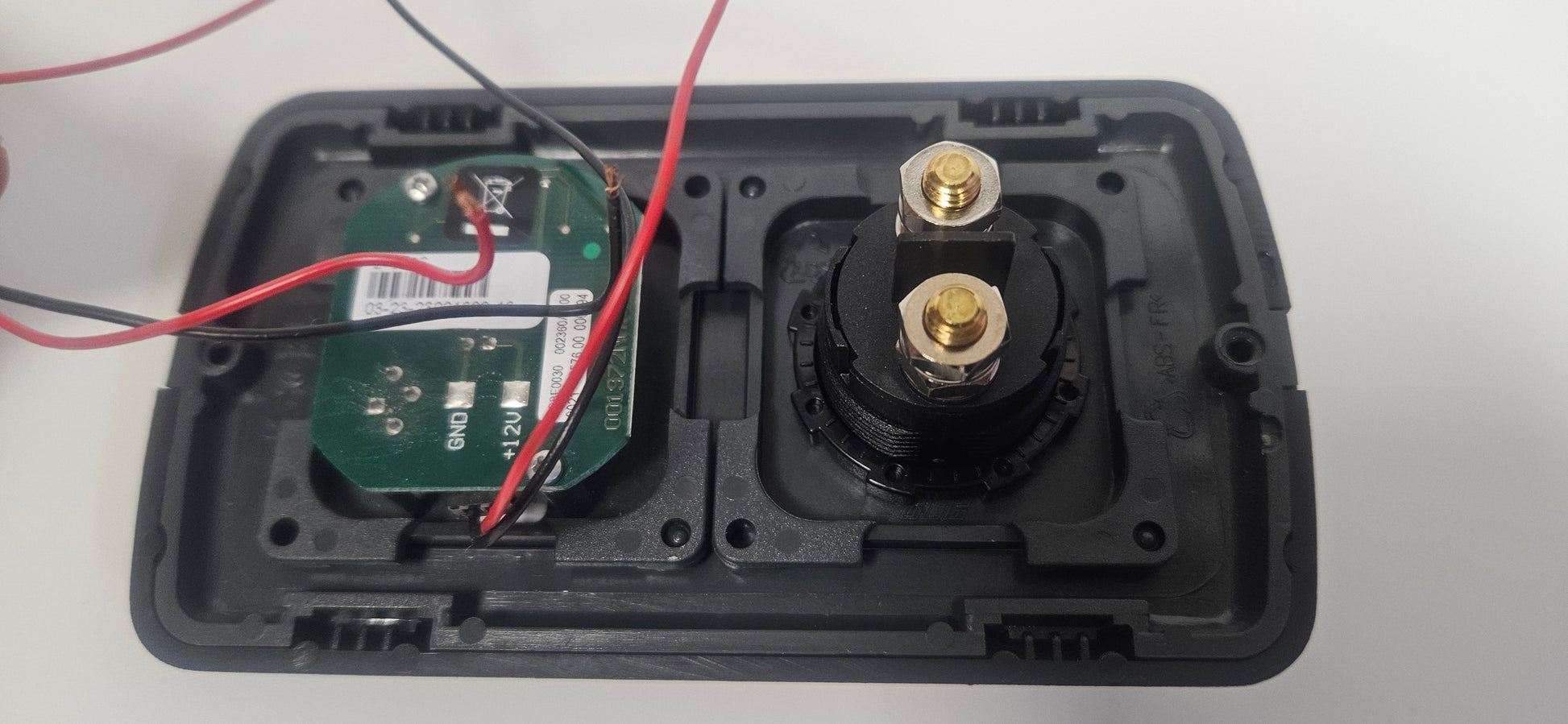

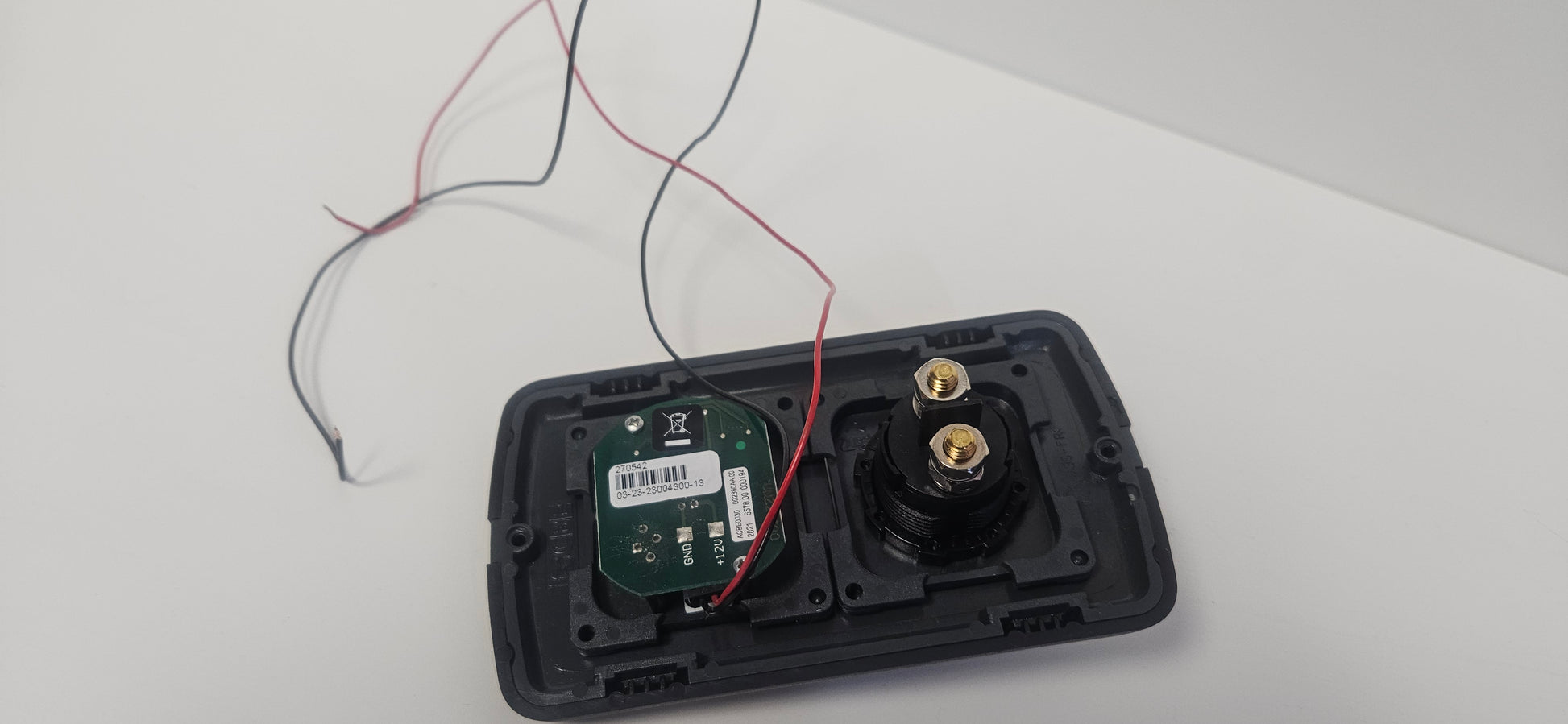

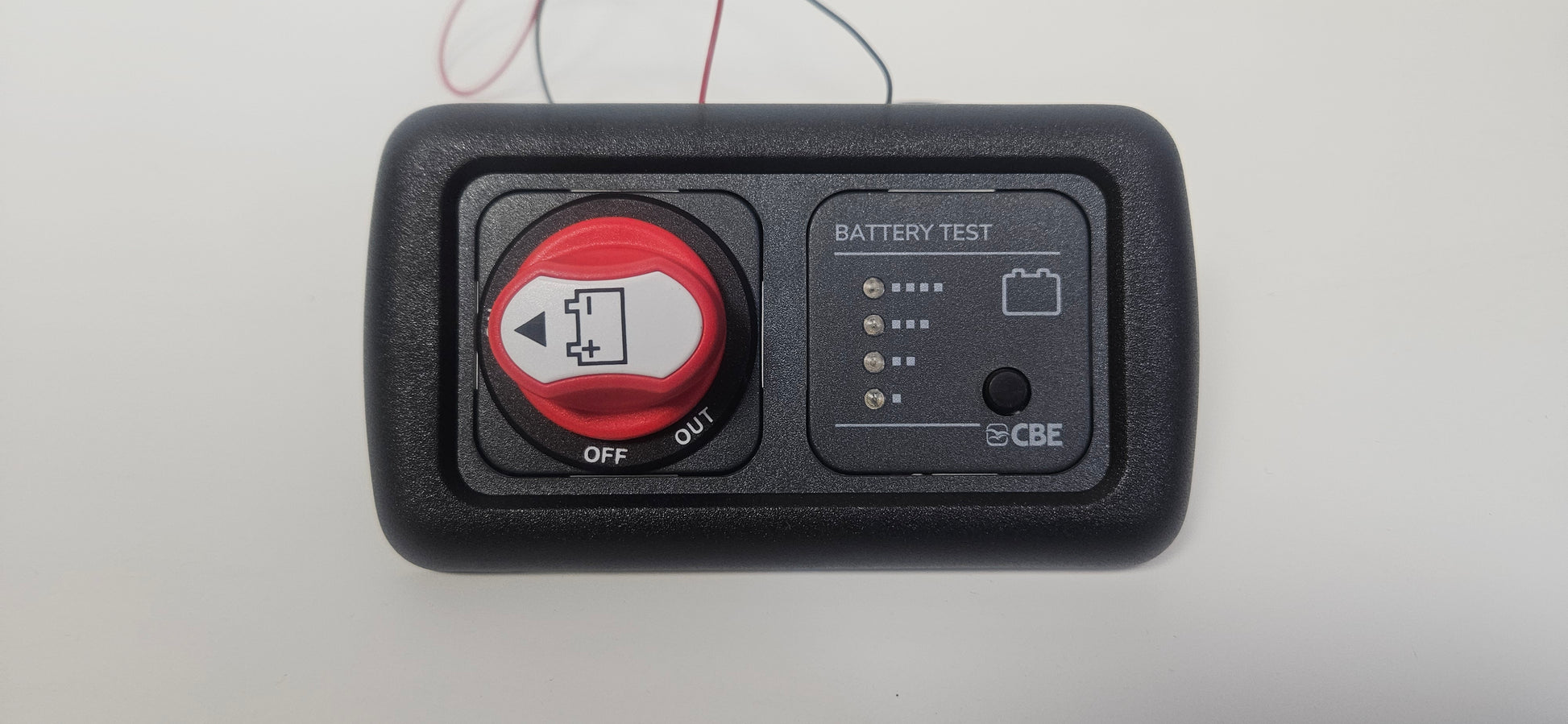

Consists of isolation switch + battery test panel.

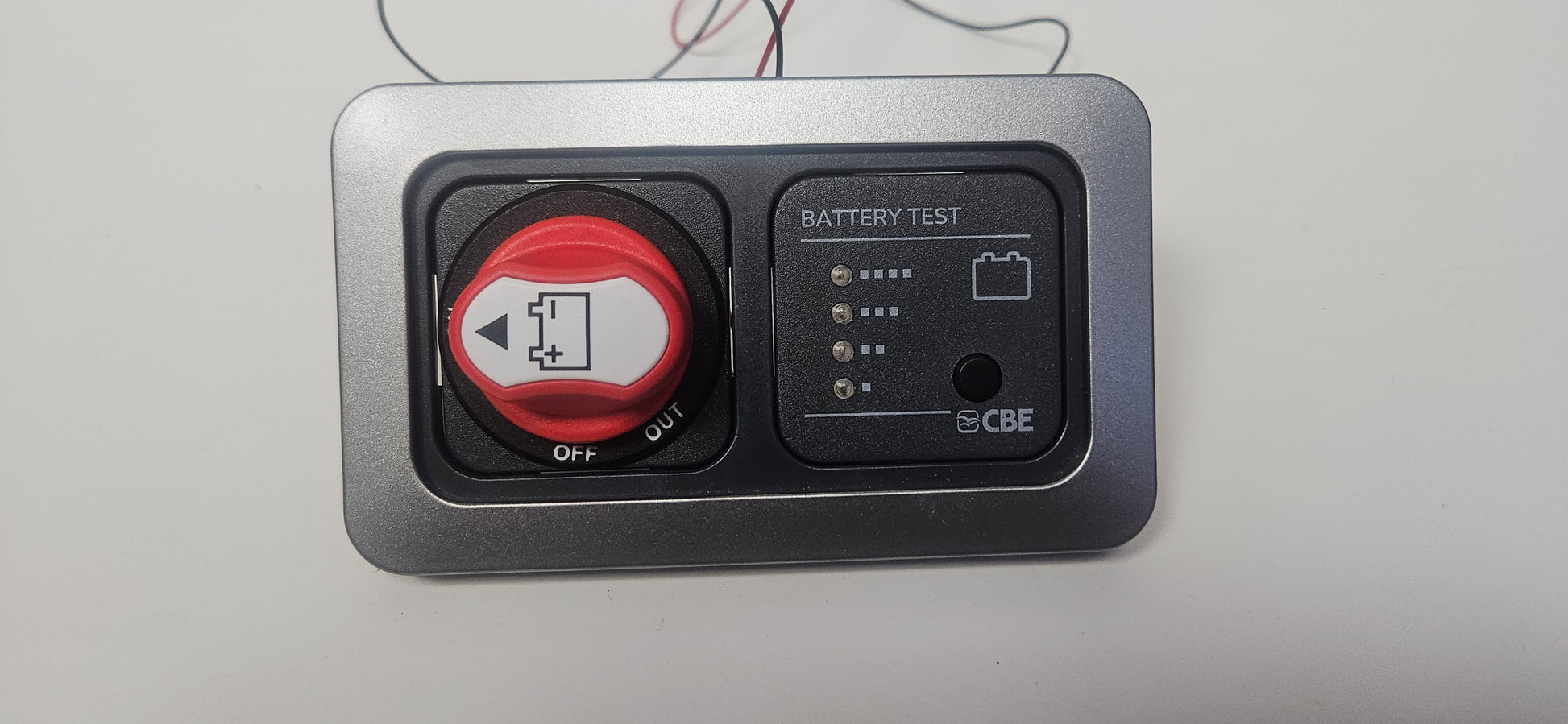

Also includes silver or black CBE/C-Line surround as shown.

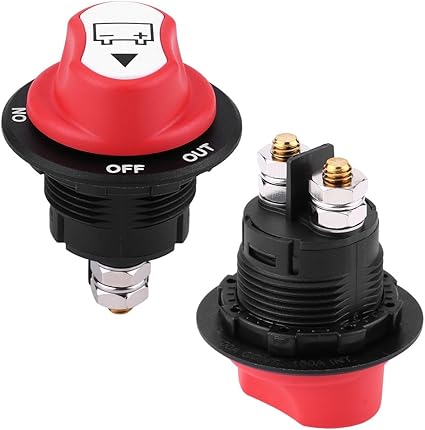

Battery isolator switch has 6mm stud terminals.

Rated at 100A 32V DC continuous current and 150A 32V DC cranking current.

Three switching positions of: ON and OFF and then the cap can be removed in the OUT position.

CBE dark grey battery test meter gauge

Simply press the test button to display the battery level.

Green above 13V. Upper yellow above 12V. Lower yellow above 11V, Red below 11V

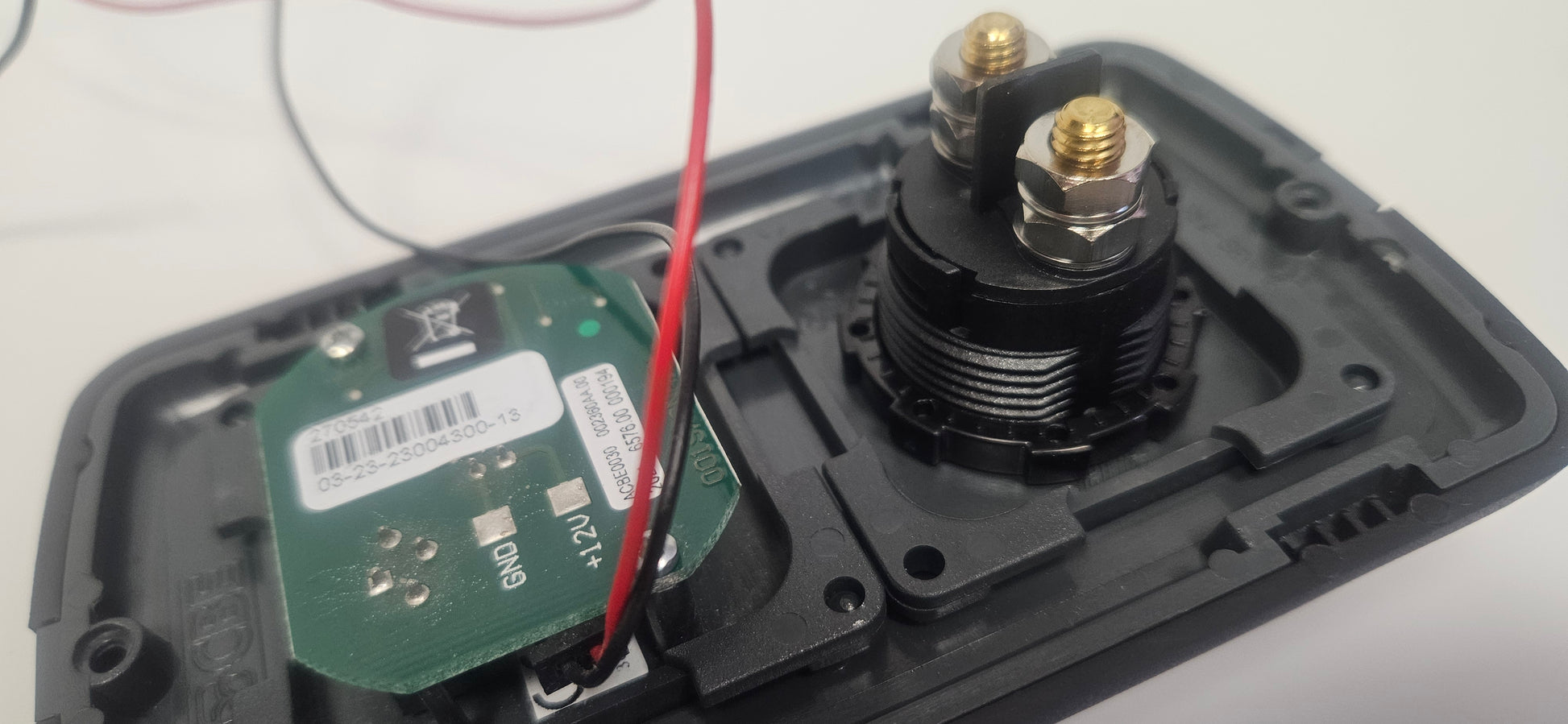

Two wires for connection to a suitable battery supply (leisure or engine starter battery)

The surround frame is made of 2 two parts, the support frame screws to your cabinet/wall (screws included) and then the faceplate clicks into the support frame to give a sylish and clean look.

The double frame is 140mm x 79mm & 10mm deep

Note: Isolator requires 35mm or greater depth for mounting.
