CBE C-Line double. 8 way fuse panel kit (silver or black)

CBE C-Line double 8 way fuse panel kit (silver or black)

CBE fuse holder for 8 fuses.

Consists of 2x 4-way fuse holders making a total of 8 fuse spaces.

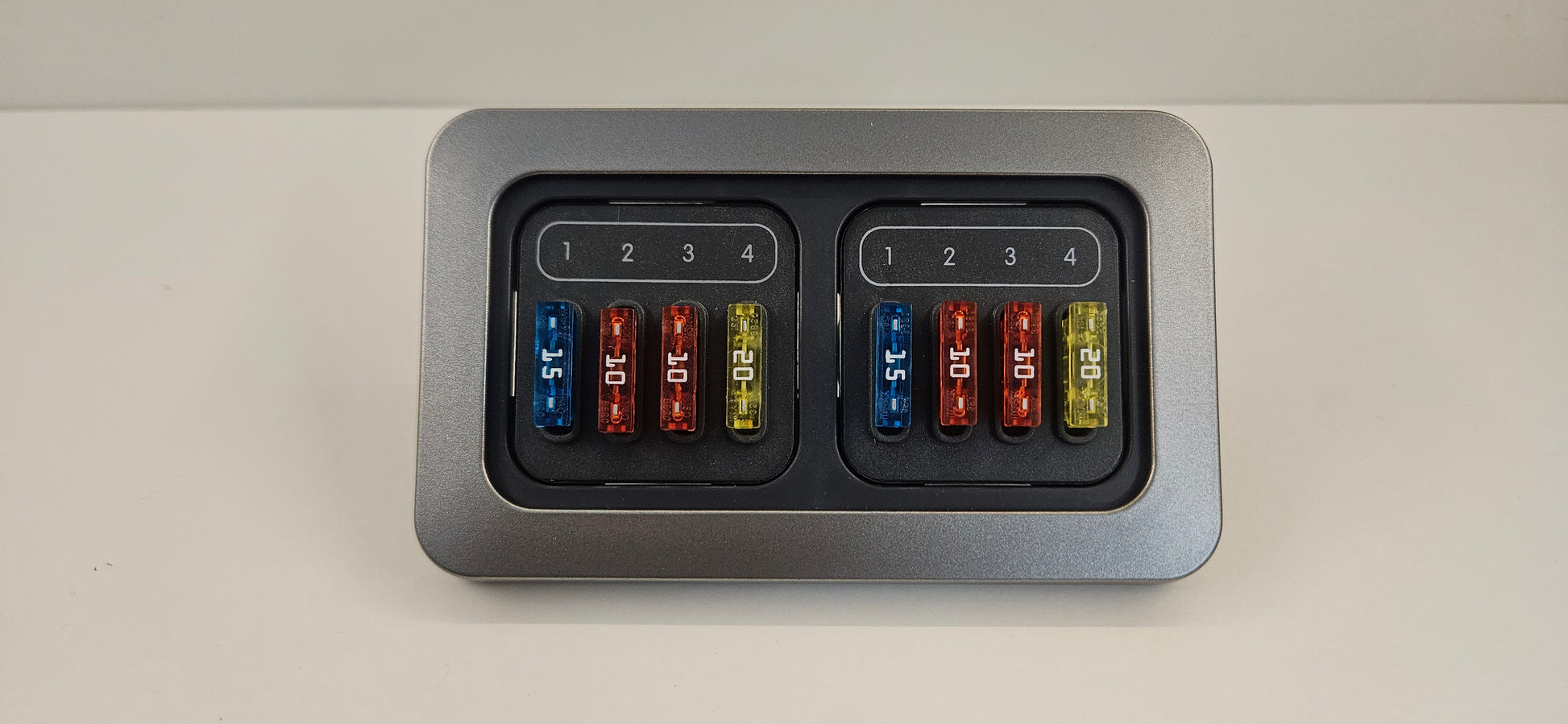

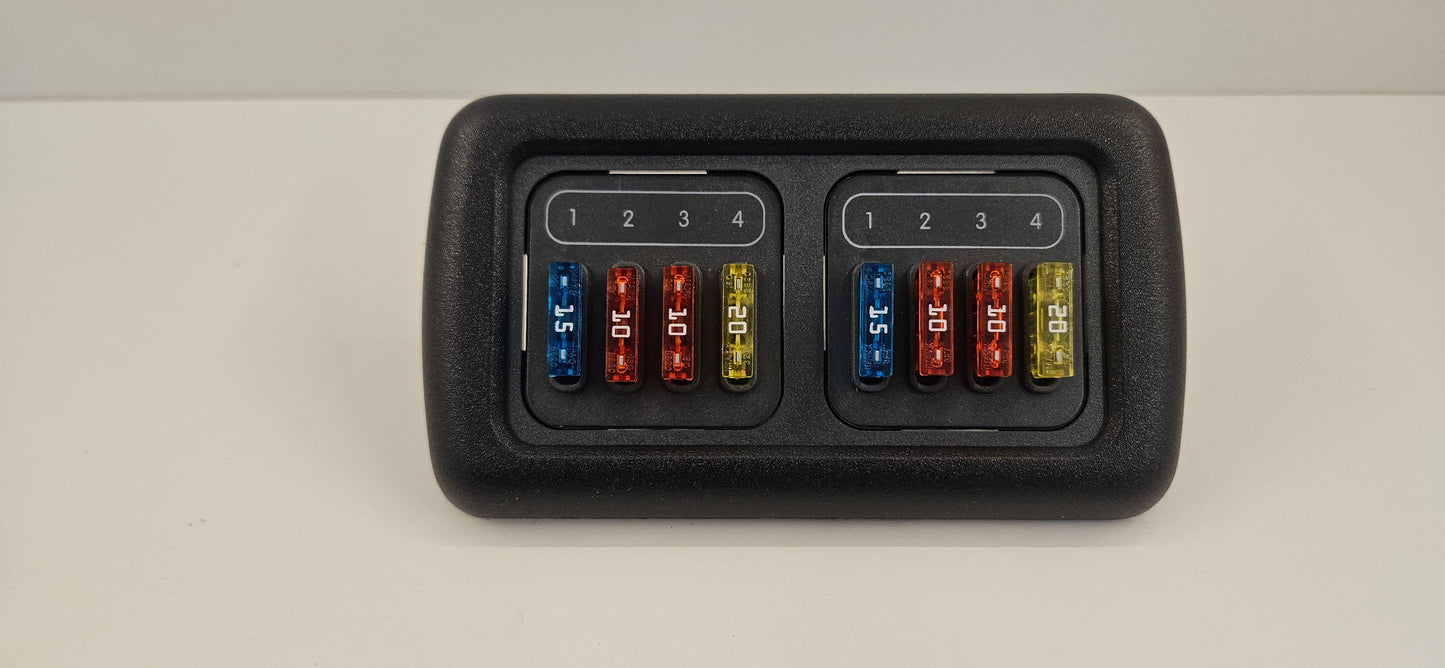

Also includes silver or black CBE/C-Line surround as shown.

Supplied with 8 fuses: 2x15a 4x10a 2x20a

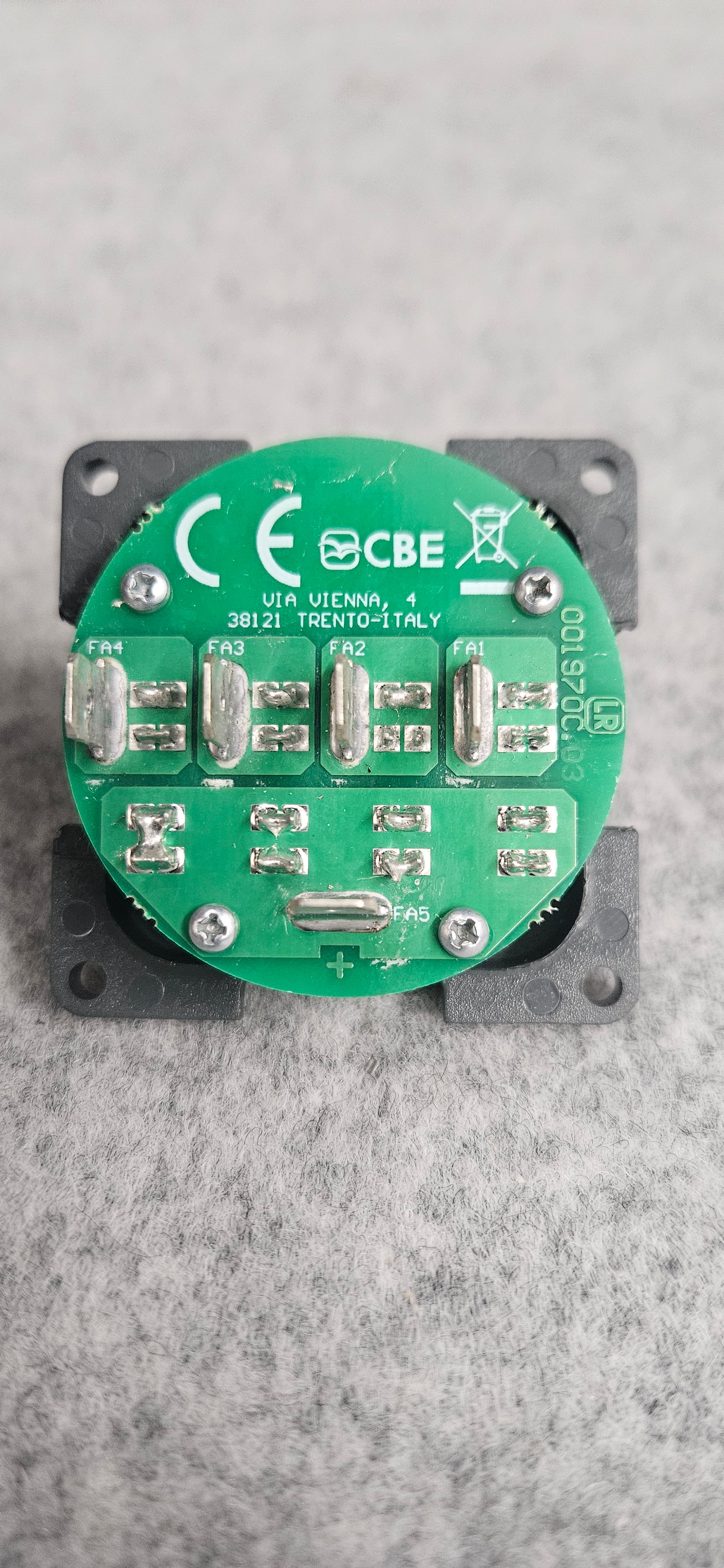

Connections: Lower spade connector is the feed in, the upper 4 spade connectors are the fused output feeds. A selection of crimps are included

The surround frame is made of 2 two parts, the support frame screws to your cabinet/wall (screws included) and then the faceplate clicks into the support frame to give a sylish and clean look.

The double frame is 140mm x 79mm & 10mm deep

Note: Fuse holder requires 38mm or greater depth for mounting
