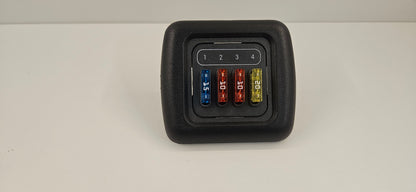

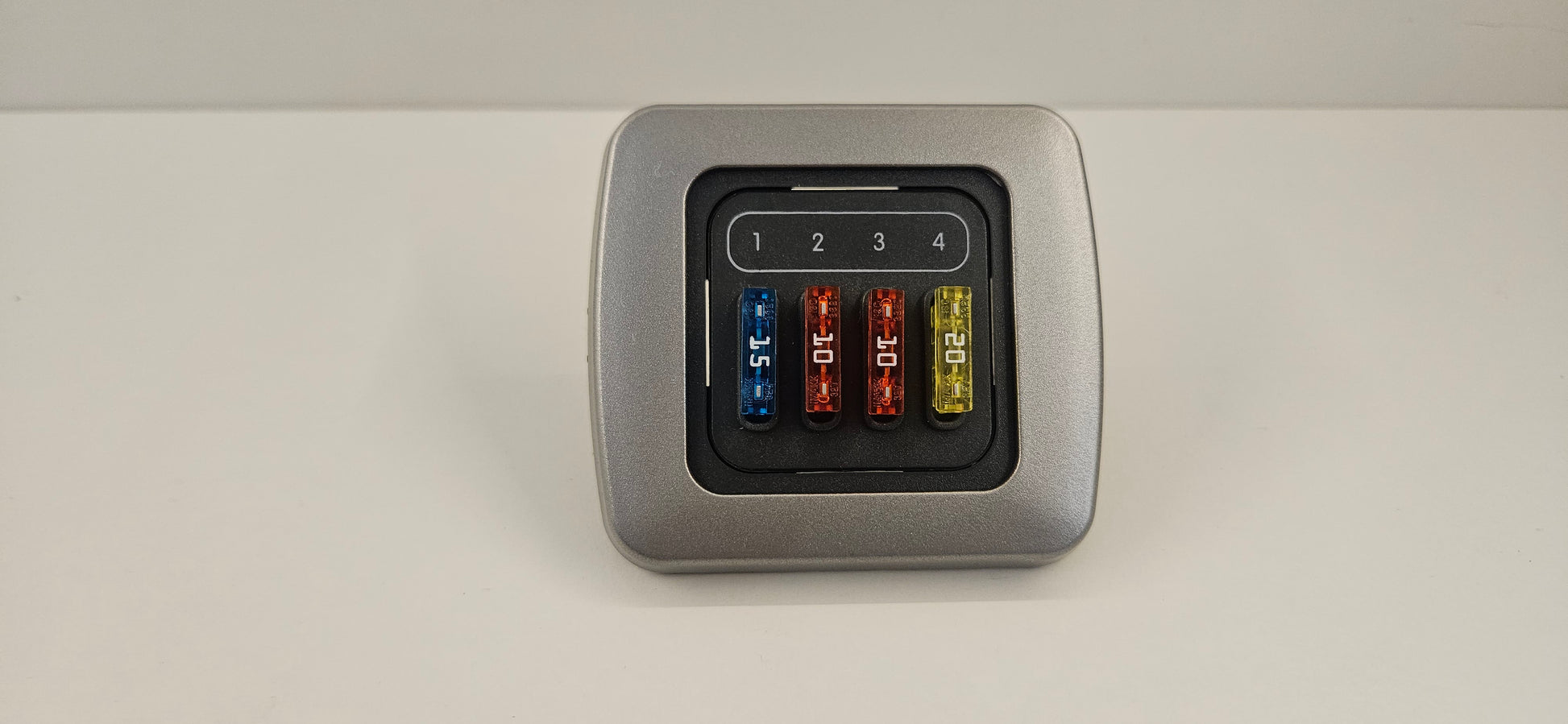

CBE C-Line single. 4 way fuse panel kit (silver or black)

CBE C-Line 4 way fuse panel kit (silver or black)

CBE fuse holder for 4 fuses.

Consists of 1x 4-way fuse holders making a total of 4 fuse spaces.

Also includes silver or black CBE/C-Line surround as shown.

Supplied with 4 fuses: 1x15a 2x10a 1x20a

Connections: Lower spade connector is the feed in, the upper 4 spade connectors are the fused output feeds. A selection of crimps are included

The surround frame is made of 2 two parts, the support frame screws to your cabinet/wall (screws included) and then the faceplate clicks into the support frame to give a sylish and clean look.

The single frame is 79mm x 79mm & 10mm deep

Note: Fuse holder requires 38mm or greater depth for mounting
