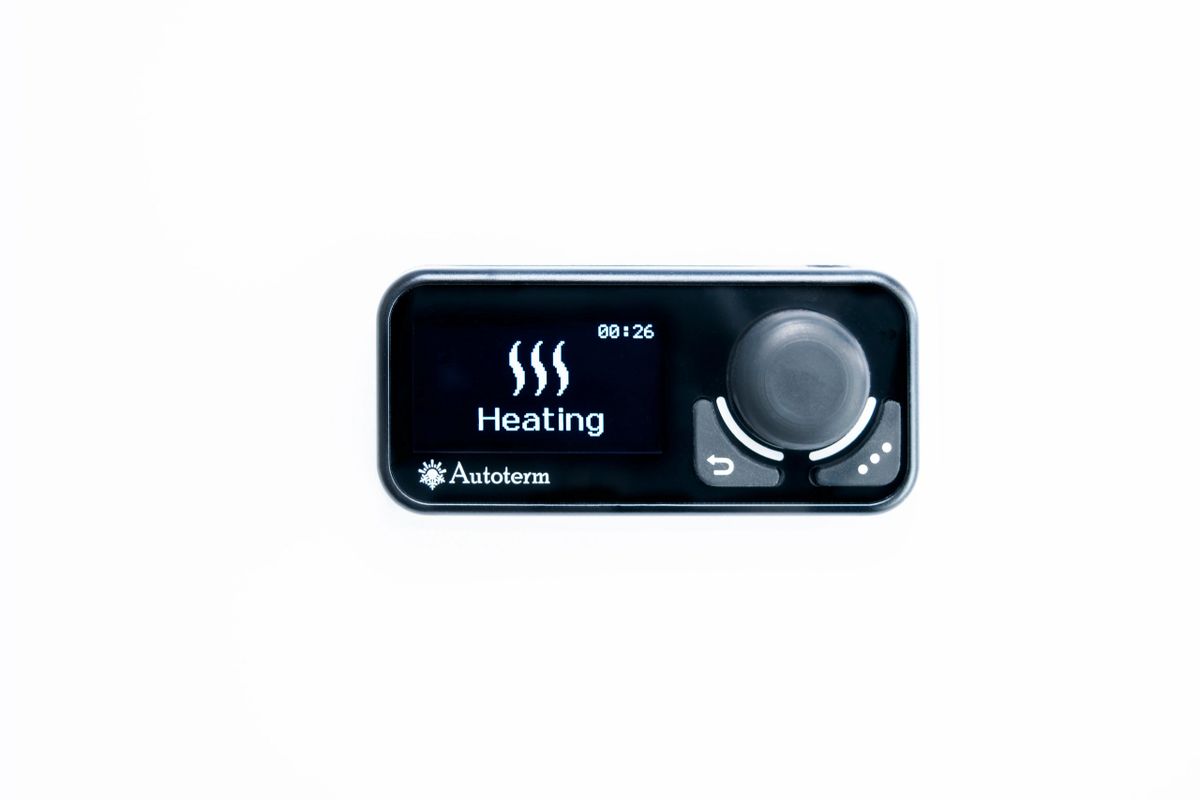

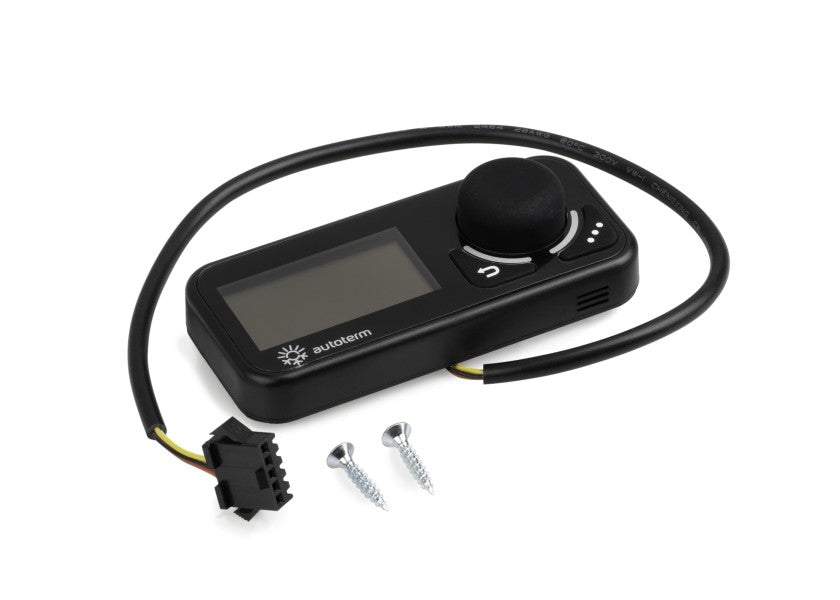

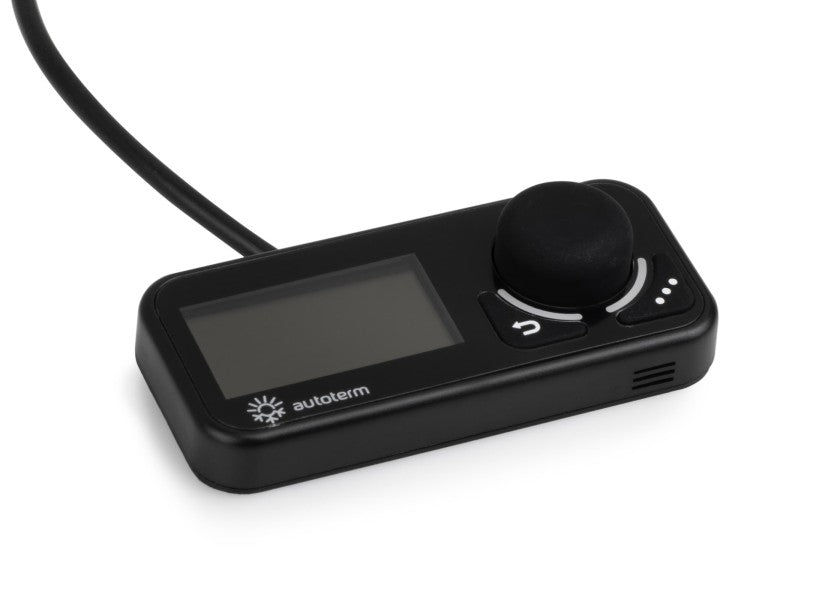

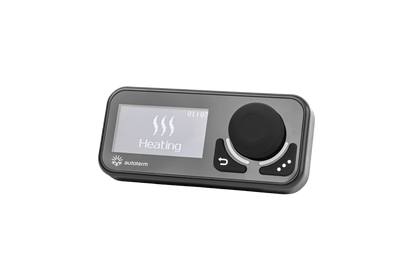

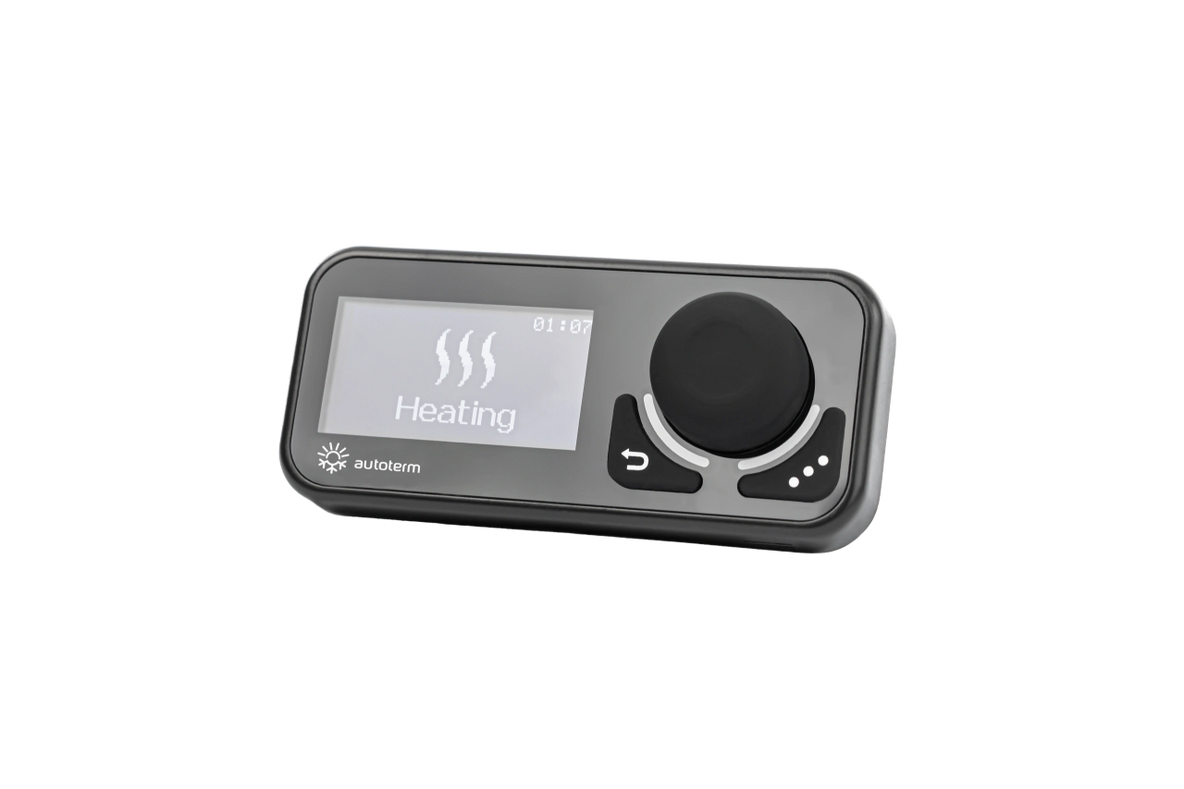

Autoterm diesel heater Comfort Controller

Works for the 2kw, 4kw and Flow 5kw diesel heater only.

What the Comfort Controller brings to the game:

• Intuitive user interface;
• LED status display.
• Thermostat function;
• Additional heating options;
• Quick access button for heating;
• Vehicle battery safety function;
• Heater maintenance reminder.
• Precise integrated digital temperature sensor.

TEMPERATURE MODE:

Heater will maintain set temperature by reducing the heating power, without shutting off the combustion process.

POWER MODE:

Heater will operate constantly at set power level.

HEAT + VENTILATION:

Heater will operate till the temperature is reached 1°C above the set temperature, shut off the combustion process and start to ventilate till the temperature drops 5°C below the set temperature. When temperature drops, heating starts again.

THERMOSTAT MODE:

Heater will operate till the specified temperature is reached then shuts off the combustion process and ventilation. After the temperature drops by specified degrees heating will start again.

Heating modes for liquid heaters

PRE-HEATING MODE:

Heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again.

ECO MODE:

(only for FLOW 14D)

Pre-heating mode with reduced power and fuel consumption. Temperature of the coolant is reached slower than in “Pre-heating mode.”

Temperature sensor

Custom calibrated digital sensor with +/- 1.5 degree offset.

Timers

Max - 3 timers.

Heating mode can be chosen for each timer.

All 3 timers can be active simultaneously.

Set timer is active continuously till disabled

Available cycles:

ED - Everyday

EW - Every workday

Custom days

Status display

Display

LED red - heating

LED blue - ventilation

LED green - shutting down

Display dimensions (mm)

37 x 20

Control panel dimensions (mm)

82 x 37 x 19
