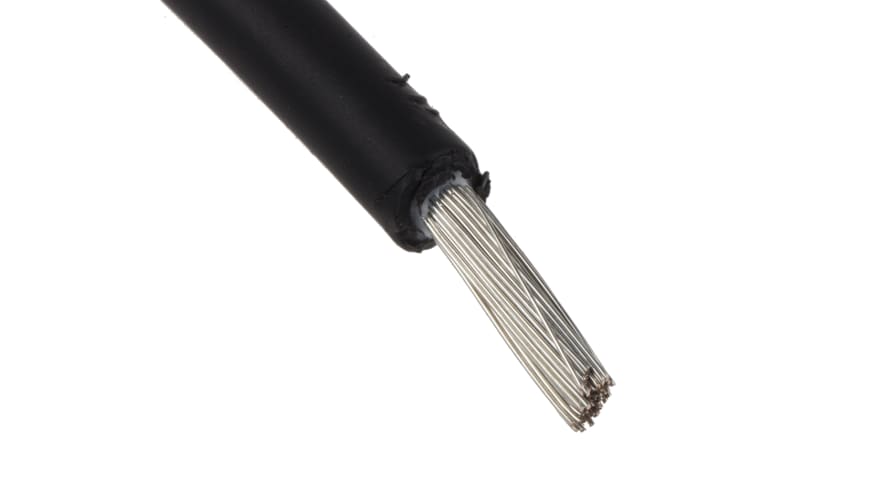

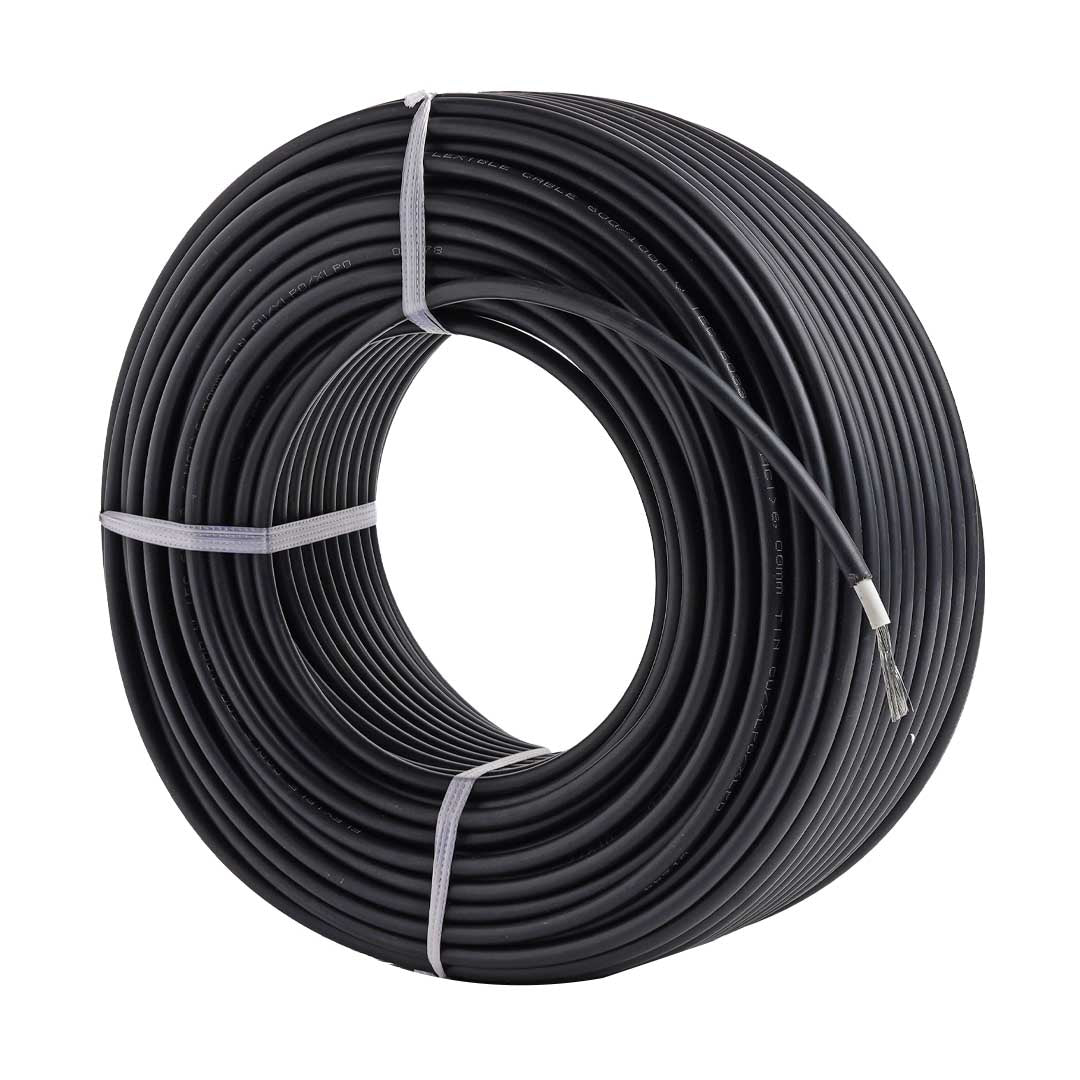

6mm PV tinned copper solar panel cable black (70Amp)

6mm² PV tinned copper solar panel cable black (70Amp)

Price per meter, will be supplied in one continuous length.

This 6mm² photovoltaic (PV) aka solar panel cable features a tough black outer sheath that is UV-resistant and designed to withstand a wide range of weather conditions, including intense heat, cold, and moisture. This ensures safe, reliable performance even in the most challenging outdoor environments.

Suitable for solar panel wiring Rated up to 70amps

Fully compatible with standard MC4 connectors commonly found on most solar panels.

• Conductor: tinned copper
• Colour: Black
• Cross section: 6.0mm²
• Strand configuration: 84/0.28mm
• Insulation thickness: 0.70mm
• Sheath thickness: 0.90mm
• Outer diameter: 6.2mm
• Voltage rating: 1.5kV DC / 1.0kV AC
• Conductor resistance: 3.39 Ohm/km (20°C)
• Rated current: 70A
• Ambient temperature: -40°C ~ +90°C
• Maximum conductor temperature: 120°C
• Insulation and Jacket: XLPE (E-Beam cross-linked compound, flame retardant, halogen free, UV and ozone resistant)
• Certifications: TUV, IEC 62930, H1Z2Z2-K
• RoHS & Reach conformity

We also offer custom, made to measure MC4 solar panel cables (click here)
