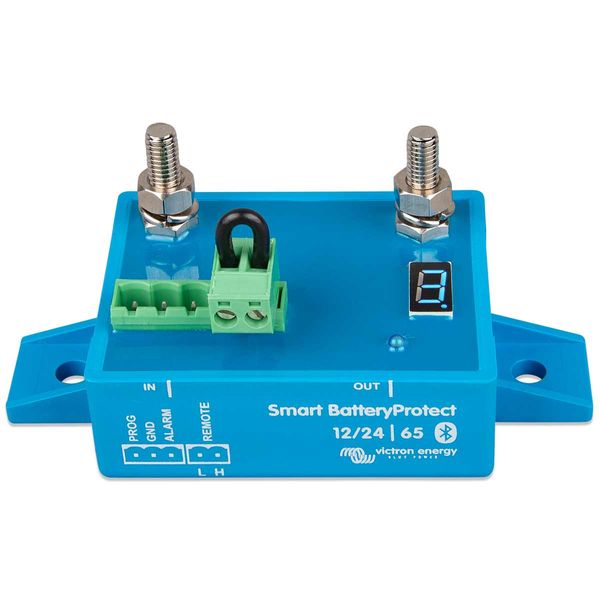

Victron BatteryProtect BP65 disconnects the battery from non-essential loads before it becomes completely discharged. It can be set to disconnect at several different voltages and a digital display is built in to indicate what setting has been selected. An alarm signal is also built in that can be used for an external buzzer/warning light, this alarm is triggered 90 seconds before disconnect. The battery protector unit automatically detects the system voltage (12V/24V) and has over-voltage protection built in. Continuous load rating 65A.
12/24V auto ranging
Programming made easy
Special setting for Li-ion batteries
Ultra low current consumption
Over voltage protection
Ignition proof
Delayed alarm output
Delayed load disconnect & delayed reconnect
NOTE: The battery protect can be used with all types of battery technology.
- Alarm output delay: 12 seconds
- Maximum load on alarm output: 50mA (short circuit proof)
- Load disconnect delay: 90 seconds (immediate if triggered by the VE.Bus BMS)
| Voltage | 6V - 35V DC |
| Rating | Electronics: IP67 (potted), Connections: IP00 |
| Height | 48mm (1.9") |
| Width | 55mm (2.2") |
| Depth | 106mm (4.2") |
| Weight | 0.2kg (0.5 lbs) |
| Consumption | On: 1.4 mA, Off / Low Voltage Shutdown: 0.9 mA |
| Operating Temperature | Full Load: -40°C to +40°C (up to 60% of nominal load at 50°C) |
| Amps | Max. continuous: 65A, Peak (during 30s): 250A |
| Connections | M6 |
