270w flexible solar panel with rear junction box (1390 x 710mm)

270w flexible solar panel with rear junction box (1390 x 710mm)

The perfect solar panel for camper vans with poptop roofs or the original metal roof.

270w solar panel reinforced with anodised aluminium and a strong ETFE surface. This additional reinforcement offers greater strength and resilience, making this one of the most robust semi-flexible solar panels available on the market

Made from monocrystalline solar cells.

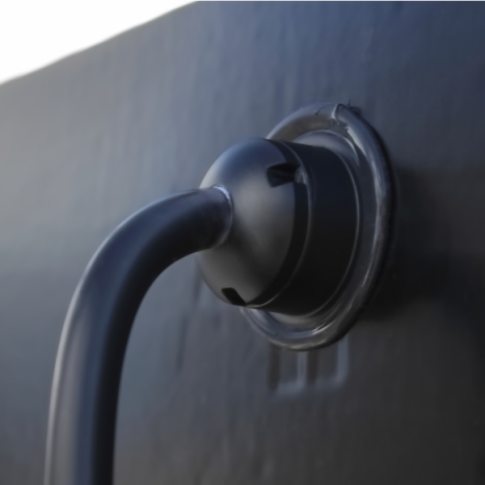

This model features a rear-fitted circular junction box and 3 meter dual core cable making installation simple.

This high efficiency 270W solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications, such as in a motorhome, caravan, camper power systems.

ETFE material has long been used in applications where durability and high-temperature resistance is required.

Simple, professional installation: This particular model features the junction box and cable on the rear side of the panel to create a completely level surface and professional finish after installation. The junction box on this solar panel is a circular shape with only one dual core cable (3m length) attached, allowing for simplified installation. Please note: in order for this panel to be flush-mounted, a recess must be cut in to the roof/surface.

Can be bonded to poptop roofs and metal roofs with 1 tube of Speedbond hybrid adhesive

Solar panel specifications:

• Peak power: 270W
• Maximum power voltage: 24.2V
• Maximum power current: 11.16A
• Open circuit voltage: 28.6V
• Short circuit current: 11.83A
• Dimensions: 1900 x 710 x 2 mm
• Weight: 5.00 kg

This panel comes with a 3 year warranty which covers material and production defects

If you are planning to use this solar panel to charge a 12V leisure battery or battery bank it will require a 20amp mppt charge controller

Buy the MPPT as an optional extra and save££:

30A Victron 100/30 SmartSolar MPPT Charge Controller

30A 12v dual battery solar charge controller DM Series

30A 12v dual battery solar charge controller DM Series and MT11 display
