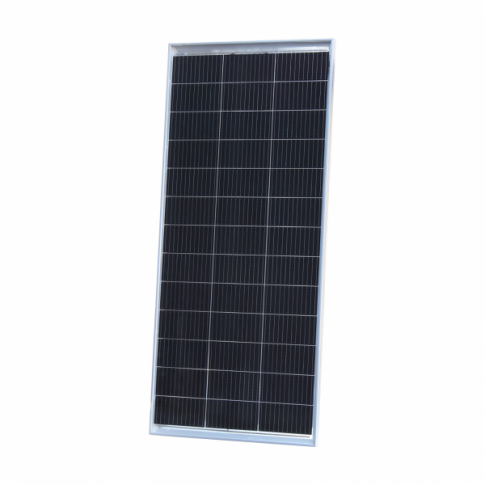

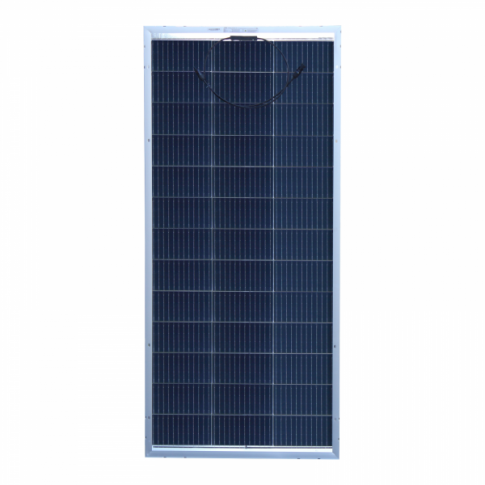

200w rigid solar panel (1480 x 670mm)

200w rigid solar panel (1480 x 670mm)

This high efficiency, waterproof, 200W bi-facial monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps).

This panel has bifacial solar technology to capture sunlight on both the front and rear surfaces, significantly increasing energy output by harnessing reflected light from the ground. The solar yield can be increased by up to 20% depending on the mounting angle and mounting surface. This panel is ideal for various installations, including ground-mounted systems, rooftops, and building-integrated photovoltaics, offering enhanced performance and durability.

The panel is fitted with 60cm of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection

• Peak power: 200W
• Maximum power voltage: 22.45V
• Maximum power current: 8.91A
• Open circuit voltage: 26.29V
• Short circuit current: 9.41A
• Power allowance range: +/- 3%
• Dimensions: 1480 x 670 x 30mm
• Weight: 10.5 kg
• 2 x 60cm of high quality single core solar cable 4.0mm cross section
• Male and female MC4 connectors


This product is covered by a 5 year workmanship warranty.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

If you are planning to use this solar panel to charge a 12V leisure battery or battery bank it will require a 20amp mppt charge controller

Buy the MPPT as an optional extra and save££:

20A Victron 100/20 SmartSolar MPPT Charge Controller

20A 12v dual battery solar charge controller DM Series

20A 12v dual battery solar charge controller DM Series and MT11 display
