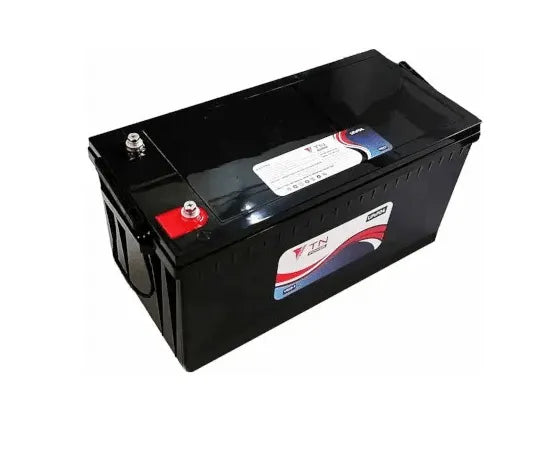

12v TN Power lithium iron phosphate (LiFePO₄) leisure battery 460Ah with Bluetooth

12v TN Power lithium iron phosphate (LiFePO₄) leisure battery 460Ah with Bluetooth

Part number: TN-LFP12460B

Product Features

Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

Built-in automatic protection for over-charge, over discharge, over current and over temperature. Free of maintenance .

Internal cell balancing.

Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

Replacement for lead-acid battery.

Wider temperature range:-20℃~60℃. Support for Series application expansion (up to 51.2V) or four in parallel.

Electrical Characteristics

Nominal Voltage 12.8V
Nominal Capacity 460Ah@0.2C
Min. Capacity 452Ah@0.2C
Nominal Energy 5888Wh
Internal Resistance ≤ 15mΩ
Cycle Life 6000 Cycles @ 92A Charging/Discharging 80%DOD cycle,Until 70% CapacitySelf Discharge ≤3.5% per month at 25℃
Bluetooth & Heating: With Bluetooth, No Heater

Operating Condition

Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity Discharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity Structure
Casing Plastic

Dimension

(L*W*H*TH) 523*269*218mm
Weight Approx. 39KgS
Terminal M8
Water Dust Resistance IP65
