12v TBB Power lithium iron phosphate (LiFePO₄) leisure battery with heating 105Ah

12v TBB Power lithium iron phosphate leisure battery with heating 105Ah

Part number: TBB-M12100

High-performance 105Ah 12V Lithium Iron Phosphate (LiFePO₄) battery, designed for superior safety, efficiency, and longevity. This "P" model is the newest generation of the battery featuring a built-in 200A BMS, low-temperature heating function, and parallel expandability. It is an ideal solution for energy storage in vehicles, marine applications, and off-grid power systems.

With an intelligent battery management system (BMS), the TBB-M12100 actively monitors and protects against common battery risks, ensuring stable and reliable operation.

Key Benefits of the TBB-M12100

Long Cycle Life: Provides up to 3,000 cycles at 25°C, 0.5C charge/discharge rate, far exceeding traditional lead-acid batteries.

High-Performance BMS: Offers full protection against:

• • Overcharging & over-discharging
  • Over-current & short circuits
  • High & low-temperature operation
  • Cell voltage balancing & cycle life tracking
•
• High Discharge Capacity: Supports a maximum 200A discharge current for high-power applications.
• Parallel Expandability: Supports up to 8 units in parallel, increasing total capacity to 12V 840Ah.
• Automatic Wake-Up: In shutdown mode, if an external charging voltage >14V is detected, the battery will automatically activate, enabling charging while preventing discharge.
• Low Power Consumption:
  • <50mA standby consumption when powered on
  • <0.1mA ultra-low standby draw when powered off
• Dry Contact Shutdown Control: Includes a dry contact port that allows users to completely switch off the battery, reducing power consumption to an absolute minimum—ideal for long-term storage or emergency cut-off.

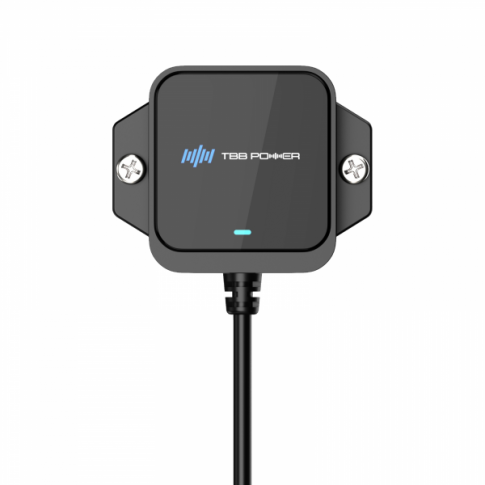

• Bluetooth Monitoring (Optional): Compatible with the TBB-DTU Bluetooth module, enabling wireless monitoring of key battery metrics such as SOC, voltage, current, and alarms through the TBB Battery mobile app
• Wide Operating Temperature: Functions from -30°C to +60°C, with excellent cycle life and discharge performance even at high temperatures.
• Integrated Low-Temperature Heating: When connected to an external power source (mains, solar, or vehicle engine), the built-in heating function automatically raises the battery temperature to allow safe charging and discharging. Heating from -20°C to +5°C takes approximately 30 minutes.
• Compact & Lightweight: Smaller and lighter than lead-acid alternatives, offering high energy density and space efficiency.

Battery specifications:

• Nominal voltage: 12.8V
• Nominal capacity: 105Ah
• Nominal energy: 1.34kWh
• Life cycle: 3000 cycles @100% DoD, at 25°C
• Recommended charge voltage: 14.2V
• Maximum charge current: 100A
• Recommended charge current: 50A
• Maximum discharge current: 100A (Continuous)/ 200A (13 minutes)
• Operating charge temperature: from 2°C to +60°C
• Operating discharge temperature: from -30°C to +60°C
• Humidity: 10-90% (RH)

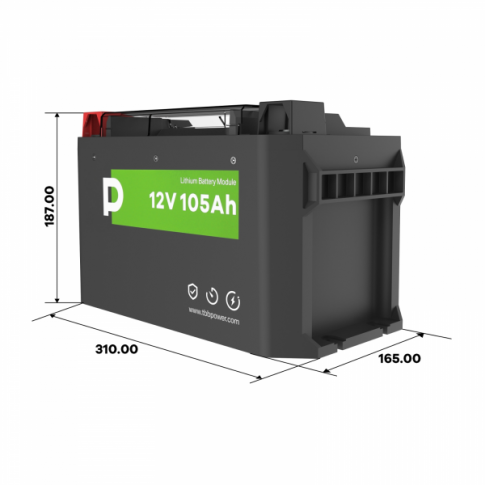

• Size: 310 x 165 x 187 mm
• Weight: 11kg

This product is covered by a 5 year warranty.
