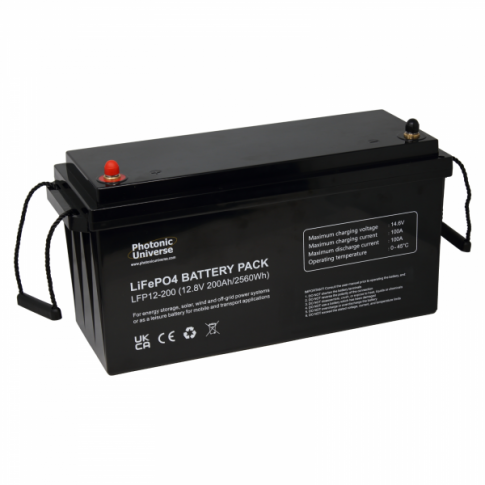

12v lithium iron phosphate (LiFePO₄) leisure battery 200Ah

12v lithium iron phosphate (LiFePO₄) leisure battery 200Ah

Part number: LFP12-200

200Ah 12V Lithium Iron Phosphate (LiFePO4) battery, offering exceptional reliability, safety, and long service life.

Features a built-in Battery Management System (BMS) that actively monitors and protects the battery for safe and efficient operation.

Additionally, the LFP12-200 includes Bluetooth connectivity via the XiaoXiangElectric app (available on IOS and Android), allowing users to monitor and manage battery performance in real time.

Key Benefits

Long Cycle Life – Up to 6,000 cycles at 80% depth of discharge, significantly outlasting lead-acid alternatives.

Enhanced Safety – The BMS protects against:

• • Overcharging
  • Over-discharging
  • Over-current
  • Over-temperature
•
• Fast Charging & Discharging – High efficiency reduces downtime.
• Lightweight Design – Much lighter than lead-acid batteries, making it easier to install and handle.
• Environmentally Friendly – Non-toxic, with a lower environmental impact.
• Bluetooth Monitoring – Connects via the XiaoXiangElectric app, offering:
  • Real-time battery data: Remaining capacity, charge/discharge status, voltage, current, temperature, and individual cell voltage.
  • Historical dynamic graphs: Track battery performance trends over time.
  • Charge & discharge switch control: Manage charging and discharging remotely.
  • Automatic equalization: Ensures balanced cell performance.
  • Clear warnings & capacity reset: Helps maintain battery health.
  • Customisable settings: Rename the Bluetooth device and switch monitoring between multiple batteries.



Deep Cycle Applications

The LFP12-200 is designed for deep cycle use, making it ideal for:

• Leisure Batteries – Caravans, motorhomes, campervans, and boats.
• Renewable Energy Systems – Solar and wind energy storage.
• Off-Grid Power – Lighting, telecommunications, networking equipment.
• Emergency Power – UPS systems and backup energy storage.



Longevity & Maintenance

With a lifespan of over 10 years, the LFP12-200 is a cost-effective, low-maintenance energy solution.

Packaging

Comes securely packaged with bolts, washers, and a user manual for easy installation.



The LFP12-200 combines cutting-edge lithium technology with smart Bluetooth monitoring, making it an excellent choice for modern energy storage needs.

Battery specifications:

• Nominal voltage: 12.8V
• Nominal capacity: 200Ah
• Nominal energy: 2560Wh
• Life cycle: 6000 cycles @80% DoD, at 25°C
• Recommended charge voltage: 14.6V
• Maximum charge current: 100A
• Recommended charge current: 20A
• Maximum discharge current: 100A
• Operating charge temperature: from 0°C to +45°C
• Operating discharge temperature: from -20°C to +55°C
• Humidity: 5-95% (RH)
• Altitude: <4000m
• Size: 502 x 186 x 243 mm
• Weight: 23kg



This product is covered by a 5 year warranty.
