10 way blade type fuse holder with LED indicator

10 way blade type fuse holder with LED indicator

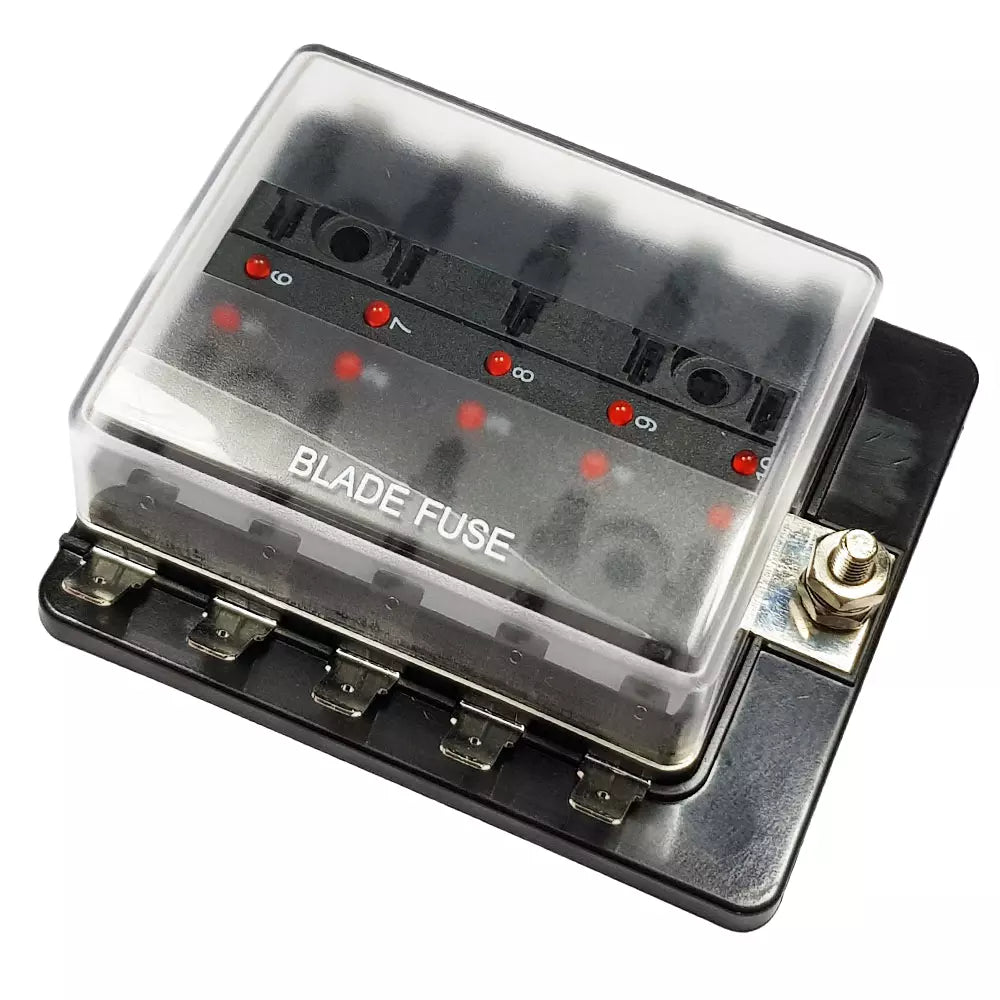

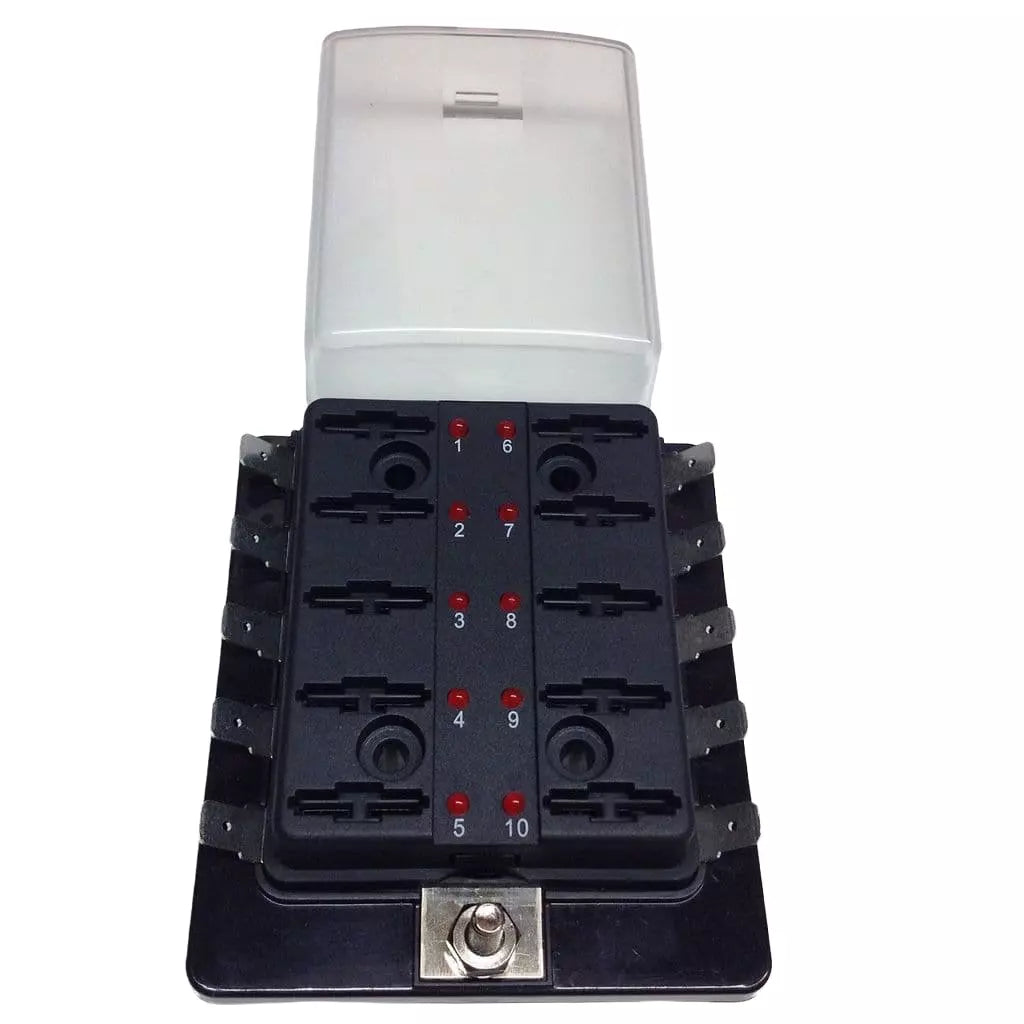

High quality covered fuse box perfectly suited to motor home and campervan applications. This fuse holder has a single 10 pole power distribution circuit with the added benefit of a warning LED indicator to show if a fuse has blown.

Accepts standard Blade Fuses.

Specifications:-

• Dimensions (LWH): 138.3 x 103.3 x 40.5mm
• Minimum Temperature: -20 °C (-4 °F)
• Maximum Temperature: 85 °C (185 °F)
• Weight: 0.2 kg
• Voltage: 6, 12, 24, 32v Maximum
• Current: 100a per Block, 30a per Fuse Maximum
• Circuits: 1x 10-Pole Positive Circuit
• Fuse Type: Standard Blade Fuse (max 30a)
• Connections IN: 1x M5x0.7
• Connections OUT: 10x 1/4" (6.3mm) Spade Terminals
• Busbar IN: 10x M4 Screws
• Busbar OUT: 1x M5x0.7
• Mounting: 4x M5 Cap Head
• Base Material: Polybutylene Terephthalate (PBT)
• Mounting: Clear Polycarbonate
