165W ETFE semi-flexible solar panel (1500 x 660mm)

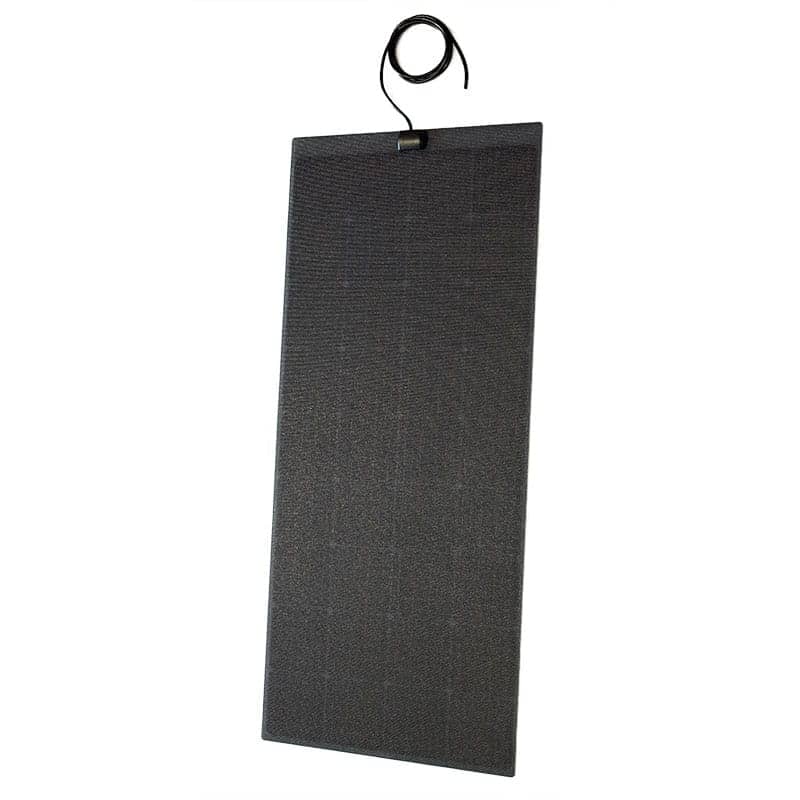

165W ETFE semi flexible solar panel provides efficient power generation with 156 high-efficiency monocrystalline silicon cells. It performs well even in low light, making it perfect for charging batteries and powering off-grid appliances.
This panel features a 0.025mm ETFE coating for enhanced durability, UV resistance, and self-cleaning properties. Its flexible design allows bending up to 30 degrees, suitable for slightly curved surfaces like camper roofs or boat decks.
Designed with an IP67 waterproof junction box, it is built to withstand tough outdoor environments. The KPE back sheet adds to its durability, while the lightweight and slim profile makes it easy to transport and install.
The panel comes with a 1.5m cable (2× 2.5mm²) and MC4 connectors for quick and secure connections. It is designed without eyelets, maintaining a sleek and clean appearance.
| Specification | Details |
|---|---|
| Power Output (Pmax) | 165W |
| Open-Circuit Voltage (Voc) | 23.6V |
| Short-Circuit Current (Isc) | 9.07A |
| Voltage at Pmax (Vmp) | 20V |
| Current at Pmax (Imp) | 8.25A |
| Power Tolerance | ±3% |
| Maximum System Voltage | 500V |
| Dimensions | 1500 x 660 x 2.5 mm |
| Cable Length | 1.5m (2× 2.5mm²) with MC4 Connectors |
| Type of Solar Cells | 156 Monocrystalline Silicon Cells |
| Bending Angle | Up to 30 degrees |
| Block/Bypass Diode | 1 pcs (10A for each) |
